| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Certification: |
CE |
Product Description

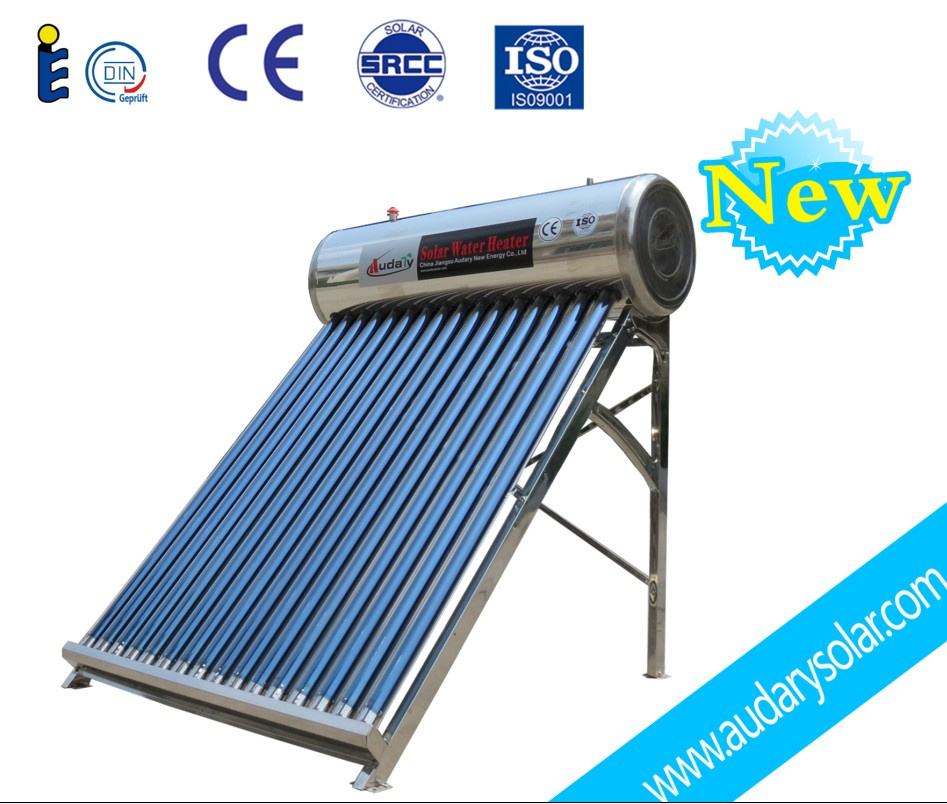

Solar water heater
(1) CE, ISO, SGS, solar keymark
(2) Low pressure, reasonable price
(3) High Quanlity&Reasonable Price
We are a professional solar water heater manufacturer with SOLAR KEYMARK and SRCC certificate in Nantong, Jiangsu Province, China.
Solar water heater
ADL6018 series is low pressurized solar water heater
Specification:
1) SUS304-2B stainless steel
2) Vacuum heat-collecting tubes at high temperature with new triangle elements
3) A long time of heat preservation
4) Specially fitting in the areas of acid rain, seawind erosion by salt and bad weather conditions
5) Stable and reliable performance, well wind resistance
6) Patent protected collision from the side bracket resistant design
7) Meeting the requirement of washing clothes, abstersion and bathing
8) Meeting the demand of well-to-do families
Specifications:
1) Thickness of bracket: 1.5mm
2) Glass vacuum tube: 58mm x 1.8m x 10PCS - 36PCS
3) Inner tank: SUS304-2B food grade stainless steel, 0.4mm
4) Outer tank: SUS304-2B stainless steel or color steel, 0.4mm
5) Capacity: 120/150/160/180/240/300/360L
6) Insulating layer thickness: 50mm
7) Inner tank thickness of: 0.4mm - 0.5mm
8) Tank diameter: 460mm
9) Pressure: 0 PA
10) Heat preservation: 72hrs
11) Hail resistance: 25mm
|
Vacuum tubes: |
|
|
Structure: |
All-glass double-tube co-axial structure |
|
Material: |
High borosilicate 3.3 glass |
|
External pipe diameter and thickness: |
Φ =58mm, 1.6mm |
|
Internal pipe diameter and thickness: |
Φ =47mm, 1.6mm |
|
Absorbing coating: |
Al-N/Al, Al-N/SS/CU |
|
Vacuum tightness: |
Vacuum tightness: |
|
Thermal expansion: |
3.3*10-6/° C |
|
Absorptance: |
> 95% |
|
Emittance: |
< 8% |
|
Stagnation temperature: |
> 220° C |
|
Wind resistance: |
30m/s |
|
Freezing resistance: |
-35° C |
|
Hail resistance: |
25mm |
|
Lifetime: |
15 years |
|
|
|
|
Water tank: |
|
|
Inner tank material: |
Tainless steel SUS304-2B, 0.4mm thickness |
|
Outer tank material: |
Color steel or stainless steel, 0.4mm thickness |
|
Insulation layer: |
Polyurethane foaming, 50mm thickness |
|
Inner tank diameter: |
360mm |
|
Outer tank diameter: |
460mm |
|
Heat preservation: |
72 hours |
|
|
|
|
Frame: |
|
|
Material: |
Galvanized sheet and electrostatic plastic-sprayed, Thickness: 1.5mm. If stainless steel, thickness is 1.2mm |
|
Angle of frame: |
27° , 30° , 38° , 45° |
|
|
|
|
Accessories: |
|
|
1. Assistant tank: 3L, 5L, 8L, 12L, 25L for your choose |
|
|
2. Electric heater: 1500W |
|
|
3. Magnesium bar |
|
|
4. Intelligent controller |
|
Jiangsu Audary New Energy Co., Ltd., is specialized in supplying and exporting of all kinds of metallurgy, mineral & energy products including solar water heater, solar collector and water heater which have many years experience in this field.
Rebao solar water heater factory was built in 1995, which was one of the earliest factories specialized in solar water heaters making. To enlarge our market, we established Jiangsu Audary New Energy Co., Ltd in 2008.
Since we began this career, both our workers and stuffs are working hard to make the products better and better, with our efforts, we are well- known for high quality and good service.
Since we do so much, we have got several certificates, such as CE, ISO and SRCC, SOLAR KEYMARK.
Under the leadership of our general manager and engineers, our company will be more prosperity.
Hope we can cooperate with people all over the world. And lead people a Green-energy life.
