| Prod Model: |
PBT-15A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speaker Material: |
Plastic |
| Amplification Type: |
Active |
| Usage: |
Portable Player |
| SNR: |
91-100dB |
| Structure: |
Closed Enclosure |
Product Description
![]()

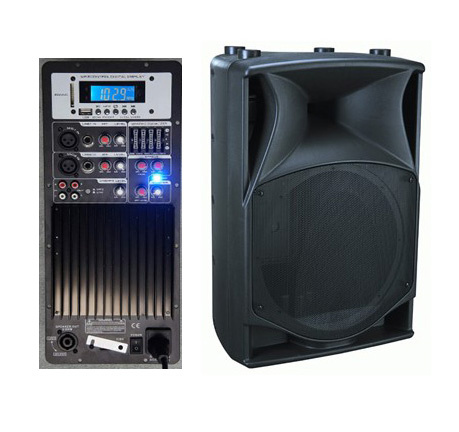

Active 15" PA speaker box/Plastic speaker/cabinet specification:
System type: Active 15ins, 2-way
Sensitivity (dB 1W at 1m): 99dB
System impedance: 4 or 8ohm
Frequency response: ± 3dB, 45 to 18kHz
LF driver:
LF driver size: 380mm/15-inch, 4 or 8ohm
LF driver magnet size: 60oz
LF voice coil size: 76.2mm/3-inch
HF section:
HF voice coil size: 44mm/1.75-inch, 8ohm
HF exit size: (mm/inches): 25mm/1 inch
HF type: Compression driver
HF diaphragm material: Titanium
Crossover section:
Crossover frequency/filter: 2.3kHz, 24dB per octave Linkwitz-Riley
HF driver protection: Independent LF and HF limiters
Amplifier power:
Continuous RMS: 200W
Power on indicator: LED red/blue
Especial functions: SD/USB input, LCD screen, radio, mic input, remote control, speaker output
Ningbo ASM Electronics Co., Ltd., has been specializing in car & PA audio system, including car CD/VCD/DVD player, amplifiers, capacitors, EQ, pre-AMP, speaker & speaker box, cables and other audio accessories. As a suppliement, a package of auto accessories are supplied to meet various needs of our customers.
As a manufacturer with an area of 5000m², 6 production lines and over 100 employees, our affiliated factory manufacturers mainly speaker and speaker box. Thanks to a perfect system of quality assurance, welltrained and skilled workers, a professional and experienced technical and inspection team, and such testing system as DAAS, we are practising our promise: Excellent In Sound.
