| Prod Model: |
ACR122U NFC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

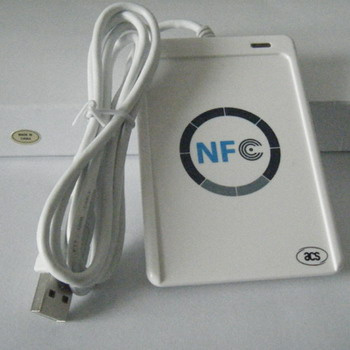

ACR122U NFC Mifare Card Reader
1. ISO14443 Type A & B
2. Mifare
3. FeliCa
4. types of NFC (ISO/IE
ACR122U NFC Mifare Card Reader
Overview:
ACR122U NFC Mifare Card Reader is a PC-linked contactless smart card reader/writer developed based on the 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only Mifare® And ISO 14443 A and B cards but also NFC and FeliCa contactless technologies.
ACR122U NFC Mifare Card Readeris compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can also read and write more quickly and efficiently. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use.
In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.
The is ideal for both secure personal identity verification and online micro-payment transactions. Other applications of the ACR122U include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.
Features:
1. CCID-compliant
2. PC/SC-compliant
3. Read/write speed up to 424 kbps
4. Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
5. Supports ISO 14443 Type A and B, Mifare, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
6. Supports new Mifare Ultralight C (via pseudo APDUs) and Mifare Plus SL1 (4 Byte UID, via pseudo APDUS) and SL3
7. Supports all 3 modes of NFC: Reader, card emulation and peer-to-peer modes
8. Built-in anti-collision feature (at least 1 card is detected when multiple cards are presented)
9. USB PnP
10. User-controllable bi-color LED
11. User-controllable buzzer (optional)
12. SAM socket (optional)
Tech Specs:
Dimensions
98 mm (L) x 65 mm (W) x 12.8 mm (H)
Weight
70 g
Interface
USB Full Speed
Operating Distance
<= 50mm (depends on tag type)
Supply Voltage
Regulated 5V DC
Supply Current
200mA (operating); 50mA (standby); 100mA (normal)
Operating Temperature
0-50° C
Operating Frequency
13.56 MHz
