| Prod Model: |
EM-4426/K1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Acoustic Clear Tube Earpiece Earphone for Kenwood |
| Connector: |
K1 2 Pin Connecto |
| For Radios: |
Tk208/Tk220/Tk240/Tk3000/Tk3101/Tk3207/Nx320 |
| Cable Material: |
Kevlar+PU |
| Communication: |
Wired |
| Warranty: |
10 Months |
| Style: |
In-ear |
| Line-Control: |
Line-Control |
| Microphone: |
With Microphone |
| Type: |
Electret Earphone |
| Function: |
Two Way Radios/Walkie Talkie Communication |
| Use: |
Industrial |
| Earpad Size: |
Xsmall |
| Wire Material: |
PU |
| Jack Type: |
Kenwood 2 Pin Connector |
| Color: |
Black/Beige |
Product Description

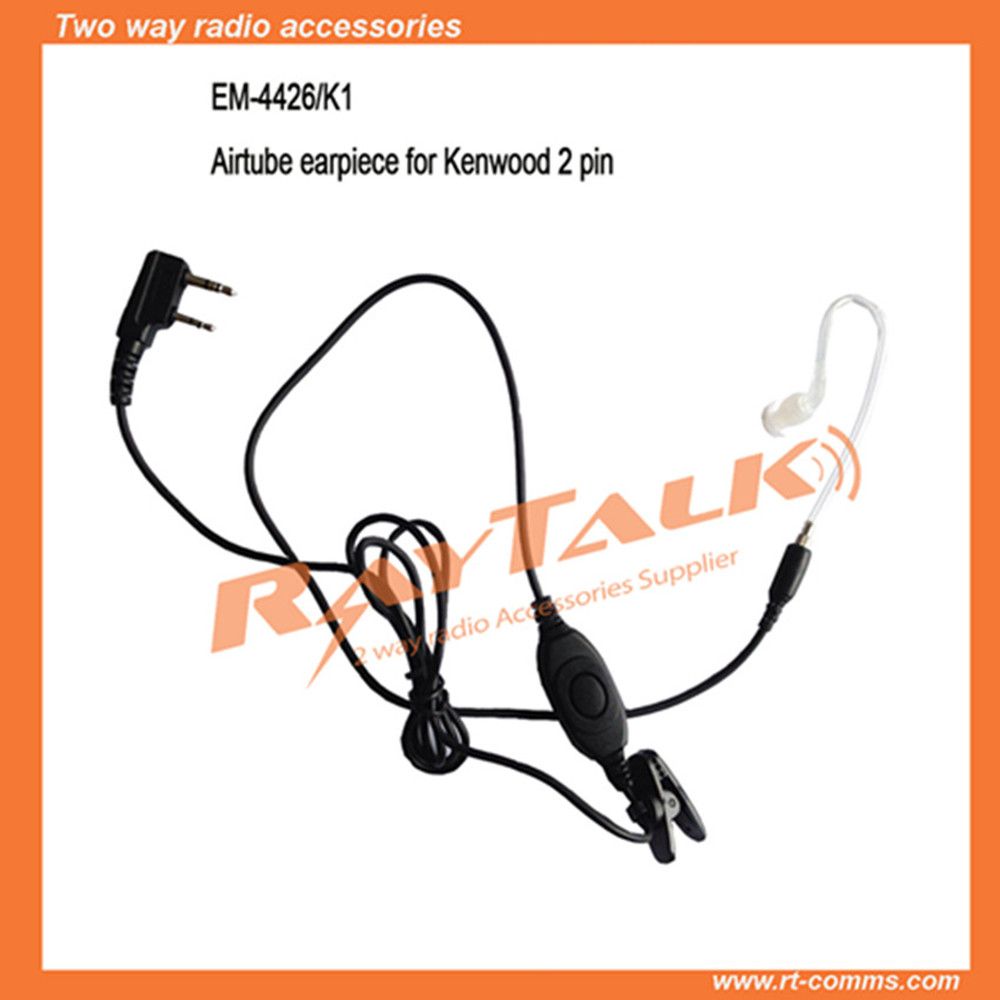

Acoustic clear tube earpiece earphone for Kenwood 2 pin radios TK208
Descriptions:
This earpiece allows the radio user to privately receive messages. It's intrinsically safe with an FM-approved radio, and it's ideal when environments require discreet communication. This beige, 2-wire earpiece has a combined microphone and Push-to-Talk feature.
Feature:
1, Transparent acoustic tube style surveillance earphone received superior sound even in noisy environment, it's also discreet and portable,
2, Acoustic tube assembly for hygiene and multiple users,
3, Clip can secure to user's lapel to meet their need,
4, All units feature heavy grade industrial jacketed cables and excellent strain relief for maximum life,
5, Designed for surveillance, security, public safety, etc,
6. With PT#26 inline PTT.
Speaker Specification
Type |
Transducer Moving coil dynamic speaker |
Impedance |
90Ω±15% @1KHZ |
Sensitivity |
110±3dB @1KHZ |
Resonance freq |
(F0) 400HZ±20% |
Frequency respond |
F0~5KHz |
Rated input power |
500mW |
Maximum input power |
800mW |
Microphone Specification
Sensitivity Range |
-34 ± 2dB RL=2.2K ΩVs=3.0V(DC) 1KHz 0dB=1V/Pa |
Impedance Max |
2.2KΩ 1kHz (RL=2.2KΩ) |
Frequency |
20-20KHz |
Current Consumption Max |
0.5uA RL=2.2KΩ Vs=3.0V(DC) |
Operation Voltage Range |
1.0V-10V (DC) |
Max Sound pressure Level |
115dB S.P.L |
