| Prod Model: |
CBB61 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Cbb61 Capacitor |
| Rated Voltage: |
200~500VAC |
| Operating Temperature: |
40/70/21 or 40/85/21 |
| Capacitance Tolerance: |
±5% |
| Class Of Operation: |
Class B, Class C |
| Class Of Safety Protection: |
P0/P2 |
| MOQ: |
1 PCS |
| Shape: |
Squareness |
| Capacitor Case: |
Plastic |
| Lead Out: |
Pin or Wire |
| Type: |
Polypropylene Capacitor |
| Application: |
Water Pump |
| Package Type: |
Surface Mount |
| Capacitance: |
1~35UF |
| Manufacturing Material: |
Plastic Case and Capacitor Mpp Film |
| Electrolyte: |
Film Capacitor |
| Usage: |
Fan, AC Motor, Air Conditioner |
| Filter: |
Film Capacitor |
Product Description
25uf sh 370v 450v cbb61 capacitor for fancbb61 10uf 350vac Polypropylene Capacitor7×24 hours Sincerely Service for You
*****Basic Info.*****
| Basic specifications |
| Model No. | CBB61 Capacitor |
| Type | AC motor capacitor CBB61 capacitor air conditioner |
| Capacitance | 1~35uF |
| Structure | Single Film Capacitor |
| Manufacturing Material | Polypropylene |
| Electrolyte | Polypropylene Film |
| Rated Voltage | 200~500VAC |
| Operating Temperature | 40/70/21 or 40/85/21 |
| Capacitance Tolerance | ±5% |
| Class of Operation | Class B,Class C |
| Class of Safety Protection | P0/P2 |
| Package Type | Export Carton for CBB61 Fan Capacitor |
| Production Capacity | 500,000pcs/Month |
| MOQ | 1 pcs |
| Size | Available on Request (Customized Fan Capacitor) |
**Product Description**

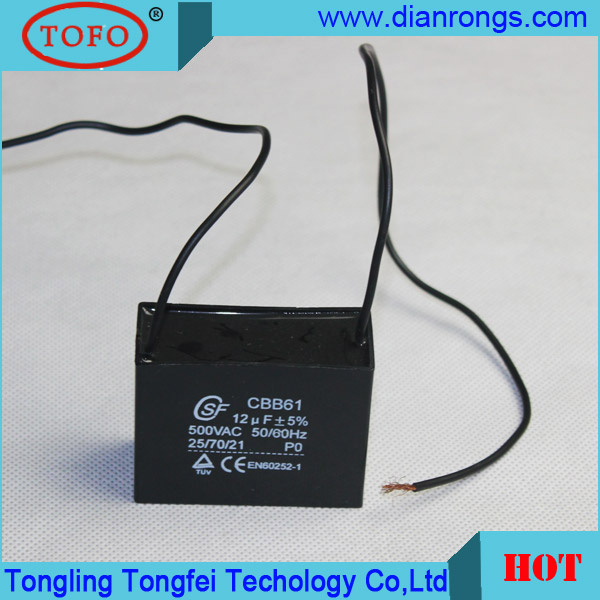

The CBB61 fan capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric.It is impregnated with flame-retardant epoxy resin and canned in cubic ABS or PBT plastic case with characteristics of small size,reliable performance and long endurance.
*Technical Specifications:
| Reference standards | GB/T 3667.1 ( IEC60252-1 ) |
| Climatic category | 40/70/21,40/85/21 |
| Class of operation | Class B(10000h) Class C(3000h) |
| Class of safety protection | P0/P2 |
| Voltage range | 200~500VAC |
| Capacitance range | 1~35μF |
| Capacitance tolerance | ±5% |
| Dissipation factor | 20×10-4(100Hz,20ºC) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
| Insulation Resistance | ≥3000MΩ. μF(100Hz,20ºC,1min) |
*Products Dimensions(mm):
| Specifications | 450VAC | 250VAC |
| 1μF | 37×13×23 | 37×13×23 |
| 1.2μF | 37×13×23 | 37×13×23 |
| 1.5μF | 37×14×25 | 37×13×23 |
| 2μF | 37×16×28 | 37×13×23 |
| 2.5μF | 37×18×28 | 37×14×25 |
| 3μF | 47×18×29 | 37×14×25 |
| 3.5μF | 47×18×34 | 37×16×28 |
| 4μF | 47×18×34 | 37×16×28 |
| 4.5μF | 47×22×34 | 37×16×28 |
| 5μF | 47×22×34 | 37×18×28 |
| 5.5μF | 47×22×34 | 37×18×28 |
| 6μF | 47×22×34 | 47×18×29 |
| 6.5μF | 48×26×38 | 47×18×29 |
| 7μF | 48×26×38 | 47×18×29 |
| 8μF | 48×26×38 | 47×18×34 |
| 10μF | 58×26×44 | 47×22×34 |
| 12μF | 58×26×44 | 47×22×34 |
| 15μF | 58×26×44 | 47×22×34 |
| 16μF | 58×26×44 | 47×26×38 |
| 20μF | 58×35×49 | 47×26×38 |
| 25μF | 58×35×49 | 47×26×38 |
| 30μF | Negotiable | 58×26×44 |
| 35μF | Negotiable | 58×26×44 |
* Note:Other specifications,size and terminal outside table are negotiable.
*Application:
The CBB61 fan capacitor broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for air conditioners' fans,electric fans and exhaust fans etc.at comparatively low rated power.
