| Prod Model: |
XH-24W-12V04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Power Adapter |
| AC Plug: |
Universal Use |
| Input Voltage: |
AC100V-240V, 50/60Hz |
| Output Voltage Range: |
12V/±0.5V |
| Maximum Power (Po): |
24W |
| Safety Approved Certification: |
UL, CE, RoHS, CB, ISO9001:2008, Nsai, MSDS, etc. |
| DC Plug Size: |
5.5*2.1*10.5mm ("Female Straight Plug") |
| DC Cable Length: |
L=1.2m (According to Customer's Requirement) |
| Mtbf: |
± 50, 000 Hours |
| Protection Function: |
Over-Current/Voltage and Short-Circuit |
| Output Type: |
AC or DC |
| Connection: |
Plug In |
| Usage: |
Display |
Product Description

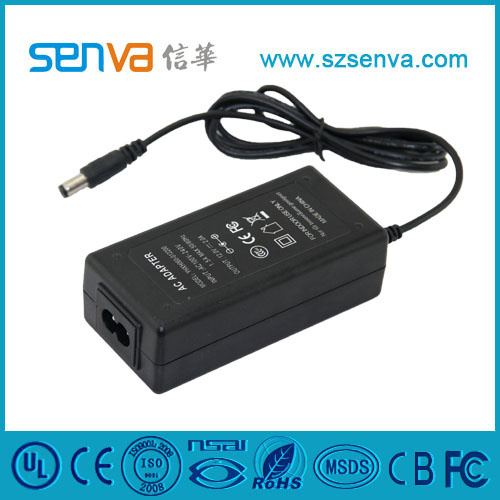

AC/DC Switching Power Adapter for Laptop, desktop, tablet charge
Features:
*High power and efficiency
*Good in will
*Desktop directly charger
*Self-protect of over charge, over load, short-curuit ect.
Performance data:
Outer Shell Model No.: "RC-201AC"
Dimensions: 98*47*32MM
Input Voltage: AC100V-240V, 50/60Hz
Input Current (RMS): 1.5A
Output Voltage Range: 12V/± 0.5V
Output Voltage Regulation: ± 0.5%
Output Current Range: 0.1A-2A
Maximum Power (Po): 24W
Protection Fuction: Over-current/voltage and short-circuit
Load Regulation: ± 0.5%
DC Plug Size: 5.5*2.1*10.5MM ("female straight Plug") (according to customer's requirement)
DC Cable Length: L=1.2M (according to customer's requirement)
Operating Temperature: 0-40
Storage Temperature: -20-75 (regular work after two hours in normal temperature)
Operating Relative Humidity: Max95%
MTBF: ± 50, 000 hours
AC Plug: American/Eur/JP/AU/UK Standard plugs, etc. Can be custom-made
Safety Approved Certification: UL, CE, RoHS, CB, ISO9001: 2008, NSAI, MSDS, etc.
Rippel and Noise: ≤ 100MV
Net Weight: 0.113KG
Package: White box or Poly bag
|
Outer Shell Model No.: "RC-201AC" |
|
Dimensions: 98*47*32MM |
|
Input Voltage: AC100V-240V, 50/60Hz |
|
Input Current (RMS): 1.5A |
|
Output Voltage Range: 12V/± 0.5V |
|
Output Voltage Regulation: ± 0.5% |
|
Output Current Range: 0.1A-2A |
|
Maximum Power (Po): 24W |
|
Protection Fuction: Over-current/voltage and short-circuit |
|
Load Regulation: ± 0.5% |
|
DC Plug Size: 5.5*2.1*10.5MM ("female straight Plug") (according to customer's requirement) |
|
DC Cable Length: L=1.2M (according to customer's requirement) |
|
Operating Temperature: 0-40 |
|
Storage Temperature: -20-75 (regular work after two hours in normal temperature) |
|
Operating Relative Humidity: Max95% |
|
MTBF: ± 50, 000 hours |
|
AC Plug: American/Eur/JP/AU/UK Standard plugs, etc. Can be custom-made |
|
Safety Approved Certification: UL, CE, RoHS, CB, ISO9001: 2008, NSAI, MSDS, etc. |
|
Rippel and Noise: ≤ 100MV |
|
Net Weight: 0.113KG |
|
Package: White box or Poly bag |
Shenzhen Xingyuan Senva Technology Co. Ltd was established in 2009, specializing in designing, manufacturing and marketing of various of power adapters, switching power supply, charger and portable power bank & consumer electronics, etc. for customers both at home and abroad. We have a total production space of more than 2, 000 square meters and a well established rigorous quality management system backed up by UL and ISO 9001, as well as the holder of RoHS/CE/CB//FCC certificates, etc. Our products are widely used in the fields of HDD, DVR, DVB, DVD, Digital Photo frame, Electronic refrigerator, Security monitoring, LED decorative lighting, Mobile phones, Computers, Communications terminal equipment, etc.
With strong productivity for OEM/ODM services, our key staffs have extensive experiences in R&D, design, manufacture, process and quality control and supply chain management while our customer service specialists are dedicated to providing our customers with fast technical and commercial services with the help of our well established distributor and sales office networks across the world.
"First-class quality, high-quality service, reasonable prices and timely delivery" are our constant and solemn commitments. We are looking forward to creating the splendid business in power adapter, portable power bank & consumer electronics, etc. fields with you based on mutual benefits. Welcome to visit our factory and expect to receive your valuable inquiry and cooperation soon.
