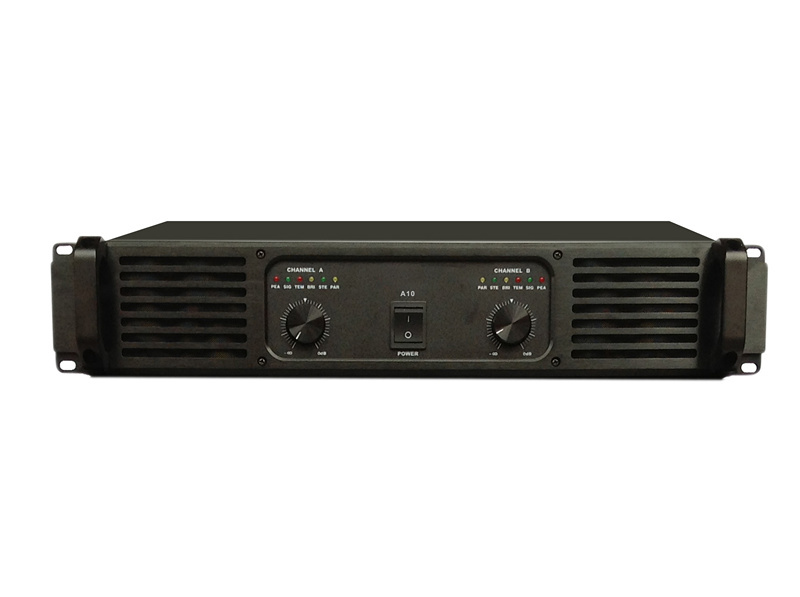

| Prod Model: |
A10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Power: |
1000W |
| Height: |
2u |
| Channel: |
2 Channel |
| Input Sensitivity: |
32db |
| Voltage Gain: |
0.775V/0dBm |
| Certificate: |
CE |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Usage: |
Shows |
| Output Number: |
2 |
| Voltage: |
AC100V~220V |
| Conductive Mode: |
H |
Product Description
A series Power amplifier is our best seller amplifier from the day we established ,it is porpular for its special design and super performance .
Used ON transistor makes it sounds good and have a well performance on the high frequency ,H type circuit makes it in high quality and stably . Daming factory is up to 1500 ,and S/n ration reach to 110dB or even higher . The all-round circuit soft protection can prevent our amplifier from an internal circuit break .
As an OEM factory for many famous company ,we are sure we can provide you the satisfied products ,and we will do our best to provide you best seller products .
THD+N |
Rate power,1KHz |
<0.025% |
Smpte IMD |
Rate power,60Hz/7kHz4/1 |
<0.075% |
Frequency response |
Rate power,20Hz-20kHz |
< +/- 0.25dB |
Phase response |
Rate power,20Hz-20kHz |
< +/- 8 Degree |
Signal to noise ratio |
1KHz,0.775V input, A weight, |
>110dB |
Damping factor |
Rate power,63Hz |
>1500 |
Controlled slew rate |
1KHz Tone burst,40dB Gain |
>100V/us |
Input impedance |
Rate power,1KHz,Balanced input |
20kohm |
Lowest loaded impedance |
Stereo |
>1.6 ohm |
|
Bridge |
>3.2 ohm |
Dimensions |
|
88mm X 482mm X 400mm |
Stereo
8ohm | Stereo
4ohm | Stereo
2ohm | 8ohm
bridge | 4ohm
bridge | 2ohm
parallel | 1ohm
parallel | Net weight | Output voltage | Voltage gain | Power cur. draw(over loading) |
| 1400W | 2100W | 2800W | 4200W | 5600W | 4200W | 5600W | 24kg | 187v | X137 | 3500VA/17A |
| 1200W | 1800W | 2400W | 3600W | 4800W | 3600W | 4800W | 18kg | 173v | X126 | 3000VA/13A |
| 1000W | 1500W | 2000W | 3000W | 4000W | 3000W | 4000W | 17kg | 158v | X115 | 2500VA/11A |
| 800W | 1200W | 1600W | 2400W | 3200W | 2400W | 3200W | 16kg | 141v | X103 | 2000VA/8.8A |
| 600W | 900W | 1200W | 1800W | 2400W | 1800W | 2400W | 15kg | 122v | X89 | 1500VA/6.6A |
| 400W | 600W | 800W | 1200W | 1600W | 1200W | 1600W | 14kg | 100v | X73 | 1000VA/4.4A |
| 300W | 450W | 600W | 900W | 1200W | 900W | 1200W | 13kg | 85v | X62 | 760VA/3.3A |
| 200W | 300W | 400W | 600W | 800W | 600W | 800W | 12kg | 74v | X56 | 600VA/2.6A |
