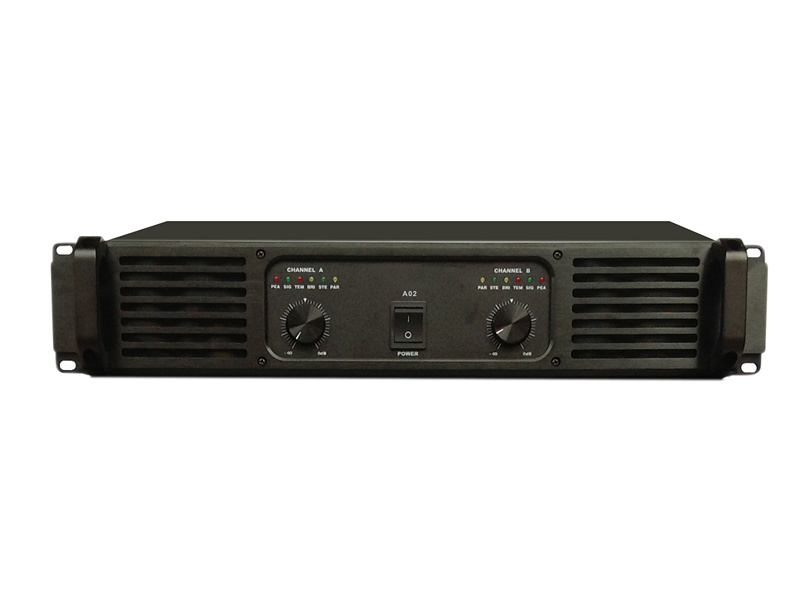

| Prod Model: |
A02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Power: |
200W |
| Height: |
2u |
| Channel: |
2 Channel |
| Input Sensitivity: |
32db |
| Voltage Gain: |
0.775V/0dBm |
| Certificate: |
CE |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Usage: |
Stage |
| Output Number: |
2 |
| Voltage: |
AC100V~220V |
| Conductive Mode: |
H |
Product Description
We specialize in the manufacturing and exporting of high quality amplifier Professional amplifier. karaoke Amplifier KTV amplifier
Sourcing the on-playing music as signal then calculating the instant resistance of load based on real-time analysis of the output voltage and current.When the resistance is less than 1.6ohm,soft protection launches to limit the driving current and recovers current in 5 ms after the failure removed.The relay is kept in connected through protection just avoid contact destruction.
Independent detection on the signal above 3KHz in the output.Once it exceeds 40V in 0.5s the protection program launches to lower the output below 40V to levitate the damage to HFdrivers.
IN THE SOLUTION TO LINEAR AMPLIFIER BASED ON LINEAR POWER SUPPLY,THE FOLLOWING INIOVATIVE TECHNOLOGIES PUT THE POWER-TO-WEIGHT RATIO AND POWER-TO-VOLUME RATIO TO A NEW, UNEXP ;ARED LIMIT:
1. Less heat loss due to accurate power allocation
2. Unique power supplying program lower the requirements of power supply
3. Select material and appropriate production technology maximizing the turnout of adapter
4. Ideal radiator structure improving heat sinking so that a smaller and lighter radiator can dissipate heat far faster and more efficiently
Specification
THD+N |
Rate power,1KHz |
<0.025% |
Smpte IMD |
Rate power,60Hz/7kHz4/1 |
<0.075% |
Frequency response |
Rate power,20Hz-20kHz |
< +/- 0.25dB |
Phase response |
Rate power,20Hz-20kHz |
< +/- 8 Degree |
Signal to noise ratio |
1KHz,0.775V input, A weight, |
>110dB |
Damping factor |
Rate power,63Hz |
>1500 |
Controlled slew rate |
1KHz Tone burst,40dB Gain |
>100V/us |
Input impedance |
Rate power,1KHz,Balanced input |
20kohm |
Lowest loaded impedance |
Stereo |
>1.6 ohm |
|
Bridge |
>3.2 ohm |
Dimensions |
|
88mm X 482mm X 400mm |
