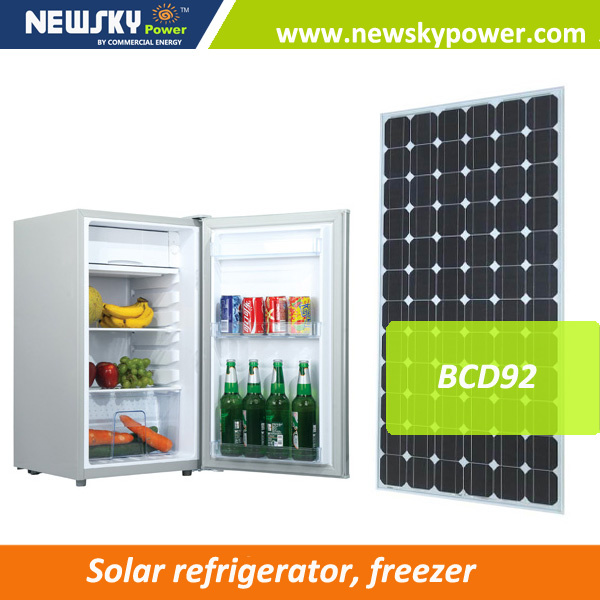

90L Mini Solar Refrigerators

Prod Model:	90L 138L 188L 238L 318L 433L
Item:	China Suppliers 90L Single Temperature Solar Free
Power Consumption:	40W
Input Voltage:	DC 12V/24V Auto Recognition
Product Size(mm) (L*W*H):	733*752*851
Carton Size(mm) (L*W*H):	852*741*847
N.W./G.W.(Kg):	42/46
Loading Quantity:	42PCS/20gp, 84PCS/40gp, 126PCS/40hq.
Application:	Remote Homes;Boats and Marine
Door:	Double Doors
Installation:	Free-Standing
Type:	French Door
Power Source:	Solar
Material:	Plastic
Temperature Type:	Single-Temperature
Defrost Type:	Manual Defrost
Climate Type:	ST
Certification:	RoHS
Capacity:	90L to 433L

Product Description

                                                90L Mini solar refrigerators


1,Features:
High quality DC compressor;
CFC-free refrigerant (R-134a);
Low power consumption;
Battery over discharge protection;
Insulation 110mm for saving more energy;
High temperature resistance and energy saving design;
AC/DC operated;
LCD display;
Strong door iron lock;
Inner fan to force air circulation to insure temperature uniformity;
Max -19ºC for freezer compartment at 30ºC Ambient temperature.


2,Specification:

Model	BR90C4	BR118C4	BR138C4	BR188C4	BR238C4	BR318C4
Power Consumption	60W	72W	72W	72W	80W	80W
Input Voltage	DC 12V/24V
Work Temperature	<40ºC
Capacity	90 L (3.18 c.f.)	118 L (3.18 c.f.)	138 L (4.87 c.f.)	188 L (6.64 c.f.)	238 L (8.40 c.f.)	318 L (11.23 c.f.)
Product Size(mm)	625× 555× 910	815× 555× 910	815× 555× 910	875× 595× 920	1245× 660× 920	1245× 660× 920
Carton Size(mm)	685×565 × 935	885×560 × 930	885× 575× 930	930× 605× 940	1300× 680× 940	1300× 680× 940
N.W./G.W.(KG)	26/31	29/35	30/36	36/43	50/58	52/60
Loading Quantity	66PCS/20GP, 138PCS/40GP, 138PCS/40HQ.	52PCS/20GP, 104PCS/40GP, 104PCS/40HQ.	52PCS/20GP, 104PCS/40GP, 104PCS /40HQ.	42PCS/20GP, 88PCS/40GP, 88PCS/40HQ	34PCS/20GP, 70PCS/40GP, 70PCS/40HQ	26PCS/20GP, 54PCS/40GP, 54PCS/40HQ

Model	BCD128C4	BR128C4	BR170C4
Power Consumption	40W	40W	40W
Input Voltage	DC 12V/24V auto recognition
Work Temperature	<45ºC
Capacity	128L	128L	170L
Product Size(mm) (L*W*H)	733*752*851	804*726*810	804*726*960
Carton Size(mm) (L*W*H)	852*741*847	825*741*847	825*741*997
N.W./G.W.(KG)	42/46	42/46	45/50
Loading Quantity	42PCS/20GP, 84PCS/40GP, 126PCS/40HQ.	36PCS/20GP, 84PCS/40GP, 126PCS/40HQ.	36PCS/20GP, 84PCS/40GP, 126PCS/40HQ.



3,NEW MODEL:
High quality DC compressor
automatic recognition
CFC-free refrigerant (R-134a)
AC/DC operated
Insulation 110mm , 50% Energy saving
Temperature range from +15 to -19ºC
precisely temperature control
Double top doors, Dual temperature control
High temperature resistance above 45ºC
Battery over discharge protection
Circulation fan with LED light (AUTO sensor)


Model	BR233F	BR303F	BR335F	BR384F	BR433F
Power Consumption	50W	50W	55W	55W	60W
Input Voltage	DC12/24V	DC12/24V	DC12/24V	DC12/24V	DC12/24V
Work Temperature	<45ºC	<45ºC	<45ºC	<45ºC	<45ºC
Capacity	233L	303L	335L	384L	433L
Product Size (mm)	1213*736*815	1213*736*965	1613*736*815	1613*736*890	1613*736*965
Carton Size (mm)	1260*755*865	1260*755*1015	1660*755*865	1660*755*940	1660*755*1015
N.W./G.W.(KG)	53/56	58/65	64/72	70/78	76/84
Loading Quantity	26PCS/20GP, 81PCS/40GP	26PCS/20GP, 74PCS/40GP	20PCS/20GP, 63PCS/40GP	20PCS/20GP, 56PCS/40HQ	20PCS/20GP, 56PCS/40HQ

Model	BR212RF	BR277RF	BR315RF	BR362RF	BR408RF
Power Consumption	50W	50W	55W	55W	60W
Input Voltage	DC12/24V	DC12/24V	DC12/24V	DC12/24V	DC12/24V
Work Temperature	<45ºC	<45ºC	<45ºC	<45ºC	<45ºC
Capacity	212L   94L-Fridge 118L-Freezer	277L 127L-Fridge 150L-Freezer	315L  145L-Fridge 170L-Freezer	362L  169L-Fridge 193L-Freezer	408L  192L-Fridge 216L-Freezer
Product Size (mm)	1213*736*815	1213*736*965	1613*736*815	1613*736*890	1613*736*965
Carton Size (mm)	1260*755*865	1260*755*1015	1660*755*865	1660*755*940	1660*755*1015
N.W./G.W.(KG)	60/66	68/74	80/86	83/89	86/92
Loading Quantity	26PCS/20GP, 81PCS/40GP	26PCS/20GP, 74PCS/40GP	20PCS/20GP, 63PCS/40GP	20PCS/20GP, 56PCS/40HQ	20PCS/20GP, 56PCS/40HQ

4,Company information:
COMMERCIAL ENERGY GROUP LIMITED is a an energy-saving technology pioneer company, engaged in develop and apply wind power generator and solar system. Located in the QINGDAO Development Zone nearby Qingdao port, the company enjoys an excellent traffic convenience.

In response the call of government concerning on energy-saving & emissions reduction, we majorly focus on the development of wind solar power system. Based on radical innovatory design concept and high-tech application, make fully use of the green, clean energy to achieve zero power consumption, zero emissions, zero pollution.

Guided by the principle of "advanced technology,exquisite product and competent manufacturing",the company is proceeding with the mission of energy saving and green planet building based on the spirit of "credit,innovation,hard working and social responsibility".
