| Prod Model: |
9000lph |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Hellopure |
| Control: |
Automatic |
| Model: |
9000lph |
| Capacity: |
9000lph |
Product Description

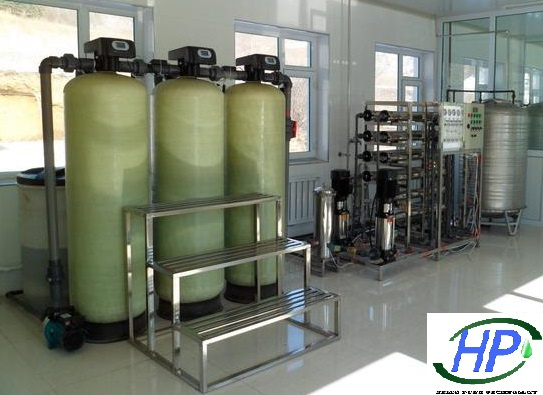

9000LPH RO SYSTEM
1.The process of RO water treatment system
Raw water-- Raw water tank --Raw water pump --Quartz sand filter-- Active carbon filter-- Security filter-- high pressure pump-- RO system--UV sterilizer--Pure water tank
1). Raw water pump-- provide the pressure to quartz sand filter/active carbon filter
2). Quartz filter-- get rid of turbidity, suspended matter, organic matter, colloid, etc.
3). Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, etc.
4). Water Softener--using ion exchange resin to exchange "ions" of calcium and magnesium is the most common and the easiest method of removing hardness of water and render the water suitable for utility purpose
5). Security filter--It is also called cartridge Filter, prevent any deposition of large Particles, most of the bacteria, and viruses into the UF membrane and RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
6). High pressure pump-- The high pressure pump is used for make sure there are enough water for satisfying designed production capacity.
7). RO (reverse osmosis) system--RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic
2.Application field:
1). Electronics
2). Power system
3). Metallurgical industry
4). Chemical industry
5). Medical and pharmaceutical industry
6). Foods and beverage industry
7). Treatment of industrial sewage and waste water
8). Brackish water desalination etc
3.The feature of Reverse Osmosis system water filter
1). Can production water continuously and highly automatic
2). No need the chemical regeneration, easy operation
3). RO system choose the import USA DOW membrane
4). Automatic switch on when low water level, and switch off when high water level
5). RO membrane can backwash automatic and reduce thepollution.
6). Water shortage protection for multi-stage pump
7). Porduction water condutivity meter can test the monitoring quality on line contionuosly.
8). Low operation Cost and Long life span
9). It is PC program controller
10). Easily control and Maintained.
11). Auto membrane flushing
12). Environmental protection, Low power consumption
13) Auto flush/backwash
14) Low /high pressure protection
| Model No. | Capacity (M3/H) | Power (kw) | Recovery Rate (%) | Size LX W X H (mm) |
| HCRO-250 | 0.25 | 1.5 | 50 | 2500X1000X2800 |
| HCRO-500 | 0.5 | 1.5 | 50 | 2500X1000X2800 |
| HCRO-1000 | 1 | 2 | 50 | 3500X1200X2800 |
| HCRO-2000 | 2 | 4 | 50-60 | 6500X1500x2800 |
| HCRO-3000 | 3 | 4.5 | 55-65 | 7500X1500X2800 |
| HCRO-4000 | 4 | 6.5 | 55-65 | 7500X1500X2800 |
| HCRO-5000 | 5 | 11 | 60-70 | 10000X2500X3500 |
| HCRO-6000 | 6 | 11 | 60-70 | 10000X2500X3500 |
| HCRO-8000 | 8 | 18 | 60-70 | 10000X3500X3500 |
| HCRO-10000 | 10 | 20 | 60-70 | 10000X4000X3800 |
| HCRO-20000 | 20 | 30 | 70-75 | 15000X5000X5000 |
| HCRO-30000 | 30 | 40 | 70-75 | 20000X6000X5000 |
| HCRO-50000 | 50 | 50 | 70-75 | 30000X8000X5000 |
Shanghai Hello Pure Water Technology Co., Ltd is established in 2010. We are a professional manufacturer and exporter that is concerned with the design, development and production of water treatment system and components. We are located in Shanghai, China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
The Range of our products include residential, commercial and industrial water treatment system and components
Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching the Whole Asia, Middle East, Europe, America and South of America.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Our company promises: Reasonable prices, short production time and satisfactory after-sales service, Mutual development, mutual benefits
