| Prod Model: |
YF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerator: |
R410A |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
9000-12000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
>50dB |
| Certification: |
MEPS |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
DC |
| Condition: |
New |
Product Description

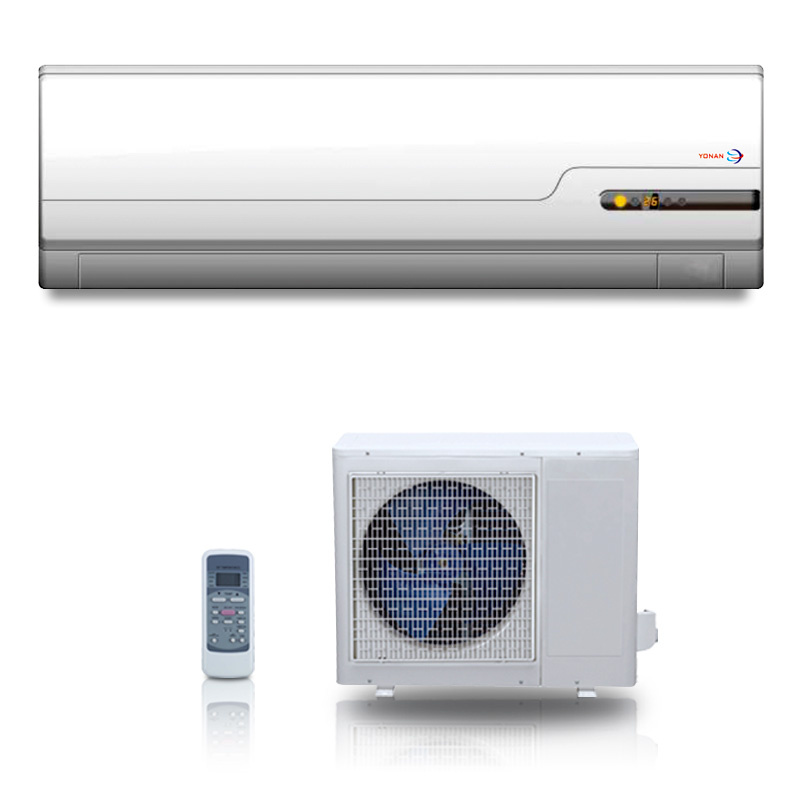

9000 Btu Wall Mounted Split Air Conditioner With CE
Feature
1. 9000btu cooling and heating wall mounted split air conditioner
2. Used the knwon compressor with best quality
3. Sleep mode function
4. Automatic restart function
5. High cooling / heating rate, energy-saving
6. Low noise fan motor
7. Self-diagnosis and auto-protection function
8. Intelligent defrosting
9. Intelligent control easy operation
Specifition
Power supply | Ph-V-Hz | 220-240V~ 50Hz, 1Ph |
| Cooling | Capacity | Btu/h | 8500(2250~10000) |
| Input | W | 770(180~1100) |
| Rated current | A | 3.4(0.9~4.8) |
| EER | W/W | 3.21 |
| Heating | Capacity | Btu/h | 9500(2300~11000) |
| Input | W | 770(170~1050) |
| Rated current | A | 3.4(0.8~4.6) |
| COP | W/W | 3.62 |
| Moisture Removal | L/h | 1.0 |
| Max. input consumption | W | 1650 |
| Max. current | A | 7.5 |
| Starting current | A | ---- |
| Compressor | Model | | DA108X1C-23EZ |
| Type | | ROTARY |
| Brand | | TOSHIBA |
| Refrigerant type | g | R410A/700g |
| Design pressure | MPa | 4.2/1.5 |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ6.35/Φ9.52(1/4"/3/8") |
| Max. refrigerant pipe length | m | 20 |
| Max. difference in level | m | 8 |
| Connection wiring | | 1.5(Optional) |
| Plug type | | 1.5x3 / VDE |
| Thermostat type | | Remote Control |
| Operation temperature | Indoor(cooling/ heating) | ºC | ≥17/≤30 |
| Outdoor(cooling/heating) | ºC | 0~50/-15~30 |
| Application area | m2 | 13-22 |
| Qty'per 20' /40' /40'HQ | | 133/283/314 |
