| Prod Model: |
TJ-085-31 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Camera, Computer, Mobile Phone, MP3 / MP4 Player, |
| USB Type: |
Micro-USB |
| Connectors: |
Nickel-Plated |
| Length: |
0.25m to 5m |
| Color: |
White/Black/or Optional |
| Cetification: |
CE,UL,ISO 9001 Is 14001 |
| Shielding: |
Braid |
| Connector: |
USB |
| Switch: |
Without Switch |
| Charging Function: |
Charging Function |
| Retractable: |
Not Scalable |
| Interface Type: |
USB |
Product Description
Specifications
USB CABLE 2.0
1. HIGH SPEED UP TO 480MBPS
2. ROHS CE&UL
3. REASONABLE PRCIE WITH BEST QUALITY

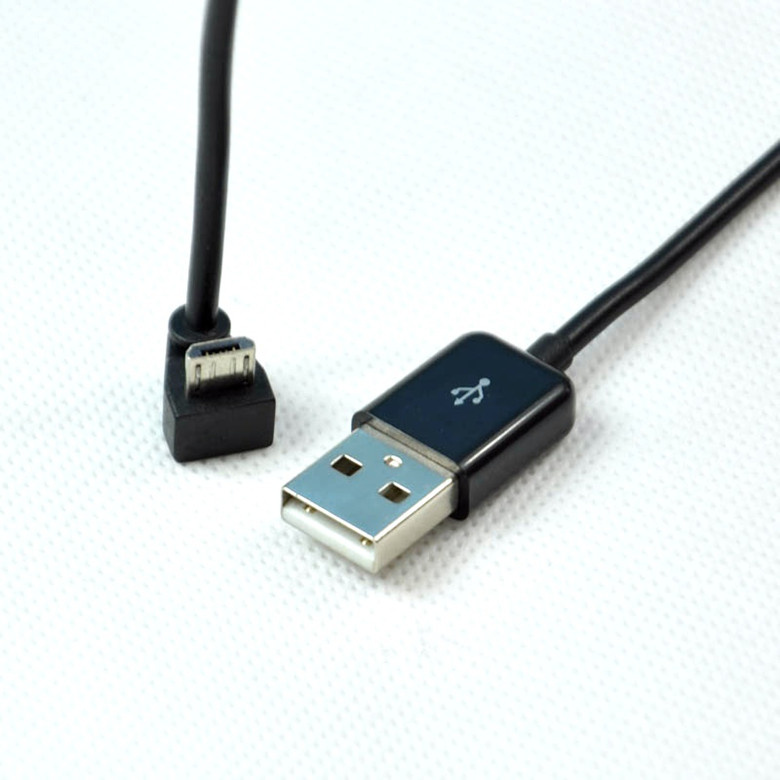

90 degree usb cable AF TO micro USB data cable USB charge cable for phone
Features:
1. New generic USB Cable, Type A to micro 5-Pin Type B
2. Transfers images and data between camera and PC by USB port
3. Meticulously crafted connections to ensure a high data transmission rate.
4. Cord Length: 3 ft/1.1m
5. For PS3 controller charge.
6. Fit other Digital Cameras, cell phones and devices that use the USB mini 5-pin connector
Electrical:
1.100% open& short test
2. Hi-pot: DC 300V 10ms
3. Insulation Resistance: 10m OHM/ 300 V MIN
4. Contact Resistance: 0.01 OHM Max
5. Shield up to 65% braid
6. Working Temperature: - 25° C~ + 85° C
Mechanical:
1. Over mold: PVC 70Pa UL 94V-0 Black
2. Pre mold: PE Low Density
3. Contact: Copper Alloy
4. Insertion Force: 35 N Max
5. Withdraw Force: 10 N Min
Functions
The Broads USB cables are used to connect a USB device to a USB-ready PC or hub.
They are constructed of the highest quality wire allowed by the USB 2.0 specification,
Which allows you to maximize the full potential of USB.
Connect your USB printer, scanner, hard drive, and more to your computer.
This Gold Series or Silver Series Hi-Speed USB 2.0 Cables transmits data without errors at speeds up to 480Mbps.
Application: Compatible with over 100 devices including: Digital camcorders, digital cameras, MP3/MP4 players,
Cell phones, PDA, Digital CAMERAS, video games and more
1.Double micro usb 5pin usb cable |
2.Length = 1M,2M,3M,5M,10,Customize |
3.Compatible with PC & Mac . |
4 .Metallic braid & Mylar foil shielding to reduce EM/RF interference |
5 .Twisted pair wire construction for consistent data transmission |
6 .UL Listed - UL2725 |
7 .ROHS Compliant |
Signal Conductor |
28AWG (7/0.127) TC |
Insulation |
0.9=0.05MM, PE (202-3364), white/green |
Conductor |
28AWG~20AWG (7/0.127~0.30) TC |
Shield |
Aluminum foil |
Ground Wire |
28AWG (7/0.127) TC |
Braided Wire |
16/50.10TC |
Jacket |
PVC |
