| Prod Model: |
PS090DWPN1018 D01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
9.0 Inch |
| Resolution: |
800(RGB) X480 |
| Brightness: |
250CD/M2 |
| Contrast Ratio: |
500 |
| Viewing Angel Direction: |
70/70/50/70 Degree |
| Operating Temperature: |
-20---70 Degree |
| Storage Temperature: |
-30---80 Degree |
| Application: |
POS Machine;Medical Machine |
| Type: |
Color |
| Display Technology: |
TFT |
| Usage: |
ATM |
| Viewing Angle: |
TN＋FILM |
Product Description

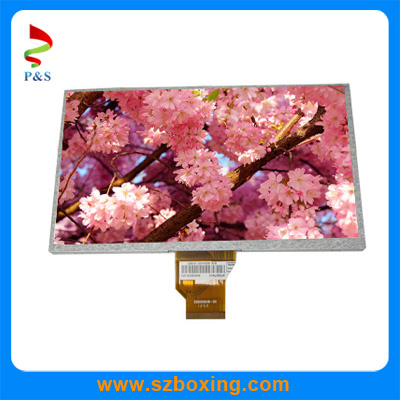

9.0 inch 50 Pins' Color TFT-LCD Module
1.Company Advantage
* Small MOQ accepted
*Competitive price and short lead-time.
*ISO9001 and ROSH certificated factory supplied.
*TFT LCD module, touch panel, PCB with SMT/COB solutions
2. Mechanical Specifications
3. Mechanical Specifications
4. Product processing
5. Quality Control
Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
6. Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping : Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation.
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6). Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.
|
Absolute Max.Rating |
|
Item |
Symbol |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Supply voltage |
VDD |
-0.3 |
– |
5.0 |
V |
– |
|
Operating temperature |
TOPR |
-20 |
– |
70 |
degree |
– |
|
Storage temperature |
TSTG |
-30 |
– |
80 |
degree |
– |
|
Backlight Driving Conditions |
|
Item |
System |
Value |
|
|
Unit |
Remark |
|
|
|
Min |
Typ |
Max |
|
|
|
Voltage for LED Backlight |
VL |
9.3 |
9.9 |
10.5 |
V |
|
|
Current for LED Backlight |
IL |
198 |
220 |
242 |
mA |
|
|
LED Life time |
– |
20,000 |
– |
– |
Hr |
|
|
Item |
Symbol |
Condition |
Values |
Unit |
|
Min. |
Typ. |
Max. |
|
Viewing angle(CR≥10) |
θL |
Φ=180° |
60 |
70 |
– |
degree |
|
θR |
Φ=0° |
60 |
70 |
– |
|
θT |
Φ=90° |
40 |
50 |
– |
|
θB |
Φ=270° |
60 |
70 |
– |
|
Response time |
TON |
Normal
θ=Φ=0° |
– |
10 |
20 |
msec |
|
TOFF |
– |
15 |
30 |
msec |
|
Contrast ratio |
CR |
400 |
500 |
– |
– |
|
Color Chromaticity |
WX |
0.27 |
0.31 |
0.35 |
– |
|
WY |
0.28 |
0.33 |
0.38 |
– |
|
Luminance |
L |
200 |
250 |
– |
cd/m2 |
