| Prod Model: |
TM0901Q |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Structure: |
COB |
| LCD Display Mode: |
Stn,Negative,Transmissive |
| Viewing Direction: |
6 O'clock |
| Driving Method: |
1/16duty,1/5bias |
| Backlight Type & Color: |
LED,White |
| Outline: |
58.0×32.0×13.8mm |
| Viewing Area: |
38.0×16.0mm |
| Active Area: |
27.8×11.50mm |
| Usage: |
TV-LCM |
| Digital LCD Module Type: |
Counting Module |
| Touch Screen Type: |
Resistive |
| Type: |
Graphic |
| Response Time: |
2ms |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
STN |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven |
| LCD Drive Mode: |
Static Drive LCD Module |
| Customized: |
Customized |

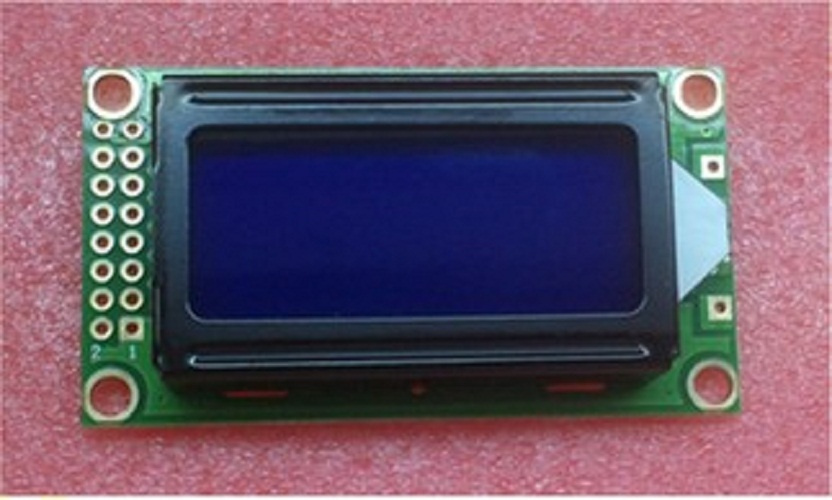

Product Description
isplay Feature
Structure: COB
LCD Display Mode: STN,Negative,Transmissive
Viewing Direction: 6 O'Clock
Driving Method: 1/16Duty,1/5Bias
Backlight type & Color: LED,White
Mechanical Data
Outline: 58.0×32.0×13.8mm
Viewing Area: 38.0×16.0mm
Active Area: 27.8×11.50mm
Character Size: 2.95×5.56mm
Dot Size: 0.55×0.66mm
Electrical Condition
Item | MIN. | TYP. | MAX. |
| Operating Voltage (V) | 4.5 | 5.0 | 5.5 |
| LCD Vop (V) | 3.8 | 4.5 | 4.9 |
| Backlight Vf (V) |
| 4.1 |
|
| Backlight If (mA) |
| 136 |
|
