8ton Per Day Seafood Processing Ice Maker

Prod Model:	LR-8T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Refrigerants:	R404A/R22
Noise:	< 70dB
Power Supply:	3p/380V/5ohz
Ice Capacity:	8,000kg/24h
Ice Thickness:	1.8~2.5mm
Ice Shape:	Flake Ice
Certification:	SGS
Condition:	New
Ice Making:	Spiral Blade

Product Description

Specifications
Ice flake:
*Excellent fast cooling
*Stainless steel evaporator
*Bitzer compressor
*PLC touch-screen controller

Flake Ice Machine/ Flake Ice Making Producer

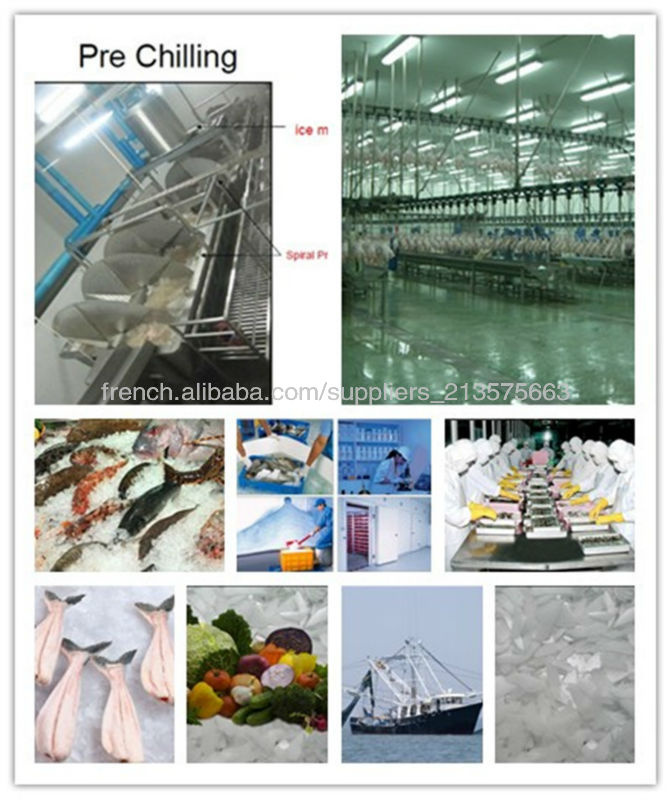

Always used in the field of aquatic food & meat product processing, leather processing, fowl butchering, dye chemical industry, supermarket or seafood restaurant or mines...Etc for its clean ice and convenience as well as low cost to keep food fresh. The flake ice machine is warmly welcomed for its clean, shapeliness, whiteness, glittering and translucent as well as low temperature to firstly keep fresh such as fish, meat and chicken then show a good view to the visitor and customers.

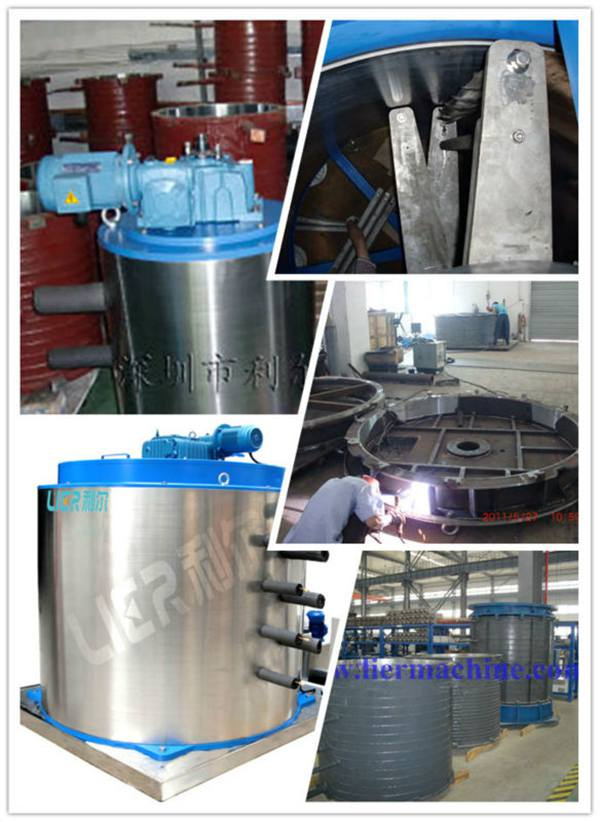

High-Quality Flake Ice Evaporator(Cylinder/ Drum)
*UNIQUE Strict quality control system (ERP SYSTEM controlled)
*Delicate welding technics with X-RAY. / Never leak
*SS 304 (stainless steel) Ice making drum (generator)
*All the material meet the HACCP request.
*Stainless steel cutters.
*Energy-efficient & high-sufficiency for ice production
----With the unique water distribution pan and air mouth, pure water evenly flows to the tube wall of the evaporator spirally, which improves the efficiency of heat transfer.
----As soon as ice off, the water of low temp. Is using for ice-making, which saving energy & increasing the drum volume of production of ice
----Air pressure control excludes the risk of rupture of the evaporator drum...

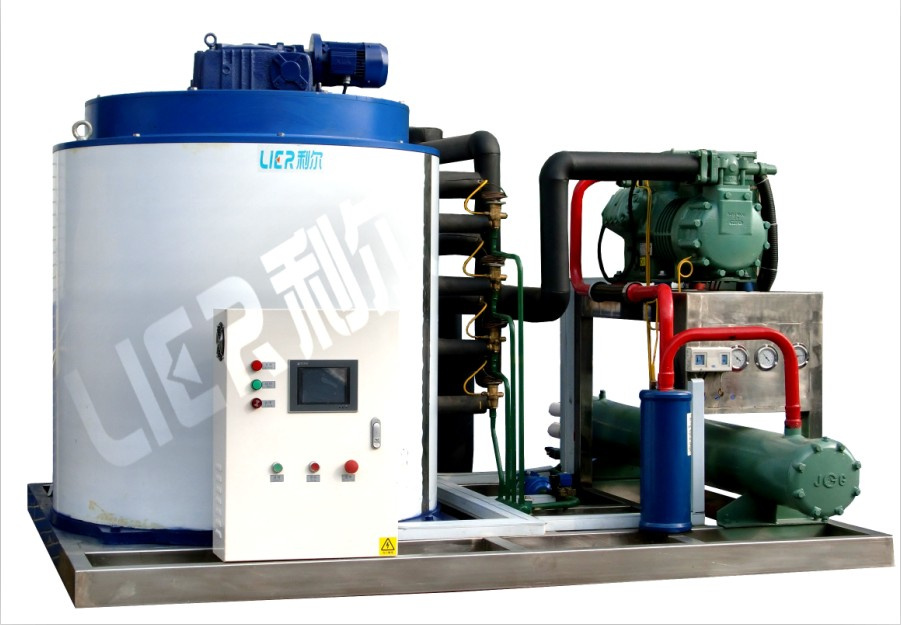

Industrial Flake Ice Maker
1, Intelligent PLC control with touch screen
2, Brand compressor: Bitzer, Hanbell
3, Refrigerants: R404A/R22
4, Air/water cooling

Industrial Flake Ice Maker Life span:
Evaporator is a core part for flake ice machine, its well designed and fine workmanshipped by our teammates. The major components imported from EUR countries, the life expectancy of flake ice evaporator is about 12-15 years.

Model	Daily  Output	Compressor Brand	Total  Power  (KW)	Power  Supply	Refrigerant	Cooling  mode	Weight (kg)	Ice  Storage  (kg)
LR-0.5T	0.5T/24H	Danfoss	2.5	3p/380v/50Hz	R404A	Air  colded	195	400
LR-1.0T	1.0T/24H	Danfoss	4.8	3p/380v/50Hz	R404A	Air  colded	227	500
LR-1.2T	1.2T/24H	Bitzer	5.4	3p/380v/50Hz	R404A	Air  colded	263	500
LR-1.5T	1.5T/24H	Bitzer	7.3	3p/380v/50Hz	R404A	Air  colded	364	500
LR-2T	2T/24H	Copeland	8.5	3p/380v/50Hz	R404A	Air  colded	423	600
LR-2.5T	2.5T/24H	Copeland	9.2	3p/380v/50Hz	R404A	Air  colded	456	600
LR-3T	3T/24H	Bitzer	12.2	3p/380v/50Hz	R404A	Air  colded	530	According  to  the  order
LR-4T	4T/24H	Bitzer	16.3	3p/380v/50Hz	R404A	Water  cooling	630
LR-5T	5T/24H	Bitzer	19.6	3p/380v/50Hz	R404A	Water  cooling	760
LR-8T	8T/24H	Bitzer	26.6	3p/380v/50Hz	R404A	Water  cooling	968
LR-10T	10T/24H	Bitzer	32.5	3p/380v/50Hz	R404A	Water  cooling	1260
LR-15T	15T/24H	Bitzer	58	3p/380v/50Hz	R22	Water  cooling	2120
LR-20T	20T/24H	Bitzer	63	3p/380v/50Hz	R22	Water  cooling	2860
LR-25T	25T/24H	Bitzer	75	3p/380v/50Hz	R22	Water  cooling	2940
LR-30T	30T/24H	Bitzer	86	3p/380v/50Hz	R22	Water  cooling	3240
