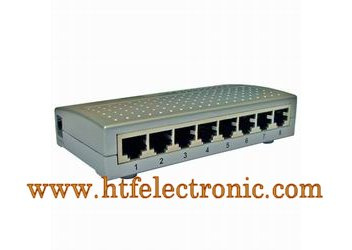

8p 10/100 Ethernet Switch
| Price: |
Negotiable |
| Trade Terms: |
by sea/by air/by courier |
| Min Order: |
2000/Piece |
| Prod Model: |
HT-S1008V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transfer Rate: |
100Mbps |
| Ports: |
8 |
| Application: |
Enterprise |
| Type: |
Wired |
Product Description
Feature:
Complies with IEEE 802.3, IEEE 802.3u standards
8 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
Supports MAC address auto-learning and auto-aging
LED indicators for monitoring power, link, activity
Plastic case, desktop
External Power Adapter supply
Standard :
Network protocol |
IEEE802.3 10Base-T, IEEE802.3u 100Base-TX |
Ports |
8 10/100Mbps Auto-Negotiation ports |
Network Media(Cable) | 10Base-T: UTP category 3, 4, 5 cable (maximum 100m),EIA/TIA-568 100Ù STP (maximum 100m),100Base-Tx: UTP category 5, 5e cable (maximum 100m),EIA/TIA-568 100Ù STP (maximum 100m) |
Swiching capacity |
1.6G |
LED Indicators |
100Mbps Link/Act |
Transfer Method |
Store-and-Forward |
MAC Address Learning |
Automatically learning, automatically Update |
Frame Filtering and Forward Rate |
10Mbps: 14880pps, 100Mbps: 148800pps |
Environment |
Operating Temperature: 0degree~40degree(32 F~104 F)
Storage Temperature: -40degree~70degree(-40 F~158 F)
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing |
