| Prod Model: |
car-08xb |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
220V/1pH/50Hz |
| Mode: |
Car-08xb |
| Heating Capacity: |
7.1kw |
| Regrigerant: |
R410 |
| Cop: |
4.18 |
| Noise Level: |
48 |
| Brand: |
Clitech |
| Dimension: |
1000mm*300mm*620mm |
| Weight: |
85kgs |
| Heat Exchanger: |
Tube in Tube |
| Heat Temperature: |
50-70??C |
| Work Environment: |
Common Heat Pump |
| Heat Source: |
Air-source |
| Application: |
Office Building, Restaurant |
| Certification: |
CCC |
Product Description
air source heat pump water heater
8KW for heating and hot water
panasonic compressor with R410A
tube in tube heat exchanger , copper or sus 316
range can be 5-100kw
OEM ODM
| Air source heat pump water heater |
| Model | Unit | CAR5XB | CAR8XB |
| heating capacity | KW | 4.83 | 7.1 |
| Hot water supply | Ton/Hr | 0.1 | 0.15 |
| Input power | KW | 1.15 | 1.7 |
| COP |
| 5.2 | 4.18 |
| Power supply | V/PH/Hz | 220V/1ph/50Hz |
| Noise Level | dB(A) | 48 | 50 |
| Net Dimension | Width | mm | 930 | 1000 |
| Depth | mm | 280 | 300 |
| Height | mm | 550 | 620 |
| Unit weight | KG | 75 | 85 |
| Throtting Type |
| Electric expansion valve /Thermalexpansion valve |
| Refrigerant |
| R410A |
| Compressor | Type |
| Sanyo Rotary |
| Qty | Piece | 1 | 1 |
| Air source heat exchanger | Type |
| Finned heat exchanger |
| Qty | Piece | 1 | 1 |
| Fan type |
| Axial big twist fan |
| Motor Power | KW | 0.04 | 0.05 |
| Hot water side heat exchanger | Type |
| Efficient tube in tube heat exchanger |
| Water flow | M3/h | 0.84 | 1.22 |
| Water pressure down | kPa | 20 | 20 |
| Pipe size | Inch | 3/4 |
| Water side max working pressure | kPa | 1000 |
| Notes |
|
|
|
|
| Testing:DB/WB 20ºC/15ºC. |
|
|
|
|
The inside picture for air source hot water heat pump

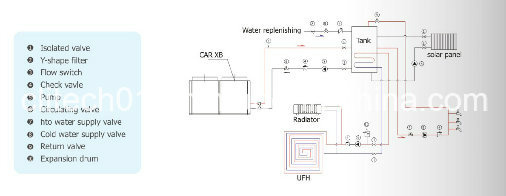

The installation for air source hot water heat pump
The strong ply--wood packing
Clitech factory established in 2008 years in foshan city, Guangdong province. Now we already developed stable and being the main export heat pump manufacture in China. Every year we will focus new technology heat pumps, and developed more good quality and more stable heat pump to our customers. Our heat pumps certificated ISO, 3C and CE, which have been sold to more than 90 countried and areas all over the world. Our good quaity, high technology and nice service is high praised by our customers.
Our main product fosuc on heat pump, which including air source hot water heat pump 5-100KW heating capacity; Air source heat pump for heating and cooling range from 8kw to 530kw; DC Inverter air source hot water heat pump 11-18KW; Ground source hot water heat pump 8-350KW heating capacity; Water source heat pump for heating and cooling range from 10KW to 290kw; High temp air source heat pump with 70 degree outlet water temp range from 12kw to 80kw; And swimming pool air source heat pump range from 8kw to 100kw, and multi-functional air source heat pump for heating, cooling and hot water from 12ke to 100kw; Multi-functional water source heat pump for heating, cooling and hot water range from 8kw to 48kw and EVI air source heat pump water heater range from 12kw to 80kw. Our heat pump can apply for small and big projects also in domestic and abroad marketing. OEM service can afford too.
Our heat pumps apply for domestic and commercial projects, hospital, office building, domestic home, factory, hotels and restaurant, swimming pools or SPA pools, holiday villages, schools or university and so on, its most for the necessary areas for heating, cooling or hot water. Our heat pumps can connect with solar, fan or floor heating. Its can save lots of energy everyday, its good for the development all over the world...Also saft in our life.
We will afford the nice and professional after-sale service. Maybe the world economic developed fast and fast, hope we not just being customers and supplier, hopely one day we can share the interests and being nice friends.
If you are intested in our heat pumps, welcome to contact us.
