| Prod Model: |
AT-HD6008+ camera |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| WiFi: |
Can View Live Video by Smartphone PC Via WiFi |
| Recording Rate: |
1920*1080, 30fps Per Channel Full Realtime |
| Backup: |
Internal SATA or SSD 2.5" Hard Drive, up to 2tb |
| Power Input: |
DC 8-32 V |
| GPS Tracking: |
Support (Optional) |
| 3G/4G Network: |
Support (Optional) |
| Video Compression: |
H.264 |
| Compressed Format: |
H.264 |
| Operating System: |
Linux |
| Audio Input/Output: |
8 Channel |
| Remote Control: |
Without Remote Control |
| Type: |
Mobile DVR |
| Application: |
for Vehicle, Bus, Car, Truck, Taxi Surveillance |
| Interface Type: |
HD Sdi 1080P |
| Video Input/Output: |
WiFi Connection with PC or Smartphone |
Product Description

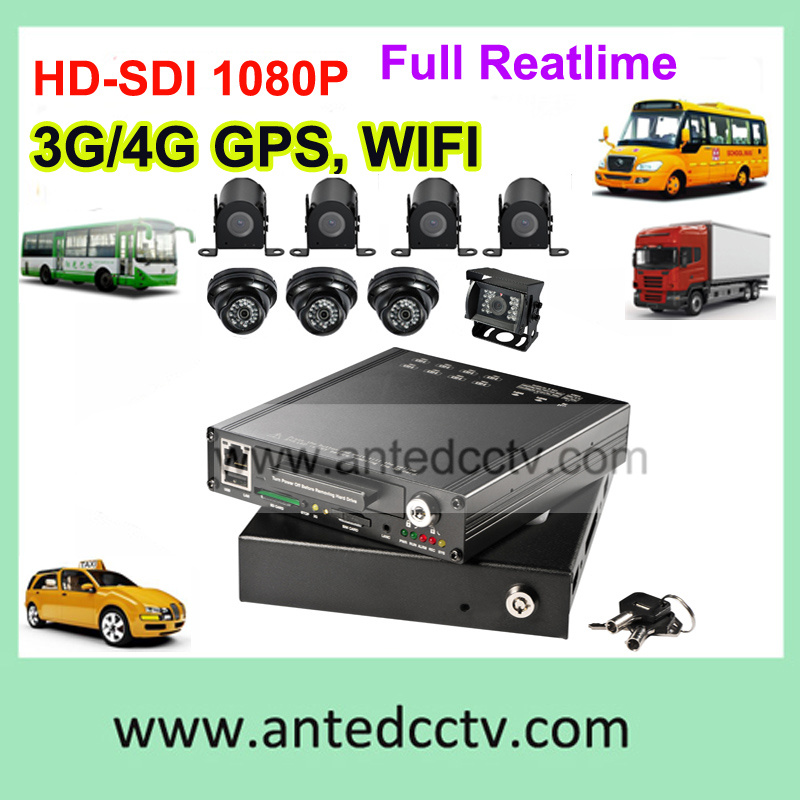

8Ch H.264 Real-time Recording Mobile DVR HDD Back-up Vehicle CCTV DVR Security SystemsThe 4/8CH HD Mobile DVR allows up to 8 true high definition (1920*1080) cameras to record the highest video quality. Each camera supports up to 1080p 30fps, ideal for capturing vehicle plate number.
Video live view or download through WiFi (built-in)
Administrative personnel can use a laptop/smart phone/iPad to connect to the DVR to view and/or download videos. Allow three authorization levels for security access.
Highlighted features with 3G/4G network
. Remotely Live view & GPS tracking on Google Map;
. GPS track playback;
. Geo-fencing with optional GPS receiver;
. One picture will be sent to server as well as email alert when an alarm is triggered;
. Reports for Speed, Alarm, Stop, Geo-fencing, Data flow, etc.

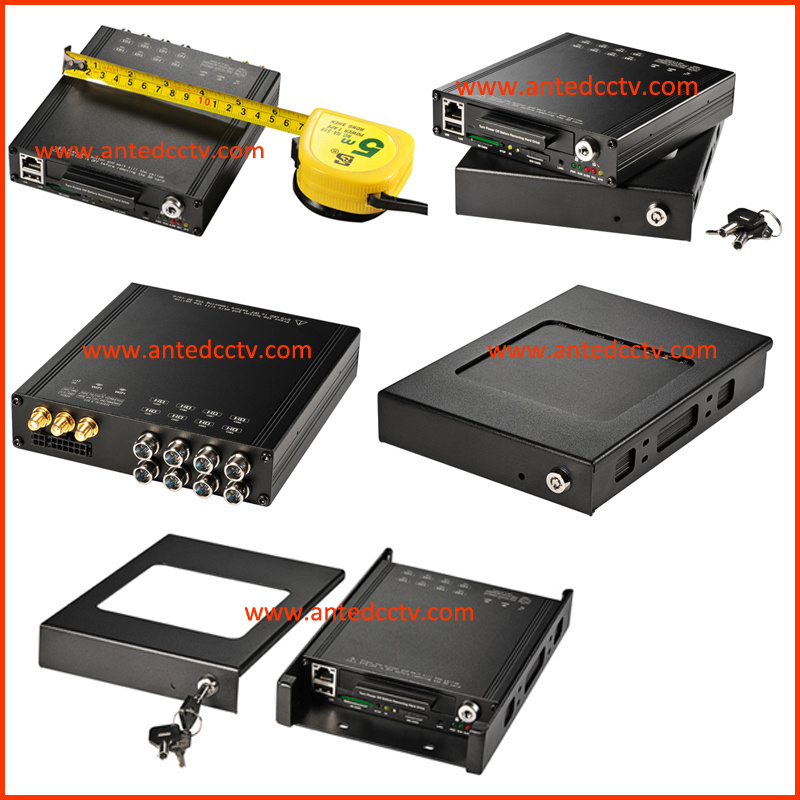

The smallest size for a 4/8-Channel Hard Drive DVR
Size of the 4/8CH HD Mobile DVR is very compact, only 5.63 "x 5.2" x 1.18 " ( 14.3cm x 13.2cm x 3cm ), allowing for exceptional versatility in mounting and installation. With a compact footprint and solid-state design, the 1080P High Definition Bus Camera Recorder can be mounted almost anywhere in any orientation.
Only 1.08 per unit with case!!
Weight of the 4/8CH HD Mobile DVR is very light due to its compact size. This will greatly save you shipping & duty costs, make your selling price unbeatable.
| SPECIFICATIONS of 4/ 8 channel Hard Drive Mobile DVR |
| Model | AT-HD6004/ 6008 |
| System | Operating System | Linux 2.6 |
| Start up Time | 20 seconds (From power on to recording) |
| Operator Interface | English / Simplified Chinese/Russian |
| Storage | 2.5" Hard Disc Drive or SSD (up to 2TB), SD Card (up to 128GB) |
| Video System | H.264 Main/High Profile, HD 1080p30/720p30 Recording for each channel |
| Voltage Input / Output | Input: 8 V ~ 32 V DC, Output: 12V/1.5A (4 channels) |
| Video | Video Input | Maximum 8 x 1080p30/720p30 camera inputs |
| Live Video View | PC/Note book/iPhone/iPad/Android Pad/Android Phone |
| Preview | 1 image / 4 images |
| Standard Stream | ISO 14496-10 |
| Recording Resolution | Selectable (1920x1080, 1280x720, 960x540) |
| Recording | Supports normal, schedule, alarm recording and continuous |
| Video Compression | H.264 (High profile up to level 4.1) |
| Max fps (total) | 30fps@1080p/channel |
| Audio | Audio Input | 4 channels |
| Audio compression | AAC (16bit, 48KHz) |
| Interface I/O | LAN | RJ-45 10M/100M Ethernet port |
| USB | Supports USB 2.0 for U-Disk recording |
| Serial | RS-232×1 |
| Network | WiFi | Build in 802.11b/g/n AP, speed up to 300Mbps |
| Protocolo | TCP/IP |
| Communication | 4G/3G/EDGE/GPRS/CDMA (Optional) |
| Alarm & Sensor | Inputs | 3 Alarm input, 1 ignition, 1 Panic button, G-Sensor |
| Outputs | 1 Beeper, Alarm LED, Email |
| Multi-mode | Activation by video loss, maximum permissible speed, Collision, SD space, Video Motion, etc.. |
| Power Supply | Ignition key | Recording starts when ignition is on, stops with delay time when ignition is off. |
| Power Consumption | Average 2.0W (without SD/SSD/HDD and without providing power for the cameras) |
| Physical Characters | Dimension | 14.3cm x 13.2cm x 3cm (5.63 "x 5.2" x 1.18 ") |
| Weight | 1.08kgs |
| Others | Backup | By WiFi (300Mbps, Actual download speed up to 150Mbps) |
| Clock | Internal, permanent calendar, Time sync from GPS (if available) |
| GPS | External GPS module (Optional) |
| Function Dual Streaming | Allows you to configure the frame rate of different transmission frame rate recording and bandwidth control |
| Self-protection | Protection against overload, short circuit and reverse polarity |
| Reset | Option to return to factory default setting |
| Storage memory | 2.5"SSD/HDD x1, SD card x 1, USB 2.0 x1 |
| LED's | Indicates Power, RUN, Alarm, Media Access, Recording status, network and 3G |
| Method of writing and reading of data | Overwrite ON/OFF selectable |
| Synchronization time | GPS Time Synch / NTP (Network Time Protocol) Time Synch via networking |
| Environment | Operating Temperature | -10 ~ 60°C |
| Relative humidity | 5% - 95% |
| Vibration resistance | < 3 Grms |
| Resistance to mechanical shock | < 1200 Grms |
| Embedded Software | Config. FPS per channel | allows (1~30fps) |
| ID records vehicle license plate | allows |
| USB | Record, Backup |
| Rename channels | allows |
| Watermark | fixed |
| Schedule | Settings year, month and hour |
| Image Playback | Includes date and time, latitude and longitude, vehicle speed, and vehicle ID plate and name or channel number |
| Playback Speed | Speed forward 1x ~ 16x |
