| Prod Model: |
OP8751G03W(Cross and Match) |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Size: |
860*500mm |
| Number Of Burner: |
5 |
| Type: |
Built-in Gas Cooker |
| Ignition Mode: |
Pulse-Jet Ignition |
| Material: |
Ceramic / Glass |
Product Description
1. Tempered Glass Framework
2.5 Burners, including 1 wok
3. Several Optional Features

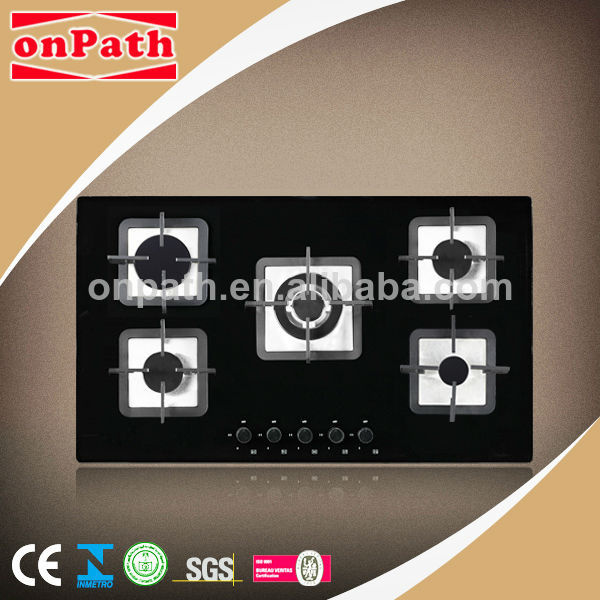

870*510mm 5 Burners High Pressure Tempered Glass Gas Stove Cross and Match
1.Description:
|
Item No.: |
OP8751G03W(Cross and Match) |
|
Panel Material: |
Tempered Glass Panel |
|
Pan Support: |
√ Enameled |
|
|
Cast Iron(Optional) |
|
Knob:8 choices(See Picture) |
Bakelite Knob or Zinc Al-alloy Knob |
|
|
Side Controls |
|
Cap:(See Picture) |
Enameled Matt Finish or Shining Finish |
|
Burners:(See Picture) |
Flame failure device(Optional) |
|
|
1 Wok, 2 Semi-Rapid Burner, 1 Auxiliary Burner(Optional) |
|
Burner Heat Input( kw): |
Upper - left :2.8 Upper - right : 1.75 |
|
|
Middle:3.3 |
|
|
Lower - left :1.75 Lower - right : 1.0 |
|
Type of Ignition |
Pulse/AC Ignition( Battery Ignition Optional ) |
|
Gas Category |
2800 Pa(L.P.G.) ;2000 Pa(N.G.) |
|
Power Range |
1.5V( Battery), 127V/220V/230V(AC Ignition) ;50-60Hz |
|
|
|
|
Neutral Packing |
1) 1 pc gas stove
2) 1 pc instruction manual
3) 1 pc standard carton box with foam inside(color carton optional) |
|
|
Product Size(mm) :870*510 |
|
|
Packing Size(W*D*H)(mm): 910*550*175 |
|
|
Loading Quantity (20'/40'/40HQ)(pcs): 312/650/750 |
|
Remarks: |
The price listed is for reference only,for latest price please contact us directly. |
|
Jiangmen City Onpath Technology Industry Co., Ltd., formerly known as an exclusive HK-invested molding and injection factory, was establishedin 2005, located in Pengjiang district, Jiangmen city, Guangdong province which covers more than 6000 square meters and 120 employees, specializing in kitchen appliances development and manufacturing.
Onpath has comprehensive workshop and advanced equipment, most importantly, and management, quality control system, concept of business win-win solution as well. The mission of Onpath is to offer the widest possible choice in the specific field of gas hobs, trying to satisfy the greatest number of customers all over the world.
Fukuda air tightness test machine, Kawasaki gas flow test machine, Testo Co-analyser, customized and automatic key parts test machine, the advanced and precise equipments are standby in Onpath lab to control fundamental quality needs, in addition, onpath implements comprehensive quality control, ranging from finishing to performance, from manufacturing to logistic, from parts to whole unit test, etc. Furthermore, our gas hobs has attained CE approval for EU customer demands. All the measures are to provide our partner a reliable product and long term business.
Onpath win the new and old customers trust with the high quality and good after-sales. Meanwhile, Onpath do much about the technology and qualitication traning for staff. Excelent management, experience and professional training were introduced to built the firm root for company development. Onpath have the CE cetificate with the great quality confidence. The higer demand from customers the better we can do. Products are sold to regions that including Europe, South America, Middle East, and Africa. The extensive distribute channels, the flexible operating mode plus the professional products, all of them make the company have the rapidly development bedrock.
Onpath is open to build smooth business relationship with all partners, develop strategic cooperation with suppliers and buyers. Onpath believes cooperation on path, miracle on path!
