| Prod Model: |
GLH84F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operating Temp: |
-40~60 |
| Mounting: |
Wall Hanging or Floor-Standing |
| Backlight Technology: |
LED |
| Contrast Ratio: |
1000:1 |
| Diagonal Size: |
84" 16:9 |
| Brightness: |
3000, 2500, 2000, 1500, 1000, 700, 500, 450nits |
| Interfaces: |
USB, RJ45, CF, SD, AV, VGA, HDMI, DVI |
| Power Consumption: |
1400W |
| Glass,Fram: |
Thick Tempered Glass, Metal Frame |
| Control Method: |
TCP/IP/USB/CF/SD Card, Android or Windows OS |
| Application: |
Outdoor AD Player |
| Installation: |
Vertical |
| Type: |
Touch Screen Panel AD Player |
| Touch Screen Type: |
Capacitive |
| Screen Technology: |
LCD |
| Remote Control: |
With Remote Control |
| Customized: |
Customized |
| Screen Size: |
84" 16:9 |
| Interface Type: |
USB, RJ45, CF, SD, AV, VGA, HDMI, DVI |
| OS: |
Android or Windows |
Product Description
LCD Display
Lcd Touch display
Project
Specifications
Model
GLH84F
Screen Size
84inch
Installation methods
Floor-standing
Resolution
1920*1080
Brightness
500cd/m2(450-1000cd/m2)
Contrast
1000:1
Reaction time
6mS
Display color
16.7M
Display area
1860*1047mm(Length*width)
View angel
178/178
Backlight lifetime
50000H
Operating temp
-40~60C
Storage temperature
-20~60C
Power
DC24V/AC110-220V
Power consumption
1400W
Automatic ON &OFF
Support
Protection rating
IP65
Product Description
Its working temperature ranges from -40 to +60
IT adopts precise air-conditioner temperature control
Color display is bright and vivid and the resolution is as high as 1920*1080
With protection level IP65,it is water proof ,dust proof ,anti-corrosion and anti-theft.
It owns multiple innovative patents.
1.Jiangsu Optimum Information Technology Co.,Ltd was founded in 2006, our company has focused on digital signage production and sales.Technicians of our company owns in the display industry for many years, has rich display product solutions and field experience, for customers tailored a variety of display solutions.
2.Product information:
We can provide users with indoor ,outdoor ,transparent , long LCD bar,, monitor,, touch all-in-one PC, etc.According to customer needs, we can provide various brightness of outdoor LCD display products,the brightness is from 1500nits to 3000nits.
Dimensions: 17 ", 19 inch, 22, 23 inches, 26, 32 inch and 42 inches, 47, 55, 65 inches and 65 inches, 82, 84 inches and 98 inches and 110 inches and a variety of indoor and outdoor large size display products.
3.We attach importance to intellectual property rights, we has applied for a number of invention patents on outdoor display products and the patent for utility model.So far, we has been successfully registered GAOLUE, DualCool trademark.
4.Jiangsu Optimum Information Technology Co., LTD. has always been to take off with customers, employees, shareholders and society as our mission, at the same time, in good faith, the principle of hard work, its own technical force, quality and efficient service criteria, for the general customers to provide satisfactory digital signage products.

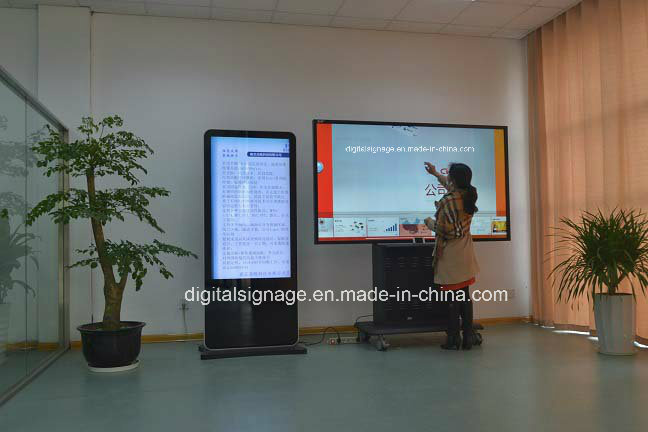

Case Showing:
Company Showing:
Purchase guide:
It can be applied to all of our products.The final parameter is going to be confirmed in our order.
Do we offer tailor-made products?
Yes, we do.We are a professional LCD display manufacturer.We offer various tailor-made product selections, for example, material, color and screen size.
Selections of screen size:
We offer LCD displays, single screen size from 3.5 inch to 110 inch, including outdoor LCD display, transparent LCD display, touch screen LCD display, water proof LCD display etc.
Our size selection range :3.5inch,5.7inch,6.5inch,7inch,8inch,8.4inch,10.4inch,12.1inch,13.3inch,14inch,15inch,15.6inch,
18.5inch,19inch,21.5inch,32inch,42inch,46inch,47inch,50inch,55inch,58inch,60inch,65inch,70inch,72inch,75inch,80inch,82inch,84inch,85inch,90inch,95inch,98inch,100inch,103inch,110inch
Recommend size:
15.6inch,18.5inch,21.5inch,32inch,42inch,46inch,47inch,55inch,65inch,70inch,84inch
Definition selection:
In common conditions, we recommend you buying products with 1920*1080 definition.We can also offer you with 4k definition products, 3840*2160 for example.
Input signal selection:
Our LCD products support various signal input solutions.
Monitor:VGA,DVI,HDMI,DisplayPORT, and USB(simple video and photo display )
Digital signage:
Digital signage is used for public information broadcast.We offer products with simple operation edition, android internet edition, PC internet edition.
Simple operation edition:
Suitable for places using several digital signage displays.To make it auto-display, all you need is to copy photos and videos into a USB disk and insert it into the digital signage.
2.Android internet edition:We can offer A7, A9 etc dual-core and quard-core processor editions.Our products support android 4.2, 4.4 or more.
3.PC internet edition:Mainly related to CPU selection as below
CPU selections ( PC series)
INTEL series products are recommended.
1037 U - it satisfies most people's internet surfing and office work needs.
I3 - it runs the software smoothly in most of the application
I5 - it runs faster
I7 - it is the fastest processor, and also the most expensive one.
Touch screen selection:
We recommend capacitive touch screens.We also provide infrared touch screen, resistive touch screen, sonic wave touch screen, and nanometre touch screen.
Broken proof selection:
Indoor product - For offices, no need for proof products.You may choose cheaper ones without light reflection.
For public or factory usage, you need to choose products with toughened glasses.
Outdoor product - you need to choose products with toughened glasses or doubling glasses.
Water proof selection:
For outdoor, kitchen, bathroom, and factory and other conditions, you need to choose displays with proof function.
Brightness selection:
Nits and cd/m2 are the same unit used for brightness.For example 300nits=300cd/m2.The brightness of our computer is about 200~300 nits, and the brightness of a family TV is about 300~500 cd.For outdoor displays, 1500 nits is acceptable for reading, and 2000 nits is much better and comfortable for reading effect.
Operating system
Android
Supported operating systems
Android 4.4
CUP ( Optional )
A210/A310,2G / 4G
Store
2G
Memory
2G/4G
