| Prod Model: |
ZBJ-80P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity(Kg/24h): |
80 |
| Ice: |
Cube |
| Ice Size (Mm): |
32*32*32 |
| Size (Mm): |
677X575X980 |
| Ice Storage Capacity (Kg): |
25 |
| Net Weight (Kg): |
62 |
| Packing Size (Mm): |
730X630X1030 |
| Control: |
Electric |
| Power: |
200W-400W |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Application: |
Household |
| Condensing Mode: |
Air-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Ice Shape: |
Cube, Tube, Flake, Plate, Snow, Block |
Product Description

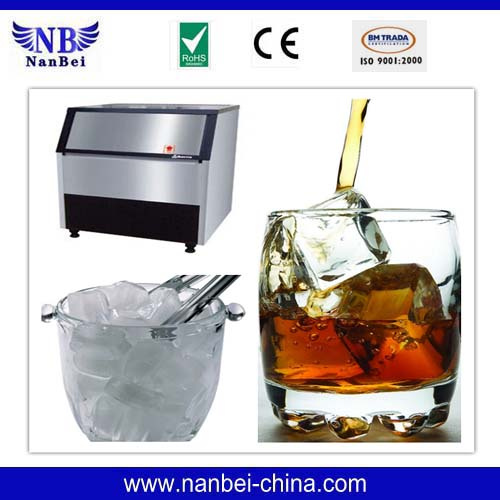

Cube ice maker
Characters:
1.Selection of imported Danfoss, Taikang, Electrolux, Copeland, Bitzer Compressor, reliable quality and stable performance.
2.Ice box, cylindrical ice, freezing up to minus 20 degrees.
3.High hardness and low temperature of the ice. Ice crystal clear, easy to melt fast cooling items
4.Ice beautiful appearance, not easy to stick the group,with ice convenience
5.Microcomputer control,water, drainage, Ice-making fully automated, no special operation
6.Science configuration of the condensing system and condensing temperature sensing device can adapt to different ambient temperature
7.Stainless steel. Corrosion-resistant, easy to clean..
8.The thickness of the ice can be adjusted.
9.Energy-saving: comparing with the similar products,it can save one-third energy.
10. Europe's most state-of-art ice-making technology,reasonable design,excellent performance.
Parameters:
| Model | Capacity(kg/24h) | Ice size (mm) | Size(mm) | Net weight (kg) | Gross weight
(kg) | Power (w) | Ice storage capacity (kg) | Packing size (mm) |
| ZBJ-15P | 15 | 24x24x24 | 379x420x675 | 30 | 32 | 350w | 7 | 430x470x750 |
| ZBJ-23P | 23 | 32x32x32 | 379x420x675 | 30 | 32 | 350 w | 7 | 430x470x750 |
| ZBJ-35P | 35 | 32x32x32 | 500x575x750 | 42 | 45 | 440 w | 11 | 560x630x965 |
| ZBJ-40P | 40 | 32x32x32 | 500x575x895 | 46 | 52 | 490 w | 15 | 560x630x1030 |
| ZBJ-60P | 60 | 32x32x32 | 677x575x980 | 58 | 65 | 550 w | 15 | 730x630x1030 |
| ZBJ-80P | 80 | 32x32x32 | 677x575x980 | 62 | 67 | 665 w | 25 | 730x630x1030 |
| ZBJ-100P | 100 | 32x32x32 | 677x575x980 | 65 | 70 | 1100 w | 25 | 730x630x1030 |
| ZBJ-40L | 40 | 22x22x22 | 500x585x895 | 46 | 52 | 490w | 18 | 560x630x1030 |
| ZBJ-60L | 60 | 22x22x22 | 677x585x895 | 58 | 65 | 550w | 25 | 730x630x1030 |
| ZBJ-80L | 80 | 22x22x22 | 677x585x895 | 58 | 65 | 655 w | 25 | 730x630x1030 |
| ZBJ-100L | 100 | 22x22x22 | 677x585x895 | 58 | 65 | 1100 w | 25 | 730x630x1030 |
| ZBJ-150L | 150 | 22x22x22 | 764x606x559 | 78 | 86 | 1400 w | 130 | 840x680x670 |
| 53 | 764x780x840 |
| ZBJ-200L | 200 | 22x22x22 | 764x606x559 | 78 | 86 | 1600 w | 130 | 840x680x670 |
| 53 | 764x780x840 |
| ZBJ-248L | 248 | 22x22x22 | 764x606x559 | 78 | 86 | 1800 w | 130 | 840x680x670 |
| 53 | 764x780x840 |
| ZBJ-300L | 300 | 22x22x22 | 764x606x730 | 85 | 90 | 2000 w | 130 | 840x680x840 |
| 53 | 764x780x840 |
| ZBJ-400L | 400 | 22x22x22 | 764x606x730 | 95 | 100 | 2300 w | 150 | 840x680x840 |
| 53 | 764x780x840 |
| ZBJ-500L | 500 | 22x22x22 | 764x606x780 | 95 | 100 | 2500 w | 230 | 840x680x900 |
| 55 | 764x780x1040 |
| ZBJ-650L | 650 | 22x22x22 | 1212x606x730 | 120 | 130 | 4000w | 230 | 1260x680x840 |
| 100 | 1212x780x840 |
| ZBJ-700L | 700 | 22x22x22 | 1212x606x730 | 120 | 130 | 4000 w | 230 | 1260x680x840 |
| 100 | 1212x780x840 |
| ZBJ-800L | 800 | 22x22x22 | 1212x606x730 | 150 | 170 | 4500w | 230 | 1260x680x840 |
| 100 | 1212x780x840 |
| ZBJ-1000L | 1000 | 22x22x22 | 1212x606x730 | 150 | 160 | 5000 w | 230 | 1260x680x840 |
| 100 | 1212x780x840 |
Snow ice maker
Characters:
1. Used the Italy Haitec reducer and Korea GGM motor, with low noise and stable performance
2. With shutdown protection,when the ice is full or water shortage etc.
3. Full computer control during the whole ice-making process with imported chips to control reliable and smooth operation.
4. Electrical safety components are certificated by TUV and VDE
5. Spiral extrusion hob ice type, compact structure to achieve ice,water automatic separation.
6. The unique tank float-type water system to ensure that no residual water,saving water and energy.
7. The ice is amorphous,granular snow ice.it can penetrate into the narrow space, cooling speed.
8. With power switch and function indicator,detailed operating instructions.
Parameters:
| Model | Capacity(kg/24h | Ice storage capacity(kg) | Power | Dimension(mm) |
| NB-20 | 20 kg/24h | 10kg | 280w/220v | 330×480×605mm |
| NB-30 | 30 kg/24h | 10kg | 300w/220v | 330×480×605mm |
| NB-40 | 40 kg/24h | 15kg | 360w/220v | 400×543×720mm |
| NB-50 | 50 kg/24h | 15kg | 380w/220v | 400×543×720mm |
| NB-60 | 60 kg/24h | 25kg | 420w/220v | 400×510×825mm |
| NB-70 | 70 kg/24h | 25kg | 460w/220v | 400×510×825mm |
| NB-85 | 85 kg/24h | 25kg | 480w/220v | 400×510×825mm |
| NB-100 | 100 kg/24h | 40kg | 520w/220v | 500×611×940mm |
| NB-120 | 120 kg/24h | 40kg | 550w/220v | 500×611×940mm |
| NB-150 | 150 kg/24h | 40kg | 680w/220v | 500×611×940mm |
| NB-200 | 200 kg/24h | 60kg | 520w×2/220v | 680×611×1100mm |
| NB-250 | 250 kg/24h | 60kg | 550w×2/220v | 680×611×1100mm |
| NB-300 | 300 kg/24h | 100kg | 1360w/220v | 560×870×1580mm |
| NB-380 | 380 kg/24h | 100kg | 1520w/220v | 560×870×1580mm |
| NB-500 | 500 kg/24h | 200kg | 1650w/220v | 760×860×2050mm |
