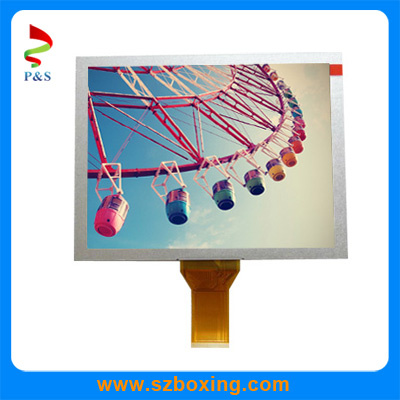

| Prod Model: |
PS080DNPN0627 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8.0 Inches |
| Resolution: |
800(RGB)X600 |
| Contrast Ratio: |
500 |
| Luminance: |
250CD/M2( Typical ) |
| Outline Dimension: |
183.0(W) ×141.0(H) ×5.6(D) |
| Active Area: |
162.0(W) × 121.5(H) |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Monitor LCM |
| Viewing Angle: |
TN＋FILM |
Product Description
1. Company advantage:
Small MOQ accepted
Competitive price and short lead-time.
ISO9001 and ROSH certificated factory supplied.
TFT LCD module, touch panel, PCB with SMT/COB solutions
2. Application:
Consumer electronics/automotive/ telecoms and data transfer/medical instruments/security management /signs and display/point of sale, EPOS /Energy control/amusement and gambling machines/white goods, GPS navigator
3. Quality Control:
Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
|
Optical Specifications |
|
Item |
Symbol |
Condition |
Values |
Unit |
|
Min. |
Typ. |
Max. |
|
Viewing angle(CR≥10) |
θL |
Φ=180° |
60 |
70 |
– |
degree |
|
θR |
Φ=0° |
60 |
70 |
– |
|
θT |
Φ=90° |
40 |
50 |
– |
|
θB |
Φ=270° |
60 |
70 |
– |
|
Response time |
TON |
Normal
θ=Φ=0° |
– |
10 |
20 |
msec |
|
TOFF |
– |
15 |
30 |
msec |
|
Contrast ratio |
CR |
400 |
500 |
– |
– |
|
Color Chromaticity |
WX |
0.26 |
0.31 |
0.36 |
– |
|
WY |
0.28 |
0.33 |
0.38 |
– |
|
Luminance |
L |
200 |
250 |
– |
cd/m2 |
|
Absolute Max.Rating |
|
Item |
Symbol |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Supply voltage |
VDD |
-0.3 |
– |
5.0 |
V |
– |
|
Operating temperature |
TOPR |
-20 |
– |
70 |
degree |
– |
|
Storage temperature |
TSTG |
-30 |
– |
80 |
degree |
– |
|
Backlight Driving Conditions |
|
Item |
System |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Voltage for LED Backlight |
VL |
9.3 |
9.9 |
10.5 |
V |
|
|
Current for LED Backlight |
IL |
162 |
180 |
198 |
mA |
|
|
LED Life time |
– |
20,000 |
– |
– |
Hr |
|
Shenzhen Boxing World Technology Co., Ltd. is a Shenzhen based company who is one of the leading technology-intensive service companies for LCD, LCD module products and total solutions of panel application.
Ever since founded, P&S has developed huge LCD module products and solutions of panel application based on our vast supplier network. It is our core-competitiveness that we have been able to provide complete value-added service to every our existing and potential customers.
Our key service covers the products of LCD module, touch panel, PCB with SMT/COB solutions and other electronic component. We cooperate with and market products from the Chinese leading manufacturers; They are spread all over the world and have roots in the markets where the newest innovation and high technological products are.
With our depth in LCD product knowledge and our comprehensive business network, P&S has long been committed to acting as an effective bridge by providing prompt matching of potential and unique requirements of the end users worldwide
