| Prod Model: |
EJ080NA-05B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8.0 Inch |
| Resolution: |
800 X RGB X 600 |
| Pins: |
50 |
| Contrast Ratio: |
500 |
| Luminance: |
250 CD/M2 |
| Type: |
Color |
| Display Technology: |
TFT |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
Product Description

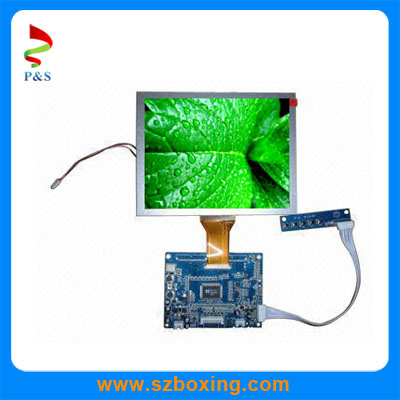

CHIMEI 8 inch TFT LCD Module EJ080NA-05B
1.Company Advantages
* Small MOQ accepted
*Competitive price and short lead-time.
*ISO9001 and ROSH certificated factory supplied.
*TFT LCD module, touch panel, PCB with SMT/COB solutions
2.General information
3.Mechanical Drawing
4.Application
5. Quality Control
Before package and shipment,the original products will be tested one by one by our technicians and QC team to male sure every product's quality is OK.
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
Before package and shipment,the original products will be tested one by one by our technicians and QC team to male sure every product's quality is OK.
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
|
Absolute Max.Rating |
|
Item |
Symbol |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Power voltage |
VDD |
-0.3 |
– |
5 |
V |
– |
|
Operating temperature |
TOPR |
-20 |
– |
70 |
degree |
– |
|
Storage temperature |
TSTG |
-30 |
– |
80 |
degree |
– |
|
Backlight Driving Conditions |
|
Item |
System |
Value |
Unit |
Remark |
|
|
|
Min |
Typ |
Max |
|
|
|
Voltage for LED Backlight |
VL |
9.3 |
9.9 |
10.5 |
V |
|
|
Current for LED Backlight |
IL |
162 |
180 |
198 |
mA |
|
|
LED Life time |
– |
20,000 |
– |
– |
Hr |
|
|
Item |
Symbol |
Condition |
Values |
Unit |
|
Min. |
Typ. |
Max. |
|
Viewing angle(CR≥10) |
θL |
Φ=180° |
60 |
70 |
– |
degree |
|
θR |
Φ=0° |
60 |
70 |
– |
|
θT |
Φ=90° |
40 |
50 |
– |
|
θB |
Φ=270° |
60 |
70 |
– |
|
Contrast ratio |
CR |
|
400 |
500 |
– |
– |
|
Color Chromaticity |
WX |
0.26 |
0.31 |
0.36 |
– |
|
WY |
0.28 |
0.33 |
0.38 |
– |
|
Luminance |
L |
200 |
250 |
– |
cd/m2 |
