| Prod Model: |
HSD080IDW1-A00 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel Size: |
8" |
| Resolotion: |
800*480 |
| Luminance: |
200CD/M2 |
| Contrast Ratio: |
500:1 |
| View Angle: |
70/70/50/60 |
| Interface: |
Ttl, 60pins |
| Outline Size: |
192.8*116.9*6.4mm |
| Input Voltage: |
3.0/10/15/-9V (Vcc/Avdd/Vgh/Vgl) |
| Display Colors: |
262k/16.1m 6bit |
| Application: |
Digital Photo Frame Panel/Portable DVD Screen |
| Touch Screen Type: |
Resistive |
| Type: |
LCM |
| Viewing Angle: |
TN＋FILM |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Non-Customized |
| Usage: |
Portable DVD |
| Digital LCD Module Type: |
TFT LCD |
| Response Time: |
5/20 Ms |
Product Description
Brand: HANNSTAR
HS: 8528511000

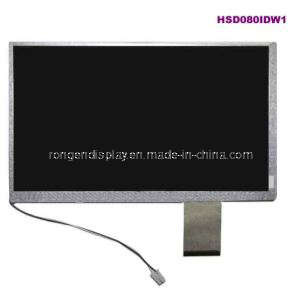

Spc: HSD080IDW1-A00 TFT 8inch LCD screens 800x480 200CD/m2
Additioal Comments:
Basic information
Panel type: a-Si TFT-LCD, panel
Operation Temperature(° C): -20 ~ 70 ° C
Storage Temperature(° C): -30 ~ 80 ° C
Vibration Resistance:2.9G(28.4m/s2)
Remarks:FPC length 72.2mm
Mechanical Features:
Pixel Configuration: RGB vertical stripes
Pixel Density:116 PPI
Aspect Ratio: 16:9 (H:V)
Surface: Antiglare,Hard coating(3H)
Holes& Brackets: Side mounting holes(4-M2)
Weight:240g
Optical Features:
Luminance: 450CD/m2
Contrast Ratio: 500: 1(Typ. )
White Variation: 1.43(Max.)(9 points)
Backlight System:
Lamp Type: WLED
Lamp Shape: Array
Lamp Life Time: 20K (Min.)(Hours)
Lamp Voltage: 12.0V
Lamp Current:120mA
Lamps Power Consumption: 1.44
Backlight interface: JST BHSR-02VS-1
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.
Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.
Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.
Further more, each unit bears SGS, TUV and RoHS marks.
The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.
Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
