| Prod Model: |
WH-0800M2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Panel: |
8'' 4:3 TFT-LCD |
| Resolution: |
800(H) X 600(V) |
| Video Inputs: |
PC Inputs(VGA) |
| System: |
PAL / NTSC |
| Control: |
IR Remote Control & Front Panel Control |
| Cerification: |
CE, RoHS, TUV/GS, Pah, ERP Certification |
| Warranty: |
1 Year |
| MOQ.: |
1 PC |
| Type: |
TFT |
| Application: |
Advertising |
| Aspect Ratio: |
4:3 |
| Feature: |
With Remote Control |
| Interface Type: |
VGA |
| Screen Size: |
8'' |
Product Description

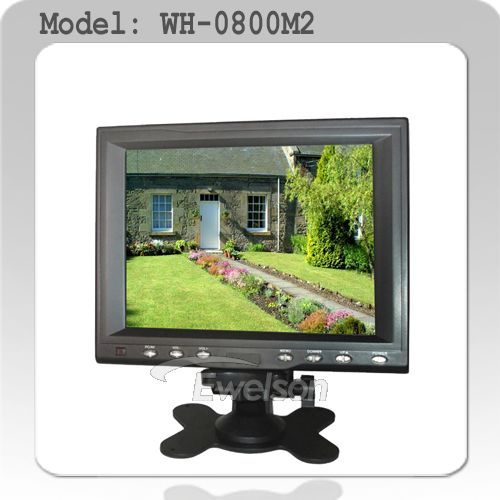

8'' CE Certification 4:3 LCD Monitor Display with VGA (WH-0800M2)
Basic Function:
1. Used for surveillance and monitoring
2. 2-CH video inputs(BNC), 2-CH switch monitoring automatically
3. PC input(VGA)
4.1-CH audio input, built-in speaker
5. PAL / NTSC
6. IR remote control & front panel control
Technology Parameter:
Screen: 8'' (4: 3)
Resolution: 800(H) X 600(V)
View Angle: 170° (H)/140° (V)
Light Transmission: > = 80%
Response Time (ms)) (Typ. ): 6
Contrast Ratio (Typ. ): 550: 1
Brightness (CD/m2)(Typ. ): 400
Working Temperature: -10 degree ~ + 50 degree
Working Humidity: 20%~80%
Power: DC 12V/2A
Power Consumption: 10W (max. In operation),
> =1W (in standby mode)
Size:
Model Size: 250(W)X 212(D) X 92(H)
Installation: Standby & Wall
Certification: Monitor: CE, RoHS, REACH
Power Adapter: CE, GS, ERP
IR Remote: PAH
Warrnty:
We would like to assure you that our products are made from top quality materials and we are 100% sure that you will be totally satisfied with your purchase.
MOQ.
1 PC
Professional LCD/LED Monitor Manufacturer in China with 11 years history.
Our Factory
My Company Introduction
Ewelson (Ewelson Electronics Co., Ltd.) was established in 2003, and we have been growing rapidly in the last four years and become a professional manufacturer and exporter in China. Ewelson has two marketing offices located in Macau and Zhuhai near Hong Kong and Shenzhen. Her factory located in the China Electronic Innovation Science and Technology Park in Zhuhai city. Product includes CCTV Camera, Megapixel IP camera, LCD/LED monitors, DVRs, digital wireless DIY kits, DVR kits, NVR kits, video door phone, pico projector and smart watch.
EWELSON has been gotten many markets throughout the world by novel design, superior. Quality and great reputation. Our products are very popular in some countries and districts such as South-East Asia, MID-East, North America, Europe, South America, etc.
Customer's satisfaction is our greatest pursuit!
Remark
Not every items there are in stock, so please contact us for confirming before
You place an order or give much more delivery time to us, by say 15-20 day so that we have enough time to produce the product special for you.
If you want to send quotation or ask for some information in detail to us, please
attach your Email Address in it so that we can reply you soon. Thank you!
Thanks and welcome for your visting!
|
Screen Size |
8' ' (4: 3 switch) |
|
Resolution |
800(H) x 600(V) |
|
Light Transmission |
≥ 80% |
|
View Angle |
120° (H)/120° (V) |
|
Video |
2 CH AV(BNC) inputs |
|
Audio |
1 CH audio input, built-in speaker |
|
Controller Interface |
IR remote control, Front pannel |
|
System |
PAL, NTSC |
|
Working Temperature |
-10 degree ~ + 50 degree |
|
Working Humidity |
20%~60% |
|
Power |
DC 12V/2A |
|
Power Consumption |
< 10W |
|
Size |
230(W)x180(D)x36(H) |
