| Prod Model: |
AT-S104P22_01M2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Temperature: |
-20~70 Degrees |
| Type: |
LCD Monitor |
| Material: |
LCD |
| Color: |
Color |
| Size: |
10.4inch |

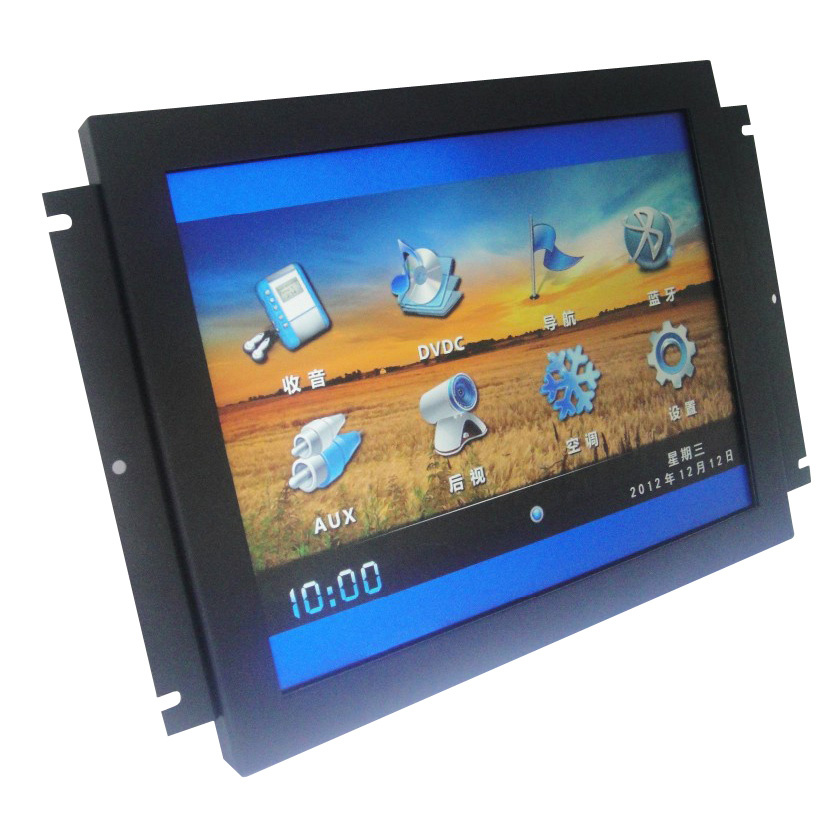

Product Description
？
Display size: 10.4-inch
Operating temperature:-20 to 70°C
Resolution: 800 (RGB) x 600 (SVGA) pixels
Storage temperature: -20 to 70°C
Contrast ratio: 400:1
Humidity: 5 to 80% RH
Brightness: 400cd/m²
Viewing angle: 70/70/50/60° (right/left/up/down)
Outline dimensions: 250.86 x 198.4mm
Pixel pitch: 0.088 x 0.264mm
Power input: 12V DC
I/O interface: VGA, USB, AV, DVI
Touch screen: optional
Response time: 15/25ms
Installation way: open frame/embedded/rack-mounted
Active area (H x V): 211.2 x x 158.4
？
SHENZHEN ATACHI TECHNOLOGY Co., Ltd is a high-tech enterprise, which is specialized in designing and producing LCD / DLP / LCOS projector AD board\CGA / EGA Monitor\Industrial LCD Monitor \Open Frame Monitor \ wide-temperature Industrial LCD Monitor and other special professional displays. And also can be oriented by customers' requirements.
Now our products have been widely used in professional equipments of precision measuring apparatus\ industry machine tool \industrial display and projectors. And are sold very well in the domestic and overseas markets such as the US, Italy, Australia, Korea, Taiwan and the mainland of China.
Our success is mainly established on the professional design and quality system including IQC\QA\QC. In the future, we will continuously improve products and service quality.
Sincerely looking forward to your cooperation.
