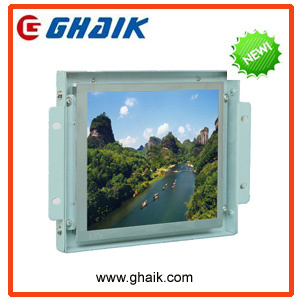

8.4" LCD Display, Open Frame Style for ATM, CNC
| Price: |
US $ 138-268/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Money Gram,Western Union |
| Prod Model: |
GHK-08OP-NB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8 Inches |
| Resolution: |
800X600 |
| Brightness: |
450 Nits |
| Backlight: |
LED |
| Signal Input: |
VGA/VI |
| Backlight Lifetime: |
50000 Hours |
| Frame Stype: |
Steel Chassis |
| Type: |
TFT |
| Application: |
Surveillance |
| Aspect Ratio: |
4:3 |
| Feature: |
LED Backlight Display |
| Interface Type: |
VGA |
| Screen Size: |
8.4" |
Product Description
LCD
Panel Type？AUO LCD Panel (Optional)
Resolution？800*600
Display Area(mm)？170.4(H)*127.8(V)
Brightness？450nits
Contrast Ratio？600:1
Colors？16.2M/262k colors
View Angle？80/80/80/60
Backlight Lifetime？50000
ODS Control？Auto Menu Select(+,-)Exit On/Off
Touch Screen
Type？No(Optional)
Resolution(pixel)？No
Signal Input？VGA+DVI(15 Pin D-sub/DVI-D Connector) AV Input/Video Input/Video Input/Audio Input(Optional)
Power
Power Input？DC12V/4A (50~61HZ)-DC Jack (2.0mm)
Power Consumption？≤36W
Mechanical
Material？Steel chassis
Mounting？Support VESA Wall Mount and Embedded Mount
Dimensions？254.0(H)*158.5(V)*34.5(D)
Environment
Operating Temp？-20~80 degree
Storage Temp？-30~80 degree
Relative Humidity？10~90% @40 degree？Non-condensing without touch screen
Vibration？1G peak,5~500Hz(Random)
Shock？15G peak acceleration (11msec.duration)
Rating？Meet EMI/EMC CE FCC Rohs
