| Prod Model: |
AMG-08OPHA02N1-V1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Active Display Area(Mm): |
170.4(H)*127.8(V) |
| Pixel Pitch(Mm): |
0.213(H)*0.213(V) |
| Contrast Ratio: |
600:1 |
| Display Color: |
16.2m/262k |
| Brightness: |
220 |
| Backlight: |
CCFL/LED |
| View Angles: |
140(H);120(V) |
| Resolution: |
800*600 |
| Power Consumption: |
DC 12V |
| Dimension: |
210*147.4*22 |
| Screen Type: |
Resistive |

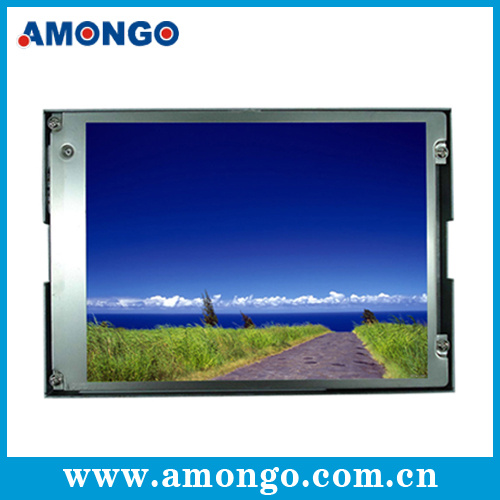

Product Description
Amongo is leading manufacture specialized in designing and producing industrial monitor, open frame, touching monitor and panle PC etc.
Featured information:
1. Amongo is a leading manufacturer specialized in designing and producing industrial LCD monitor, open frame, touching monitor and panel PC etc.
2. Professional designing, factory price and good after-service.
3. Touch panel optional, such as IR touch, Resistive touch, Capacitive touch and SAW touch etc.
4. With wide-temperature (-30 degree to 85 degree), highlight sun-readable and light sensor designing.
5. Widely application in ATM, Self-service Kiosk, Digital Signage Gaming, Industrial control etc.
6. Possess of certification of CE, FCC, CCC, CB, TCO, UL etc.
|
odel Name |
|
AMG-08OPHA02N1-V1 |
|
Screen Size |
|
8.4" |
|
Active Display Area (mm) |
|
170.4(H) x127.8(V) |
|
Pixel Pitch (mm) |
|
0.213(H) x 0.213 (V) |
|
Display Mode |
|
Normally white |
|
Display Resolution (pixel) |
|
800x600 |
|
Contrast Ratio |
|
500:1 |
|
Display Color |
|
262K colors |
|
Brightness (CD/m2) |
|
200 |
|
Backlight |
|
CCFL/LED |
|
Viewing Angles (CR =10) |
|
130(H); 110 (V) |
|
Response Time(Typ.Tr+Tf) |
|
35ms |
|
Signal Connector |
|
VGA/DVI |
|
Power Consumption |
|
DC 12V |
|
Dimension(VxHxT) |
|
210x147.4x22 |
|
Operating Temperature |
|
0~50°C |
|
Storage Temperature |
|
-10~70°C |
|
Relative Humidity |
|
5(%RH)~90(%RH) |
Amongo DIsplay Technology (Shenzhen) Co., Ltd., is a leading manufacturer specialized in designing & producing Industrial LCD Monitor, Open Frame, Touching monitor and Panel PC and etc., we developed more than 300 models LCD items as well as A/D board and inverter board. The main application is for ATM, Self-service Kiosk, Digital Signage, Gaming, POS, Medical Treatment, Media Player and other industrial control area. Any OEM product is available.
With years professional experience in industrial LCD display, strong R&D teamwork and excellent quality control system, we had cooperated successfully with some of biggest ATM manufacturers worldwide. With a large production capacity, it's available for us to do the delivery in a short time.
Amongo would like to develop together with all our customer strongly. We aim at our "good quality" "speed service" "professional and innovative work" helping you to create higher values.
