| Prod Model: |
SZTP1200-8.4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8.4" Inch |
| Structure: |
Film + Glass |
| Connector: |
Pin 4 Plug Connector |
| Thickness: |
1.4 ± 0.15 mm |
| Touch Media: |
Finger, Touch Pen, Glove |
| Type: |
4 Wire Restistive Touch Screen |
| Ratio: |
4:3 |
| Resolution: |
4096*4096 |
| Aspect Ratio: |
4:3 |
| Application: |
Security Monitoring System |
| Screen Type: |
Resistive |
| Resistive Touch Screen Type: |
Analog |
| Screen Size: |
8.4''inch |
| Customized: |
Custom Service Available |

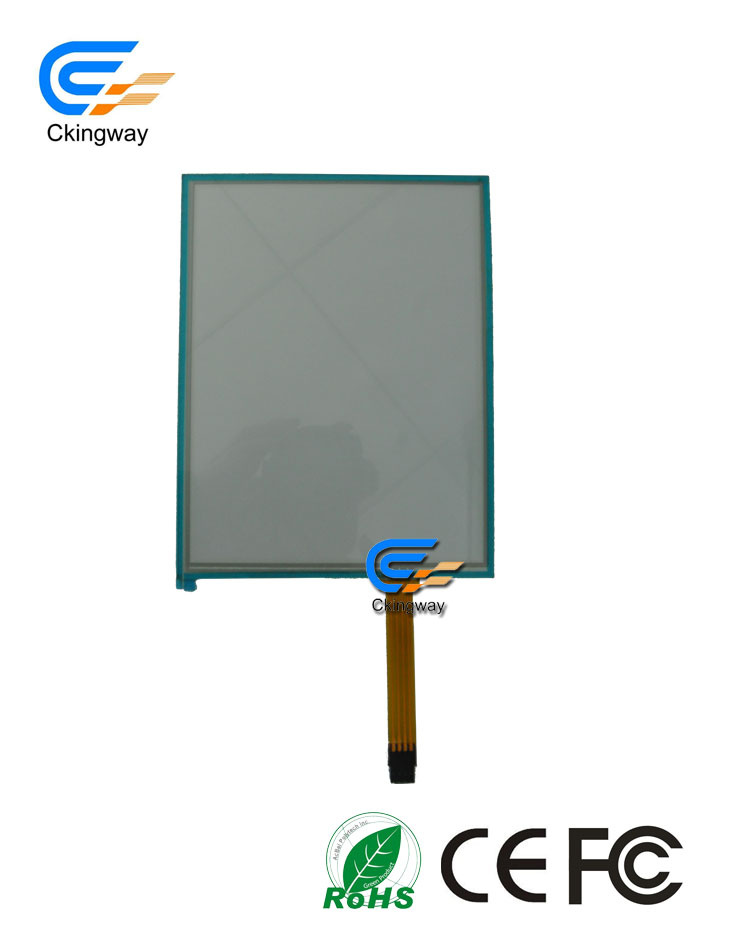

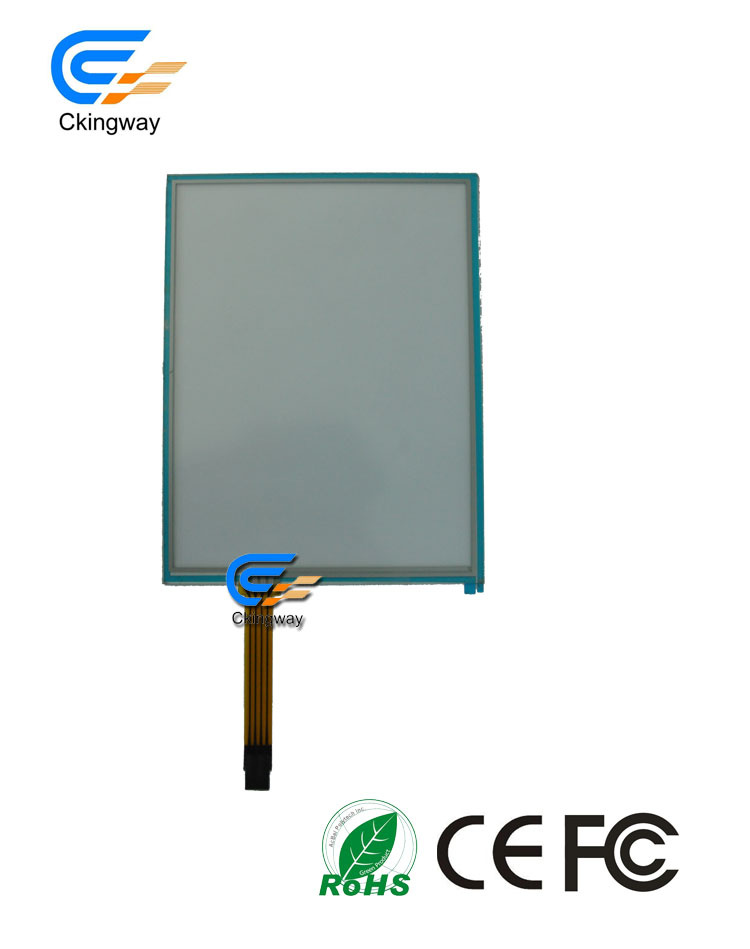

Product Description
Product Descreption The Feathers Of 8.4 Inch TFT LCD Touch Screen Adapt To Adverse Environmental Conditions As Bellow: 1.High accuracy and sensitivity.
2.Operable in various light condition.
3.Adapt to adverse environmental conditions such as liquid splashes and wash down.
4.It meet CE, FCC, ROHS certification.
| Size | 8.4" inch |
| Structure | Film + Glass |
| Connector | Pin 4 plug connector |
| Thickness | 1.4 ± 0.15 mm |
| Touch Media | Finger, Touch Pen, Glove |
| Type | 4 Wire Restistive Touch screen |
| Ratio | 4:3 |
| Resolution | 4096*4096 |
| Response Time | ≤ 10 ms |
| Supply Voltage | 5V DC; 35 mA |
| Transparent | ≤ 78% |
| Screen Resistance | X:100-500Ω Y:200-1000Ω |
| Insulation Resistance | ≥20MΩ(10V DC) |
| Pressure | 30-150g |
| Surface Hardness | 3H |
| Life Span | > 1,000,000 time knocking ;
≥ 100,000 time in paddling |
| Operating Temperature | - 10ºC ~ +60ºC |
| Storage Temperature | - 20ºC ~ +70ºC |
| Storage Humidity | 20 ~ 85% RH (except congeal fog) |
| Custom Service | Available |
8.4 Inch TFT LCD Touch Screen Adapt To Adverse Environmental Conditions for Term of payment:
1.Full payment before delivery
2.Prepay 30% as the deposite,T/T 70% the balance before delivery
3.Prepay 50% as the deposite and mould fee ,T/T the balance before delivery
4.Payment method can be nogotiated
About Warranty: 1 Year without damaged by people actions.
