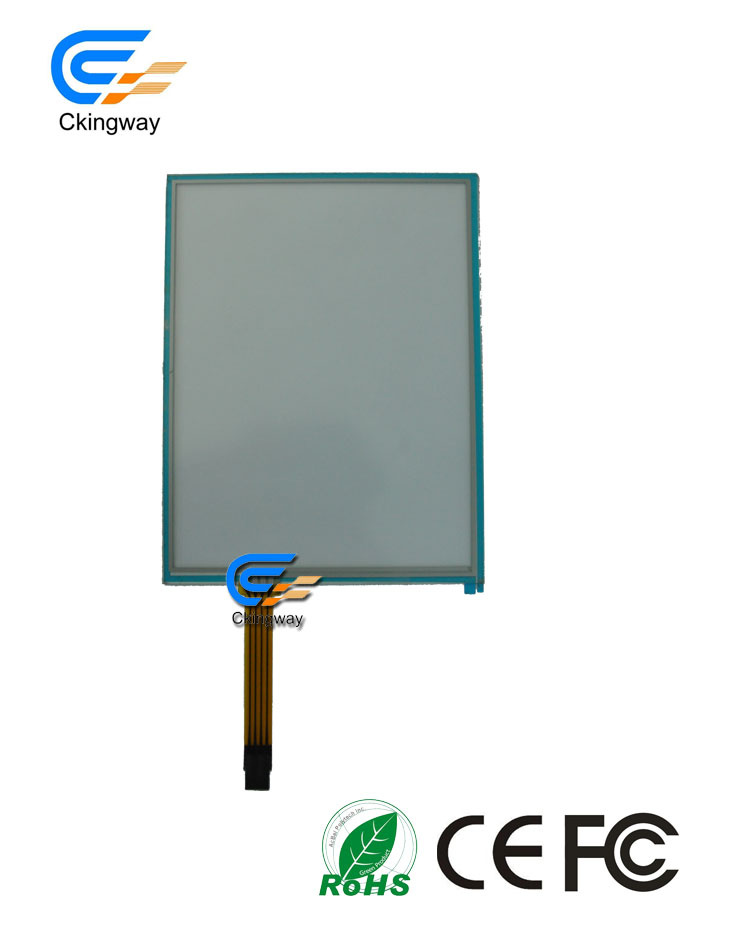

8.4 Inch LCD Touch Screen of Ckingway

Name: 8.4 Inch LCD Touch Screen of Ckingway
Brand: ec-portal.com
SKU: 782697725
Availability: InStock
Rating: 4.4 (140 reviews)

Price:	US $ 8.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	SZTP1200-8.4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	8.4" Inch
Structure:	Film + Glass
Connector:	Pin 4 Plug Connector
Thickness:	1.4 ± 0.15 mm
Touch Media:	Finger, Touch Pen, Glove
Type:	4 Wire Restistive Touch Screen
Ratio:	4:3
Resolution:	4096*4096
Aspect Ratio:	4:3
Application:	Security Monitoring System
Screen Type:	Resistive
Resistive Touch Screen Type:	Analog
Screen Size:	8.4''inch
Customized:	Custom Service Available

Product Description

Product Descreption

The Feathers Of 8.4 Inch LCD Touch Screen Of Ckingway As Bellow:

1.High accuracy and sensitivity.

2.Operable in various light condition.

3.Adapt to adverse environmental conditions such as liquid splashes and wash down.

4.It meet CE, FCC, ROHS certification.

Size	8.4" inch
Structure	Film + Glass
Connector	Pin 4 plug connector
Thickness	1.4 ± 0.15 mm
Touch Media	Finger, Touch Pen, Glove
Type	4 Wire Restistive Touch screen
Ratio	4:3
Resolution	4096*4096
Response Time	≤ 10 ms
Supply Voltage	5V DC; 35 mA
Transparent	≤ 78%
Screen Resistance	X:100-500Ω Y:200-1000Ω
Insulation Resistance	≥20MΩ(10V DC)
Pressure	30-150g
Surface Hardness	3H
Life Span	> 1,000,000 time knocking ; ≥ 100,000 time in paddling
Operating Temperature	- 10ºC ~ +60ºC
Storage Temperature	- 20ºC ~ +70ºC
Storage Humidity	20 ~ 85% RH (except congeal fog)
Custom Service	Available

About Warranty: 1 Year without damaged by people actions.
