| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 8.4"5 Wire Resistive Touch Screen: |
8.4" |
| Principle: |
Press |
| Wires: |
5 Wire |
Product Description

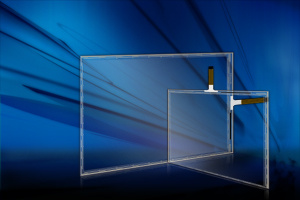

Model: 8.4" -----5 wire resistive touch screen
Constrcution Glass, uniform resistive coating, polyester coversheet, transparent insulating dots, conductive coating
Deviation of Error X≤ 1.5%, Y≤ 1.5%
Operating Force ≤ 50g
Chattering ≤ 12ms
Surface Hardness Moths 3
Life Time More than 35 million touches in one location without failure
Dust-Proof and Water-Proof Meet NEMA 4 and 12, and IP 65 standards
Transparency ≥ 82%
Operating Temperature -30° C to 80° C
Storage Temperature -40° C to 90° C
Operating Humidity 20%RH ~ 90%RH
Storage Humidity 10%RH ~ 90%RH
Agency Approvals CE, FCC, RoHS, UL
Warranty 3years
Chengdu Vtouch is a professional touchscreen manufacturer in China, with the strength of 4/5 wire resistive/ capacitive touchscreen.All our products are with CE/FCC and RoHS standards!The key raw materials are imported from Japan;The CTO, Mr.Roberto, is from Elo!
Chengdu Vtouch is a professional touchscreen manufacturer in China, with the strength of 4/5 wire resistive/ capacitive touchscreen.All our products are with CE/FCC and RoHS standards!The key raw materials are imported from Japan;The CTO, Mr.Roberto, is from Elo!
After established in 2006 in Chongqing, Chengdu Vtouch technology Co., Ltd began it's 2 yrs R&D process.Vtouch moved to Qingyang district in 3, 2008, established a new production base with the capacity of producing 30, 000 PCS of 5 wire resistive touchscreens and hundreds of working stuff, which greatly pushed the development of local economy.Based on super quality and perfect after-sales service, Vtouch Co., Ltd received lots of orders from not only in mainland China, but also all over the world, for example the USA, England, the Germany, Russia, Korea and so on.
The touch-screen industry moved into a new era after the Microsoft launched the windows 7 system which supports touching function in 2009.As the international situation of touch-screen is improving, the board of Vtouch increased the investment.A 14000 m2 modern factory with 10, 000 m2 building area was build up, non-dust plant with constant temperature and humidity was build up, advanced equipments for quality control was purchased.By now, our products are mainly used for POS, industry control, medical, inquiry and safe fields.
