Rongen Technology Co., Limited >> 7inch High Brightness TFT LCD Screen with Touch Panel

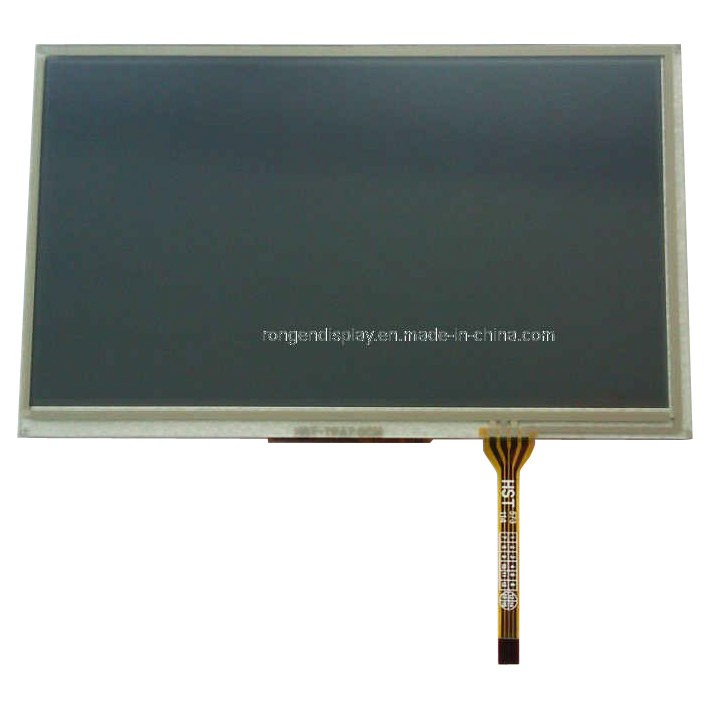

7inch High Brightness TFT LCD Screen with Touch Panel

7inch High Brightness TFT LCD Screen with Touch Panel
Price: US $ 15/Piece
Trade Terms: FOB
Min Order: 500/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: AT070TN93T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Small-sized LCM
Touch Screen Type: Resistive
Type: LCM
Response Time: 25ms
Viewing Angle: TN+FILM
Display Technology: TFT
DOT-Matrix Graphic LCD Module Type: Row/Column-Driven Control Type
LCD Drive Mode: Multiplex Drive LCD Module
Customized: Customized
Digital LCD Module Type: TFT LCD

Product Description

Brand: RONGEN
HS: 8528511000
Spc: CMO 7inch TFT LCD Panel with TP 800x480 400CD/m2

Specification:
Item No.: AT070TN93T
Screen Size: 7inches
Resolution: 800(RGB)x480
Luminance: 400CD/m2
Aspect Ratio: 16: 9
Contrast Ratio: 500: 1(Typ. )
Active Area: 154.08x85.92mm
Response time(ms): 10/15(yp. )(Tr+Td)
Viewing Angle: T/B/L/R 50/70/70/70
Operation Temperature(° C): -30 ~ 85 ° C
Storage Temperature(° C): -30 ~ 85 ° C
Electrical Interface(data): Parallel RGB (1 CH, 6/8-bit)
Light Source: 27LEDs
RONGEN have concentrate on designing and manufacturing display products for more than 12 years.

Wecan offer monochrome TN/STN, CSTN, TFT and OLED displays and other display components.

Our transflective TFT displays are not only viewing but support operating under direct sunlight, if you are looking for sunlight readable TFT displays, our product is your best choice. And our IPS and LTPS panels are wide viewing angles, they are widely used in automotive electronics, military applications and medical instruments.

Further more, each unit bears SGS, TUV and RoHS marks.

The innovative flat panel display and products- provided by our elite team- can keep pace with such a fast-changing global marketplace. We can also meet your display specifications, and satisfy your individual request. The most competitive and satisfying products have won us high reputation.

Now RONGEN Display Co., Ltd is becoming a qualified supplier of many noted companies. Professional technical support and good service is our permanent commitment for you.
