| Prod Model: |
IPC-501C-1.0MP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
1280*720 |
| Wireless: |
by WiFi |
| Function: |
Wireless, with Microphone, Speaker and TF Card Memo |
| Use: |
for Home Security, Office, Shops, etc |
| Night Vision Distance: |
10 Meter |
| Technology: |
Wireless |
| Style: |
Mini Camera |
| Type: |
IP Camera |
| Sensor: |
CMOS |
| HDMI Format: |
720P |
| Kind: |
Autofocus Lens |
| Certification: |
SGS |
| Feature: |
P2p |
| Effective Distance: |
10-30m |
| Sensor Size: |
1/4 inch |
| Horizontal Resolution: |
720p |
| Remote Control: |
P2p Remote Access |

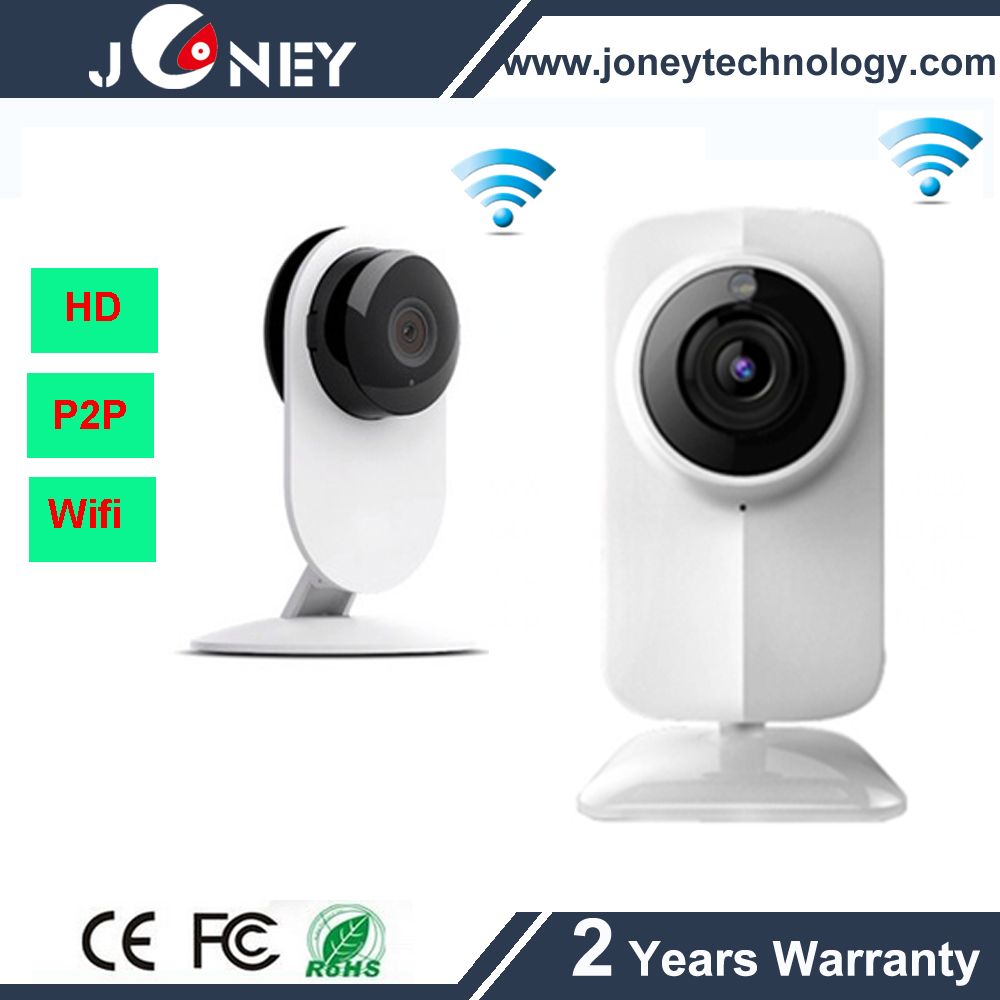

Product Description
Features:
*1.0 Megapixel CMOS Sensor with IR Cut Filter
*1280*720@30/25fps NTSC:30fps,PAL :25fps
*Len:Board Fixed 4mm
*IR Leds:12 pcs x F5
*IR Range:10 meters
*Pan/Tilt Rotation range Horizontal 270,Vertical 120
*Intelligent Motion detection
*Two way audio
*SD Card slot
*Wireless 802.11b/g/n
*Support more than 20 languages & Mobile Phone View
*Free CMS&DDNS
Specification:
Model | IPC-501C-1.0MP |
| Camera |
| Image Sensor | 1/4-inch 1.0 Megapixel CMOS, include 4mm fixed lens |
| Effective Pixels | 1280(H)×720(V) |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/10000s |
| Min. Illumination | Color: 0. 1Lux, B/W: 0.005Lux |
| S/N Ratio | >50dB |
| Camera Features |
| Max. IR LEDs Length | 10 Meters |
| Day/Night | Auto / Color / B/W |
| Backlight Compensation | BLC |
| White Balance | Auto |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D |
| Privacy Masking | N/A |
| Lens |
| Focal Length | 4mm fixed lens |
| Max Aperture | F1.6 |
| Angle of View | 81.1°-26.2° |
| Mount Type | MTV mount (Interchangeable Lens) |
| Video |
| Compression | H.264 / MJPEG |
| Frame Rate | Main Stream | 1280*720 25fps |
| Sub Stream | VGA 640*360 25FPS |
| Bit Rate | 128Kbps~8Mbps,Supports CBR/VBR |
| Audio |
| Compression | G.711 |
| Interface | 1/1 channel In/Out |
| Network |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , FTP , NTP , PPPOE , SMTP , UPNP |
| ONVIF | ONVIF Ver. 2.3 |
| Max. User Access | 10 users |
| Smart Phone | iPhone, iPad, Android |
| Wireless protocols | 802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2 |
| General |
| SD Card slot | Max up to 64GB |
| Power Supply | DC12V |
| Power Consumption | <6W |
| Working Environment | -10°C~+60°C, 10%~90% |
| Approvals | CE FCC RoHS |
Shenzhen Joney Security Technology Co., Ltd is specializing in developing, manufacturing and marketing of security products.
Our products include CCTV and access Control, such as CCTV cameras, DVR, IP cameras, NVR, Analog HD cameras like HD-CVI, AHD and HD-SDI.
Access control products such as biometric devices, access control system, fingerprint locks and Home alarm system.
Meanwhile we are the Agent for some top level brands in China like Dahua, Hikvision and ZK Software, with large quantity in stock to make fast delivery.
Established in 2009, We serve more than 300 customers worldwide, 2 factories with a total area of 1500 square meters, Key components from Sony, Sharp, Panasonic and LG.
100QC inspectors ensure the all of our items bear CE, FCC and RoHS marks, 8 QC inspection steps before shipping, 18 months warranty.
20 engineers and 50 technicians will work on your OEM/ODM requirements and after sale service.
500-piece orders are shipped within 7 working days.
To benefit from our excellent service and products, Please contact us today.
