| Prod Model: |
BR700D20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Outdoor |
| Feature: |
Support TV Function |
Product Description

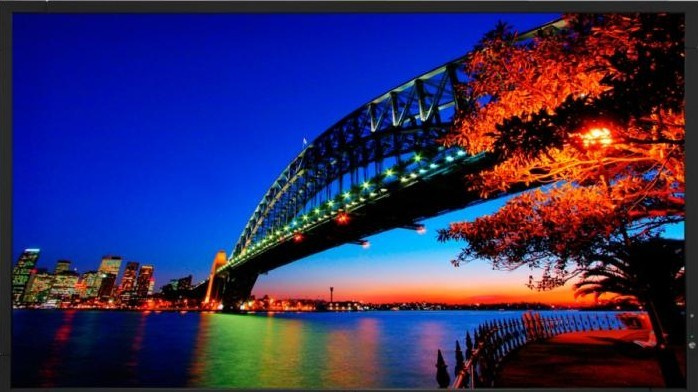

BR700D20 is a color active matrix liquid crystal display(LCD) that uses amorphous silicon TFT(Thin Film Transistor) as switching components. This model is composed of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 70.0"is 1920 x 1080 and this model can display up to 16.7 million colorswith wide viewing angle of 89° Or higher in all directions. This panel is intended to support applications to provide a excellent performance for Flat Panel Display such as Home-alone Multimedia TFT-LCD TV, Display terminals for AV application products, and Digital Information Display (DID).
Features
RoHS compliance (Pb-free)
High contrast ratio, High aperture ratio, High luminance
SPVA(Super Patterned Vertical Align) mode
Wide viewing angle (± 178° )
High speed response
Portrait / Landscape type compatible
Wide UXGA (1920 x 1080 pixels) resolution (16: 9)
Low power consumption
Direct Type LEDs(Light Emitting Diode Lamp)
DE(Data Enable) mode
LVDS (Low Voltage Differential Signaling) interface (2pixel/clock).
Model |
BR700D20 |
Active screen size |
70 inch |
Outline Dimension |
1630.0(H) x 952.0(V) x 83.6(D) mm(Typ. ) |
Active Area |
1549.44(H) x 871.56(V) mm |
Pixel Pitch |
0.807 mm x 0.807 mm |
Pixel Format |
1920 horiz. by 1080 vert. Pixels. RGB stripe arrangement |
Display Colors |
8bit 16.7M colors |
Luminance, white |
2000 cd/m2(Typ. Center 1 point) |
Power Consumption |
1260.5 W |
Watts(Typ. ) (PDD=12.5W PBL=1248W) |
Weight |
47Kg (Typ. ) |
Display operating mode |
Transmissive mode, normally black |
Surface treatments |
Hard coating (3H), Anti-glare treatment of the front polarizer |
Berise Technology (Shenzhen) Limited, is a Hi-Tech company specializing in producing High Brightness LED Backlight LCD, optics binding, LCD panel cutting technology and the other general reinforcement technique etc.
Products are mainly divided into two categories: outdoor advertising and military reinforcement displays
In outdoor display, The products of our company all used the top High Brightness LED backlight module and DID splicing techniques breaking the monopoly of foreign technology and making the popularity of home-based LED possible.
Now we have the patents in controlling the core technologies of the backlight module. We all inherit the management philosophy of "Rise in Shenzhen, Service the global"and innovate continuously for excellence in technique and service. We are making every effort to become the most powerful and the most effective enterprise in the LED backlight field. Because of the hi-quality and high-rank displaying effect, our products received a considerable acclaim. And we also have estabished a good partnership with some major industry, e. G. TCL and Zhuhai Satow ect
In military reinforcement display products, after years of development, has a number of patented technologies, products cover a wide range, meet the requirements of multiservice to display products
optics binding and optical coating technology, can greatly improve the visibility of the display product in the sun, product vibration resistance and the characteristics of low pressure, at the same time can prevent the inside the product of the fog; Independent research and development of the LCD panel cutting technology, and is not restricted by space, according to the customer request custom display screens of all sizes; LED backlight technology, expanding the product color gamut space, improves the performance of vibration resistance, improves temperature characteristics of the product LED; high-performance, high-bandwidth military board technology, adopted FPGA research and development of IP technology, which can realize the 2 D / 3 D graphics generation, it can realize pip, pop, color key, overlay drafting, Image fusion such as a variety of display mode, can support up to 4090 * 2048 resolution
