| Prod Model: |
BR700D15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Specifications:

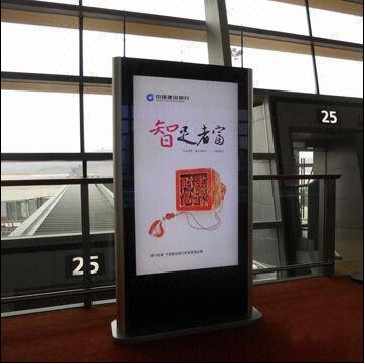

Type: advertisement display
Size: 70 inches
Resolution: 1920 x 1080 (9:16)
Color: 16.7M
Viewing angle: 178° (CR≥ 10)
Response time: 8ms (G-to-G)
Contract ratio: 2000:1
Pixel pitch: 0.807 (H) x 0.807mm (V)
Display area:1549.44 (H) x 871.56mm (V)
Interface: USB x 1. RJ-45x1
Power consumption: 720W
Power: AC 220V (+/-10%), 50/60Hz
Energy efficiency: ≥ 1.05cd/W (complies with the national energy efficiency standards level I)
Operating temperature: 0 to 40°C
Operating humidity: 20 to 80% RH (non-condensing)
Frame material: aluminum profile +glass+ galvanized board
Dimensions: 2120 x 1234 x 420mm
Net weight: 200kg
Gross weight: 250kg
Attachment: AC power cord (3 pins, 3M), control wire, operation manual, guarantee card, certification, drive CD
Berise Technology (Shenzhen) Limited, is a Hi-Tech company specializing in producing High Brightness LED Backlight LCD, optics binding, LCD panel cutting technology and the other general reinforcement technique etc.
Products are mainly divided into two categories: outdoor advertising and military reinforcement displays
In outdoor display, The products of our company all used the top High Brightness LED backlight module and DID splicing techniques breaking the monopoly of foreign technology and making the popularity of home-based LED possible.
Now we have the patents in controlling the core technologies of the backlight module. We all inherit the management philosophy of "Rise in Shenzhen, Service the global"and innovate continuously for excellence in technique and service. We are making every effort to become the most powerful and the most effective enterprise in the LED backlight field. Because of the hi-quality and high-rank displaying effect, our products received a considerable acclaim. And we also have estabished a good partnership with some major industry, e. G. TCL and Zhuhai Satow ect
In military reinforcement display products, after years of development, has a number of patented technologies, products cover a wide range, meet the requirements of multiservice to display products
optics binding and optical coating technology, can greatly improve the visibility of the display product in the sun, product vibration resistance and the characteristics of low pressure, at the same time can prevent the inside the product of the fog; Independent research and development of the LCD panel cutting technology, and is not restricted by space, according to the customer request custom display screens of all sizes; LED backlight technology, expanding the product color gamut space, improves the performance of vibration resistance, improves temperature characteristics of the product LED; high-performance, high-bandwidth military board technology, adopted FPGA research and development of IP technology, which can realize the 2 D / 3 D graphics generation, it can realize pip, pop, color key, overlay drafting, Image fusion such as a variety of display mode, can support up to 4090 * 2048 resolution
