| Prod Model: |
CN8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| RFID: |
Mifare, Desfire, Mifare Plus, Felica, ISO14443b |
| Biometric: |
Fast Speed Biometric 1:1, 1:N |
| Power: |
Poe,Alternative: Ext. Power Supply DC 9-24V; Li-on |
| Screen: |
7" Touch Screen |
| Memory: |
2GB Nand Flash + 256MB Mobile DDR Sdram |
| Camera: |
Embedded 2.0m Pixel Digital Camera |
| Door Phone: |
Microphone, Door Bell, 2W/8 Ohm Speaker |
| Operation System: |
Linux, Android (Option) |
| Usage: |
Access Controller, Attendance |
| Communication Mode: |
TCP/IP(RJ45), RS232, RS485, USB, Wireless, WiFi |
Product Description

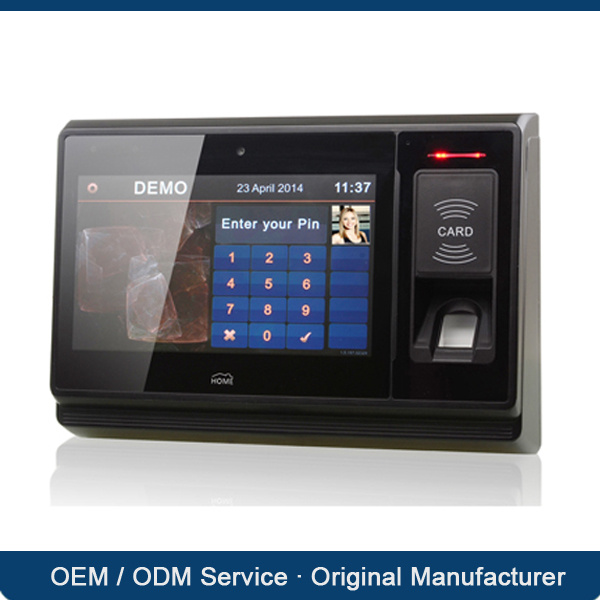

UTouch is All-in-One Android/Linux Terminal with 7.0 inch capacitive Touch screen for intuitive and comfortable user experience. The reliable and smart terminal benefits to powerful RFID options with NFC supporting peer to peer mode, MIFARE, MIFARE DESFire EV1, MIFARE Plus, HID iCLASS, LEGIC compatible, combined with high fast & accurate fingerprint authentication as option. IP & PoE integrated terminal connects directly to the IP network for easy and low cost network system, support WiFi, 2G/ 3G flexible for wireless communication on any occasion, ideal for access control, time attendance, workforce management, membership, e-payment etc.
UTouch flexible Access Control, which combines multiple smart and advanced secure identification methods, ensure the authorized user gain access right at the right time according to their job role and areas that they need to access, to avoid of uncontrolled people movement. UTouch Real Time control, with automate real-time data collection, that makes system visible at all time and reports who and when open a particular door, who exactly is on site, and track the exact working time.
Identification Technology
NFC, RFID Reader, Biometric fingerprint identification
Android Terminal with Intuitive Touch Screen
Linux, Android OS, 7'' Touch Screen, Camera, Infrared Sensor, SD Slot
Wire/Wireless Communication
WiFi, 2G/3G, TCP/IP, USB, UART, Wiegand etc.
Power Management
Build-in Battery, DC power, PoE
Software
BoneID Net is PC intelligent Access Control software based on RFID & biometric authentication to control network of Civientec devices. It's easy operation suitable for small-to-large sized organizations. BoneID Express is time attendance software module integrated into BoneID Net. It can be simply used by one-click solution to literally get complete monthly T&A report for all uses
User Management
Unlimited User Archive Management with automatic system to avoid manual error and reduce administrative cost
User Archive File Management
Smart Card Authorization & Management
Fingerprint Enrollment & Authorization
Easily add, transfer department
Device Management
Multi Level Setting for Region, Sites, Devices and Access Rights via TCP/IP, WiFi, 2G/3G easy for multiple branches in different locations and small-to-large sized organizations.
Configure common terminal settings in network
Network Devices Center Management ease user to register in any devices in total system.
Device Safety Monitor by SMS real-time alarm system
Access Management
UTouch offer fully integrated security solution combine NFC mobile phone, RFID smart cards, secure pin code and biometric identification for physical access control to avoid of uncontrolled people movement and ensure the safety and security of people and property.
With Flexible Access Control, user can be given access rights on a particular day or time
Visible at all time and reports
Time Management
UTouch Time Attendance system makes easy work to get the latest and most detailed activity tracking data and easily control working shift to improve workforce efficiency and productivity
Normal Time Management and Track working time
UTouch know how to calculate hours based on shift definition
Biometric identification and camera to judge the buddy punching
External Printer to print attendance report in real time
Time Records
UTouch is featured by Multiple Custom Reports. All the data collections can be fully customized meaning to create various reports with specific data of interest. Using this report creator you can define as many as you like report types for each report. Improve relation with labor using accurate and trustable method of work data management.
Fast speed to generate reports for thousands of workers in less than a minute
Visible at all time and reports
Attendance Printer
UTouch connect external printer to print attendance reports in real time.
Thermal Printer
RS232 port connection
| Technology | Fingerprint; 13.56MHz; 125KHz |
| RFID Standard | ISO14443A 4(part1-4), MIFARE®, MIFARE Plus®, MIFARE® DESFire® EV1, ISO14443B, Felica; EM125KHz, and HID iCLASS, LEGIC compatible cards(option) |
| ISO18092 NFC | ISO18092 Near Field Communication |
| Operating Voltage | Alternative: ext. power supply DC9-24V; Power over Ethernet(PoE option), IEEE802.3at; Li-ON battery option |
| CPU | Up to 800MHz –1GHz |
| Memory | 256MB SLC Nand Flash + 256 MB mobile DDR |
| Camera | Embedded 2 OM Pixel Digital Camera |
| Door Phone | Microphone, 2W/8 OHM Speaker(controllable volume) |
| Fingerprint | 1:1 mode; 1:N mode(1:1900; 1:9500 on request) |
| Communication Interface | TCP/IP(RJ45), RS232/RS485, USB and wireless WIFI, GPRS,3G |
| SD card | One Secure Digital card slot |
| Operation System | Android, Linux |
CIVINTEC Global is the world leading R&D and manufacturer of reader devices, terminals and systems, specialized in NFC technology, 13.56MHz contactless smart card, biometric and embedded OS technologies. CIVINTEC Global is an innovative product supplier of smart card and security solutions for various markets which include physical access control, time attendance, club membership, personal identification, public transportation, e-payment etc.
Based on our strong and experienced R&D team which is composed of creative and motivated professionals, Civintec global is always dedicated to provide market oriented and reliable high-tech products to benefit our customers.
CIVINTEC Global is committed to enhancing customer value by running our Partner Program since 2006. Till today, we become the main supplier of OEMs, system integrators, application developers and provide products from R&D to production around the world and is proud of being the supplier of some stock listed enterprises. We are proud to be working with a worldwide network of partners from various market segments to achieve win-win business mode.
Involved technologie
ISO18092 Near Field Communication NFC
RF contactless Smart Card technology: 13.56MHz ISO14443A, ISO14443B, ISO15693, Felica
ISO7816 contact technology
Biometric
Wireless Communication – WiFi, GPRS, 3G
Embedded OS with Professional Software
Product Range
13.56MHz&NFC OEM module/readers
Access Control & T/A terminals and systems
Handheld terminals and systems
Multi-purpose Terminals and systems
Biometric terminal and systems
Embedded OS with Professional Software
CIVINTEC Global has built strong cooperation with several global market leaders, including NXP, HID Global, LEGIC, Infineon, TI, Inside, etc.
