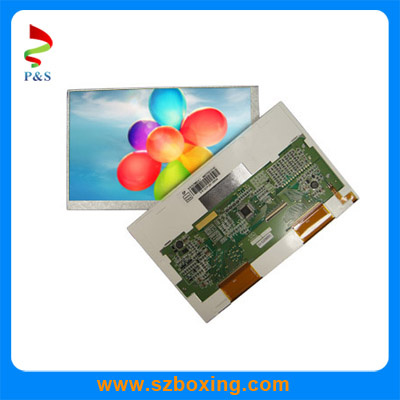

| Prod Model: |
AT070TN07 V. D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7.0 Inches |
| Resolution: |
234X 480 |
| Brightness: |
200CD/M2 |
| Outline Dimension: |
164.9(W) × 100.0(H) × 5.7(D) |
| Active Area: |
154.08(W) × 86.58(H) |
| Contrast Ratio: |
300 |
| DOT Pitch: |
0.107(W) × 0.370(H) |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
Product Description
1. Application area
Mobile phones and PDAS/consumer electronics/automotive/ telecoms and data transfer/medical instruments/security management /signs and display/point of sale, EPOS /Energy control/amusement and gambling machines/white goods, GPS navigator
2. Company Advantage
1). Small MOQ accepted.
2). Competitive price and short lead-time.
3). ISO9001 and RoHS certificated factory supplied.
4). TFT LCD module, touch panel, PCB with SMT/COB solutions.
3. Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
|
Optical Specifications |
|
Item |
Symbol |
Condition |
Values |
Unit |
|
Min. |
Typ. |
Max. |
|
Viewing angle(CR≥10) |
θL |
Φ=180° |
55 |
60 |
– |
degree |
|
θR |
Φ=0° |
55 |
60 |
– |
|
θT |
Φ=90° |
35 |
40 |
– |
|
θB |
Φ=270° |
55 |
60 |
– |
|
Contrast ratio |
CR |
|
250 |
300 |
– |
– |
|
Color Chromaticity |
WX |
0.26 |
0.31 |
0.36 |
– |
|
WY |
0.28 |
0.33 |
0.38 |
– |
|
Luminance |
L |
150 |
200 |
– |
cd/m2 |
|
Absolute Max.Rating |
|
|
|
|
|
|
|
Item |
Symbol |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Power voltage |
VDD |
-0.3 |
– |
7 |
V |
– |
|
Operating temperature |
TOPR |
-30 |
– |
85 |
degree |
– |
|
Storage temperature |
TSTG |
-30 |
– |
85 |
degree |
– |
|
Backlight Driving Conditions |
|
|
|
|
|
|
Item |
System |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Voltage for LED Backlight |
VL |
8.4 |
9.3 |
10.5 |
V |
|
|
Current for LED Backlight |
IL |
72 |
80 |
88 |
mA |
|
|
LED Life time |
– |
20,000 |
– |
– |
Hr |
|
