| Prod Model: |
YF1 Split Air Conditioner |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Refrigerant: |
R410A |
| Compressor: |
Rotary |
| Type: |
Inverter Air Conditioner |
| Usage: |
Room |
| Indoor Machine Noise: |
36-49dB |
| Cooling/Heating: |
Cooling/Heating |
| Certification: |
UR |
| China Energy Efficiency Standard: |
Level 1 |
| Capacity: |
27000-48000 BTU |
| Power Source: |
Electrical |
| Power Type: |
DC |
| Condition: |
New |
Product Description

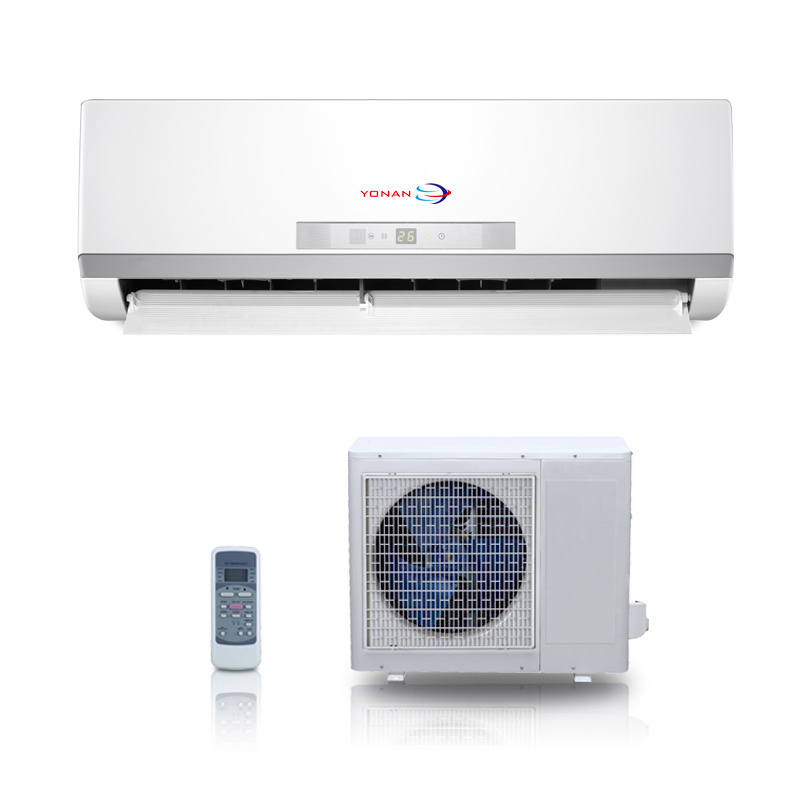

7 Star Rotary Compressor Cooling And Heating Split Air Conditioner
Feature
1. 7 star split air conditioner for Saudi Arabia Market
2. Rotary compressor
3. T1 or T3 working condition for optional
4. Used the known compressor with best quality
5. Automatic restart function
6. Self-diagnosis and auto-protection
7. Intelligent defrosting
8. Independent de-humidifying
9. 5 years warranty for compressor, and 2 years for complete unit
10. 1% free spare part of total amount
Specification
Power supply |
| Ph-V-Hz | 220-230V~ 60Hz, 1Ph |
| Cooling | Capacity (T1/T3) | Btu/h | 29012/24720 |
| Input (T1/T3) | W | 2454/2944 |
| Rated current (T1/T3) | A | 10.78/12.94 |
| EER (T1/T3) | W/W | 11.82/8.40 |
| Heating | Capacity | W | 8631 |
| Input | W | 2390 |
| Rated current | A | 10.51 |
| COP | W/W | 3.61 |
| Moisture Removal | L/h | 2.6 |
| Max. input consumption | W | 3800 |
| Max. current | A | 19.1 |
| Compressor | Model |
| PA215G2CS-3KUM |
| Type |
| ROTARY |
| Brand |
| GMCC |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 1100/990/800 |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 50/47/42 |
| Outdoor air flow | m3/h | 4000 |
| Outdoor noise level | dB(A) | 60 |
| Refrigerant type | g | R410A/2860g |
| Design pressure | MPa | 4.8/1.5 |
| Connection wiring |
| 3x2.5+3x0.75(Optional) |
| Plug type |
| 3x2.5 |
| Thermostat type |
| Remote Control |
| Operation temperature | ºC | 17~30 |
| Room temperature | Indoor(cooling/ heating) | ºC | 17~32/0~30 |
| Outdoor(cooling/heating) | ºC | 18~52/-7~24 |
| Application area | m2 | 35-58 |
| Qty'per 20' /40' /40'HQ |
| 48/100/115 |
