| Prod Model: |
SMS0408V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Content: |
4 Numbers with Decimal Point+1 Time Separator |
| External Size: |
72.5*35.4 Mm |
| Backlight Color: |
White |
| Type: |
LCM |
| Usage: |
Small-sized LCM |
| Display Technology: |
Va Full-Transmissive Negative Display Va) |
| Viewing Angle: |
6 O'clock View Angle |
Product Description

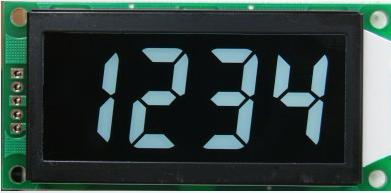

Segment display(SMS0408V)
Main technical data: Display content: 4 numbers with decimal point+1 time separator
Operating voltage: 2.7~5.5V
The color of LED: White
Operating current: 20uA(3.0V), 300uA(5.0V)
The current of LED: 20mA
Character high: 18.0mm
Environment relative humidity: <85%
View angle: 6: 00
Operating temperature: -20~+60° C
Display mode: Full-transmissive negative display VA)
Storage temperature: -30~+70° C
Interface way: Two-wire serial interface
Welcome customers to sample custom production.
Factory direct sales LCD display in varietydisplay color and size.
We can also design and manufacture the LCD panel of TN, STN,
FSTN, color STN and some other special types, as well as the LCD
Module of COB, COF, TAB and COG.
