| Prod Model: |
BR-704Ws |
| Brand Name: |
Brvision |
| Place Of Origin: |
Guangdong, China(Mainland) |
| Type: |
Reverse System |
| Voltage: |
DC 12V |
| Warranty: |
12 Months |
| Certificate: |
Ce,FCC,RoHS |
| Model Number: |
Br-Tqs7001 |
| Installation Position: |
Sides of Vehicles/Rear /Front View |

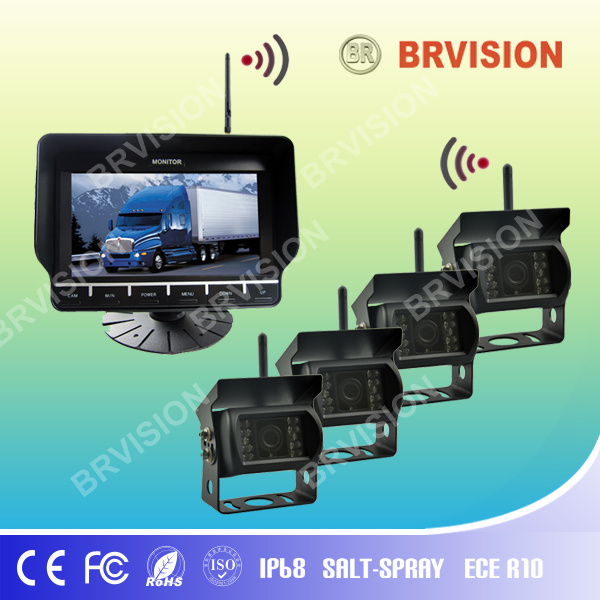

Product Description
Monitor Specification:
. Screen size: 7 inch new TFT panel
. Aspect Ratio: 16:9 image
. Input: 4-way video input with 4 reversing cable
. System: PAL and NTSC auto switching
. Resolution: 800 x R.G.B x480
. Brightness: 450cd/m2
. Power supply: 9-36V DC
. Built-in speaker
. Operation Temperature: -30ºC~+70ºC.RH95% Max
. Storage Temperature: -40ºC~+80ºC.RH95% Max
Camera Specification:
. Image Sensor : 1/3" CMOS
. TV System: NTSC/PAL
. IP Rating: IP 68
. Vibration Rate: 10G
. Night Vision function: available
. Audio function: available
. Horizontal Resolution: 700TV Line
. Video Output: 1.0vp-p, 75Ohm,
. Minimum Illumination: 0.1LUX/F1.2
. Built-in Lens: f: 2.8mm
. Power Consumption: DC 12V (+/-10%)
. Lens Angle (Deg.): 120°
. Operation Temperature: -30ºC~+70ºC.RH95% Max
. Storage Temperature: -40ºC~+80ºC.RH95% Max
| Package Contents: |
| Item | QTY |
| Monitor | 1 |
| Camera | 1 |
| | |
| Monitor | |
| Technical Specifications: | |
| Operating Voltage: | 12-24Vdc |
| Aspect Ratio: | 16:9 image |
| Brightness (cd/m2): | 450 |
| TV System: | PAL or NTSC |
| Resolution: | 800x(RGB)x480 |
| Vedio input: | 4 channels |
| Built-in speaker | available |
| Mirror/Normal: | available |
| | |
| Camera | |
| Technical Specifications: | |
| Image Sensor | 1/3" CMOS |
| TV System: | NTSC/PAL |
| IP Rating | IP 68 |
| Vibration Rate | 10KG |
| Night Vision function | available |
| Audio function: | available |
| Horizontal Resolution | 700TV Line |
| Video Output: | 1.0vp-p, 75, |
| Minimum Illumination | 0.1LUX/F1.2 |
| Built-in Lens | f: 2.8mm |
| Power Consumption | <1W |
| Lens Angle (Deg.): | 0.5 lux |
| |
| Environmental Specifications: | |
| Operating Temperature: | -20ºC~+50ºC.RH95% Max |
| Storage Temperature: | -40ºC~+70ºC.RH95% Max |
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
