| Prod Model: |
PS070DWPN9027 V. 1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7 Inch |
| Resolution: |
800 X 3(RGB) X480 |
| Brightness: |
400 CD/M2 (Typical) |
| Operating Temperature: |
-30----85 Degree |
| Storage Temperature: |
-30----85 Degree |
| Contrast Ratio: |
500 |
| Wieght: |
150g |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Car Navigation |
| Response Time: |
10ms |
| Customized: |
Customized |
| Touch Screen Type: |
Resistive / Capacitive |
| Viewing Angle: |
70/70/50/70 Degree |
Product Description

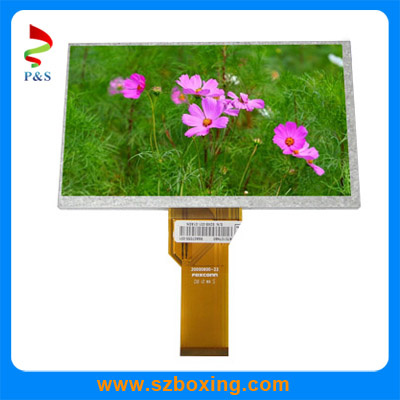

7" TFT LCD Module with Contrast Ratio 500 and Diagital Interface
1. Machnical Drawing
2.Related products recommendation
3. Applications
4. Company Advantage
^Small MOQ accepted
^Competitive price and short lead-time.
^ISO9001 and ROSH certificated factory supplied.
^TFT LCD module, touch panel, PCB with SMT/COB solutions
5. Packaging and Delivery:
1). Payment Terms: T/T, Paypal
2). Shipping : Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging : Packed in anti-static bags with foam box to ensure safety in transportation.
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
|
Mechanical Specifications |
|
Item |
Specification |
Unit |
Remark |
|
LCD Size |
7.0 |
inch |
|
|
Outline dimension |
164.9(W) ×100.0(H) ×5.7(D) |
mm |
|
|
Active area |
154.08(W) × 85.92(H) |
mm |
|
|
Dot pitch |
0.0642(W) × 0.1790(H) |
mm |
|
|
Resolution |
800 × 3(RGB) × 480 |
pixel |
|
|
Absolute Max.Rating |
|
Item |
Symbol |
Value |
|
|
Unit |
Remark |
|
Min |
Typ |
Max |
|
|
Supply voltage |
VDD |
-0.3 |
3.3 |
5 |
V |
– |
|
Operating temperature |
TOPR |
-30 |
– |
85 |
degree |
– |
|
Storage temperature |
TSTG |
-30 |
– |
85 |
degree |
– |
|
Backlight Driving Conditions |
|
Item |
System |
Value |
Unit |
Remark |
|
|
|
Min |
Typ |
Max |
|
|
|
Voltage for LED Backlight |
VL |
8.4 |
9.3 |
10.2 |
V |
|
|
Current for LED Backlight |
IL |
170 |
180 |
200 |
mA |
|
|
LED Life time |
– |
20,000 |
– |
– |
Hr |
|
|
Item |
Symbol |
Condition |
Values |
|
|
Unit |
|
|
|
|
Min. |
Typ. |
Max. |
|
|
Viewing angle(CR≥10) |
θL |
Φ=180° |
60 |
70 |
– |
degree |
|
θR |
Φ=0° |
60 |
70 |
– |
|
|
θT |
Φ=90° |
40 |
50 |
– |
|
|
θB |
Φ=270° |
60 |
70 |
– |
|
|
Response time |
TON |
Normal
θ=Φ=0° |
– |
10 |
20 |
msec |
|
TOFF |
|
– |
15 |
30 |
msec |
|
Contrast ratio |
CR |
|
400 |
500 |
– |
– |
|
Color Chromaticity |
WX |
|
0.26 |
0.31 |
0.36 |
– |
|
WY |
|
0.28 |
0.33 |
0.38 |
– |
|
Luminance |
L |
|
320 |
400 |
– |
cd/m2 |
|
Luminance uniformity |
YU |
|
70 |
75 |
– |
% |
