| Prod Model: |
BR-RVS7001 |
| Screen Size: |
7 Inch |
| System: |
PAL and NTSC Auto Switching |
| Resolution: |
480 X R-G-B X 234 |
| Power Supply: |
12-24V DC |
| Definition: |
420TVL |
| Chip: |
CCD |
| Waterproof Grade: |
IP68 |
| Interface: |
4 Pin Connector |
Product Description

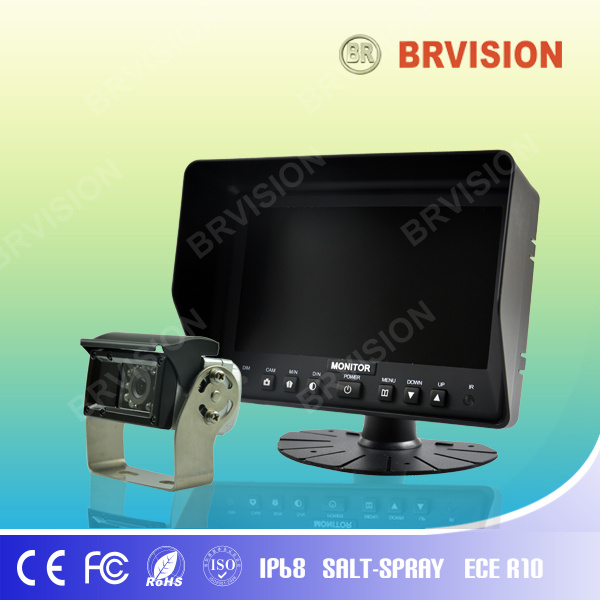

7inch TFT Digital Monitor and Heated Camera
Monitor Specifications:
- Screen size: 7-inch panel (diagonal length)
- Input: 2-way video input
- System: PAL and NTSC auto switching
- Resolution: 480 x R-G-B x 234
- Power supply: 12-24V DC
- Built-in speaker (optional)
- Heavy duty reversing
- OSD menu
- contrast, color, brightness adjustable
- View angle range: (left/right) 65 degrees (top) 40 degrees
(down) 15 degrees
BR-RVC16
Camera Specification:
- Image Sensor : 1/4" Sharp/Sony Color CCD
- TV System: N TSC/ PAL
- IP Rating: IP68
- Vibration Rate: 10G
- Night Vision function: 16pcs LED lamp
- Audio Function: Avilable
- Ef fective Pixels N: 510×492 pixels P: 500×582 pixels
- Horizontal Resolution: 420TVL
- Video Output : 1.0vp- p,75Ohm,
- Built-in Lens:2.8mm
- Wide angle: 120°
- Power Supply: 12V DC(+/-10%)
- Power consumption: <3W
- Silver Alluminium housing.
- Oper at i ng Temp: - 20C° t o +70C°
- Storage Temp: - 30C° t o +80C°
- Housing: Sliver/White/Black housing for option
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
