7 Inch GPS Navigation Digital Monitor System

7 Inch GPS Navigation Digital Monitor System
Price: US $ 110/Piece
Min Order: 1/Piece
Pay Type: T/T
Prod Model: BR-RVS7002-GPS
Display Type: Reverse Image
Alarming Distance: 2.5-0.35m
Probe Diameter: 18.8mm
Interface: S-Video
Shell Material: ABS Plastic
Function: Night Vision
Chip: CCD
Definition: 420tvl
Probe Number: 1/2/3/4

Product Description

Monitor Specification:

- Screen size: 7inch panel (diagonal length)
- Input: 2/4-way video input
- System: PAL and NTSC auto switching
- Resolution: 480 x R-G-B x 234
- Power supply: 12-24V DC
- Built-in speaker (optional)
- Heavy duty  reversing
- OSD menu
- contrast, color, brightness adjustable
- View angle range: (left/right) 65 degrees (top) 40 degrees
  (down) 15 degrees.

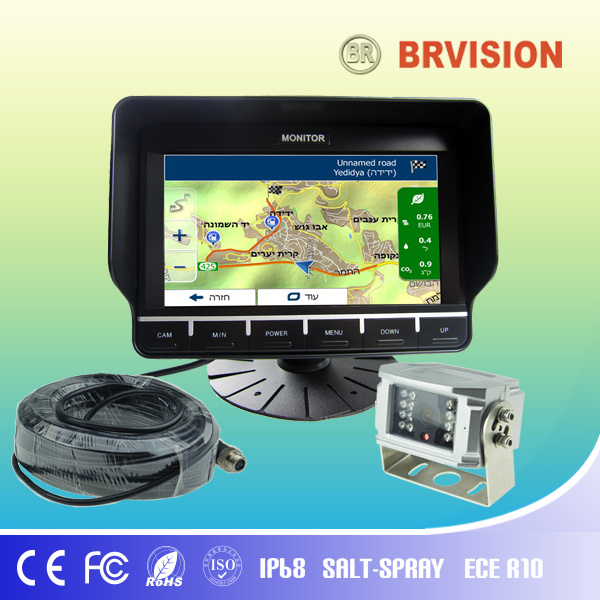

7"GPS navigation monitor, inserted Sygic map SC,, the second largest map soft ware in global. Accurate navigation, without errors. Fantastic selection for heavy duty and motor homes. This monitor can match with all kids of cameras.


Camera Specifications:

- Type High resolution backup camera
- Image Sensor 1/3" CCD
- TV System NTSC/PAL Optional
- Effective Pixels N: 510* Pixels P: 500*582 pixels
- Horizontal Resolution 420 TV Line
- Lens Angle 140°
- Minimum Illumination 0Lux (LED ON)
- IR Led 10pcs for night vision distance 45ft
- Audio function
- Operating Temperature -20°+70°RH95% Max
- Lens f=2.8mm
- Power Supply DC12V
- Waterproof Rate IP68
- Shell Material Aluminium alloy

PowerDC12V
IP GradeIP68
Case materialAluminium alloy
Image sensor1/3'CCD
Angle60/80/120/160
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products

Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.

Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.

It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.

BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.

We specialize in:

. Vehicle Rearview Camera(CCD or CMOS)

. Vehicle TFT LCD Monitor

. Wireless Transmitter and Receiver

. Surveillance Camera

. OEM and ODM Project

BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
