| Prod Model: |
TM7001-RVC016 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Shell Material: |
ABS Plastic |
| Display Type: |
Reverse Image |
| Interface: |
S-Video |
| Function: |
Night Vision |
| Definition: |
420tvl |
| Chip: |
CCD |
| Alarming Distance: |
2.5-0.35m |
| Probe Diameter: |
18.8mm |
| Probe Number: |
1/2/3/4 |
| Certification: |
Emark |
Product Description

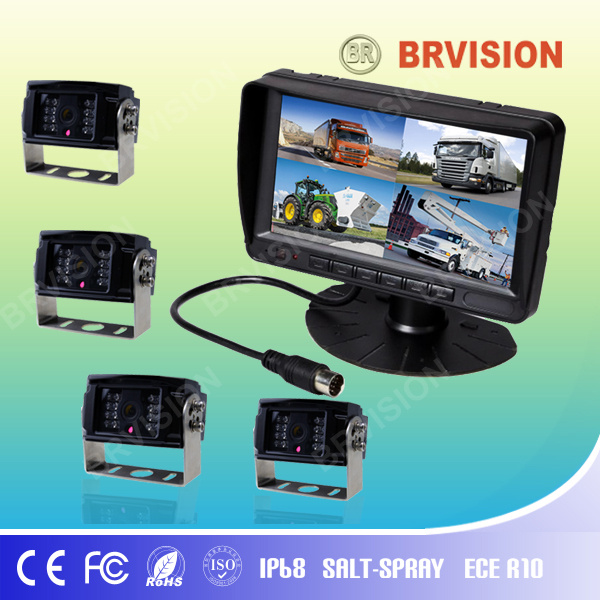

7''DVR recording monitor, with a power harness capable of connecting, and viewing simultaneously, four cameras. This monitor comes with a built in DVR allowing you to record what all cameras are viewing. A 4GB SD card comes included with this monitor which can record hours from all four cameras. For longer recordings, the monitor can handle up to a 128GB SD card.
| Item No. | BR-TMQ7002-DVR |
| Monitor | 7'' inch recording monitor, support 128GB SD card |
| Image | 16:9 |
| Color system | PAL/NTSC(selectable) |
| Resolution | WSVGA 1024 |
| horizontal | 600 vertical pixel |
| Power requirement | 12/24V DC |
| Language | 9 languages for selection |
| Power consumption | 5W |
| Dimension | 261 (L) x 177 (W) x 70 (D) |
| Operating temperature | -30° to +70° |
| Storage temperature | -40° to +80 |
| Certificate | CE,EMC,FCC,ISO9001:2008,E8 |
BRvision Sony high resolution camera 7'' lcd monitor mobile DVR exporter
7''DVR recording monitor, with a power harness capable of connecting, and viewing simultaneously, four cameras. This monitor comes with a built in DVR allowing you to record what all cameras are viewing. A 4GB SD card comes included with this monitor which can record hours from all four cameras. For longer recordings, the monitor can handle up to a 128GB SD card.
![]()
![]()
Camera Specifications:- Type High resolution backup camera
- Image Sensor 1/3" CCD
- TV System NTSC/PAL Optional
- Effective Pixels N: 510* Pixels P: 500*582 pixels
- Horizontal Resolution 420 TV Line
- Lens Angle 140°
- Minimum Illumination 0Lux (LED ON)
- IR Led 10pcs for night vision distance 45ft
- Audio function
- Operating Temperature -20°+70°RH95% Max
- Lens f=2.8mm
- Power Supply DC12V
- Waterproof Rate IP68
- Shell Material Aluminium alloy
| Power | DC12V |
| IP Grade | IP68 |
| Case material | Aluminium alloy |
| Image sensor | 1/3'CCD |
| Angle | 60/80/120/160 |
![]()
![]()
