| Prod Model: |
BR-TM1001-RVCO7 |
| System: |
PAL/NTSC |
| IP Rating: |
IP 68 |
| Color: |
Black |
| Brand: |
Brvision |
| Interface: |
Air Plug |
| Definition: |
420TVL |
| Chip: |
CCD |
| Waterproof Grade: |
IP68 |
Product Description

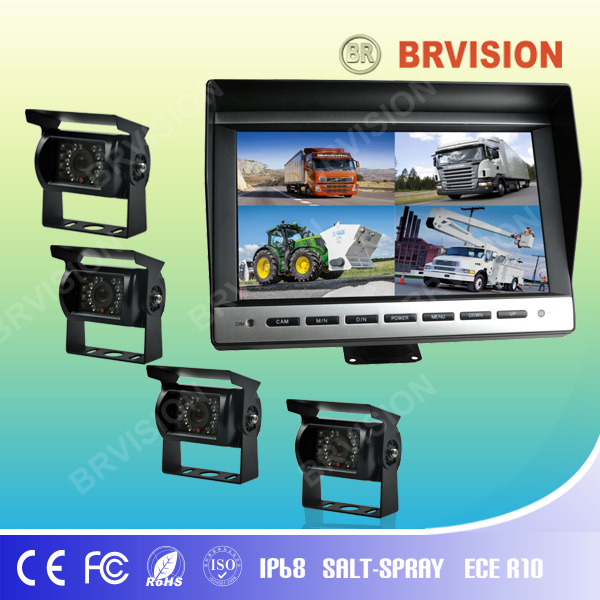

10.1" TFT built in control box System
. TFT Digital monitor,
. Input: 2-way video input,
. System: PAL /NTSC
. Heavy duty reversing
. Remote control, OSD menu
. contrast, color, brightness adjustable
. 450cdm high brightness panel
. Sillicone Button
. With remote controller
. Audio function
. MIRROR/NORMAL image optional
. Automatically turn on when the reversing gear is engaged
. With high-low voltage protection and short circuit protection
. Intelligent recognition to show camera video .
. With Mini Din connector
Spectial features:
High brightness LCD monitor,
High resolution LCD monitor
Auto dimming function
Surge protection
Can lock the button
A pleasure for fingers to touch - cozy buttons.
Camera scanning function
With high-low voltage protection and short circuit protection
Monitor was rigorous tested screen saturation, gray scale, color balance, therefore the images are more realistic, clear, and higher fidelity.
Ball camera for front view
. IP rating : IP68
. Image Sensors :1/3″CCD
. Resolution(TV lines) :480
. Lens Angle(Deg.) :120°
. No Audio
| Screen size | 10.1 inch |
| Resolution | 800*480*RGB |
| System | PAL/NTSC automatically |
| Audio and video | 4 video/1audio input Quad images,2/3/4 image optional |
| OSD menu | Language,brightness, contrast, trigger priority delay display setting |
| Luminance | 250cd/SM |
| Working temperature | -20°C-+70°C |
| Storage temperature | -30°C-+80°C |
| Voltage | 12V-24V DC |
| Connector | 4 pin or RCA |
| Accessories | user manual/remote controller/powr calbe/sunshade/scre |
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
