| Prod Model: |
PS070DWPM0524B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
7 Inches |
| Resolution: |
800(RGB)X480 |
| Luminance: |
400CD/M2 (Typical) |
| Interface: |
Ttl |
| Pin Number: |
40 Pins |
| Contrast Ratio: |
400 |
| Type: |
LCM |
| Display Technology: |
TFT |
| Usage: |
Small-sized LCM |
| Viewing Angle: |
TN＋FILM |
Product Description

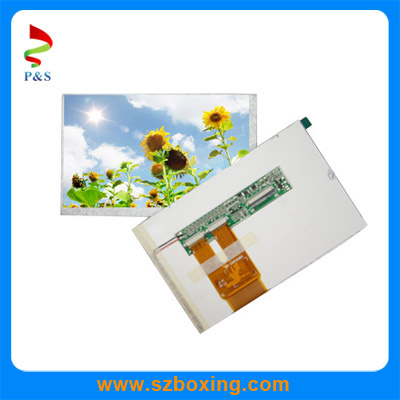

7 inch Color TFT LCD Module with 40 pin TTL inteface, 800(RGB)X480
1. Basic Specification
2. Machnical Drawing
3. Application
4. Company advantage
* Small MOQ accepted
*Competitive price and short lead-time.
*ISO9001 and ROSH certificated factory supplied.
*TFT LCD module, touch panel, PCB with SMT/COB solutions
5. Quality Control
Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
|
Item |
System |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Voltage for LED Backlight |
VL |
4.8 |
5 |
5.2 |
V |
|
|
Current for LED Backlight |
IL |
– |
400 |
450 |
mA |
|
|
LED Life time |
– |
10,000 |
20,000 |
– |
Hr |
|
|
Item |
Symbol |
Value |
Unit |
Remark |
|
Min |
Typ |
Max |
|
Supply voltage |
VDD |
-0.3 |
3.3 |
6 |
V |
– |
|
Operating temperature |
TOPR |
-10 |
– |
60 |
degree |
– |
|
Storage temperature |
TSTG |
-20 |
– |
70 |
degree |
– |
|
Item |
Symbol |
Condition |
Values |
Unit |
|
Min. |
Typ. |
Max. |
|
Viewing angle(CR≥10) |
θL |
Φ=180° |
60 |
70 |
– |
degree |
|
θR |
Φ=0° |
60 |
70 |
– |
|
θT |
Φ=90° |
50 |
60 |
– |
|
θB |
Φ=270° |
60 |
70 |
– |
|
Response time |
TON |
Normal
θ=Φ=0° |
– |
5 |
10 |
msec |
|
TOFF |
– |
11 |
16 |
msec |
|
Contrast ratio |
CR |
250 |
400 |
– |
– |
|
Color Chromaticity |
WX |
0.249 |
0.299 |
0.349 |
– |
|
WY |
0.278 |
0.328 |
0.378 |
– |
|
Luminance |
L |
300 |
350 |
400 |
cd/m2 |
|
Luminance uniformity |
YU |
70 |
75 |
– |
% |
