| Prod Model: |
BR-RVS7003L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor Size: |
1/4 Inch |
| Type: |
Vehicle Camera |
| Technology: |
Infrared |
| Remote Control: |
with Remote Control |
| Monitor Brightness: |
200cdm |
| Waterproof: |
IP68 |
| Viewing Angle: |
120degree |
| TV System: |
PAL/NTSC |
| Min Illumination: |
0.01lux |
| IR LEDs: |
18PCS |
| Interface: |
Air Plug |
| Chip: |
CCD |
| Waterproof Grade: |
IP68 |
| Definition: |
700tvl |

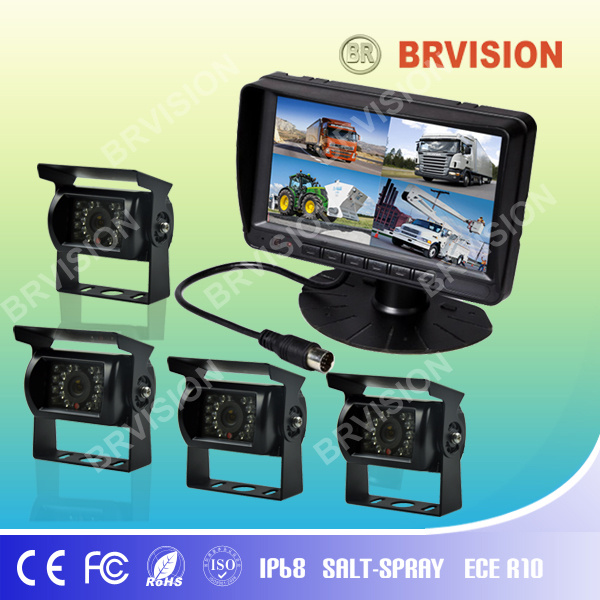

Product Description
Key Feature:
1.7" TFT LCD Monitor,
2.Four video input
3.IR rearview camera
4.When select the reverse gear, it automatically swith into video 2
5.20M extension cable
6.DC 12-24V for heavy duty
Monitor Specifications:
1.Screen size: 7-inch panel (diagonal length)
2.Input: 4-way video input
3.System: PAL and NTSC auto switching
4.Resolution:
5.Power supply: 12-24V DC
6.Built-in speaker (optional)
7.Heavy duty reversing
8.OSD menu
9.contrast, color, brightness adjustable
10.View angle range: (left/right) 65 degrees (top) 40 degrees
(down) 15 degrees
Camera Specifications:
1.Type High resolution backup camera
2.Image Sensor 1/4" CCD
3.TV System NTSC/PAL Optional
4.Effective Pixels N: 510x492 pixels P: 500x582 pixels
5.Horizontal Resolution 420 TV Line
6.Lens Angle 120°
7.Minimum Illumination 0Lux (LED ON)
8.IR Led 16pcs for night vision distance 45ft
9.Audio function
10.Operating Temperature -20°~+70° RH95% Max
11.Lens f=2.8mm
12.Power Supply DC12V
13.N.W 350g
14.Waterproof Rate IP68
15.Shell Material Aluminium alloy
| Item | Description |
| Operation system | Linux |
| GUI | Setup system parameters with remote controller |
| Security management | Support user password, supervisor password management; support encryption transmission |
| Video | Video input/output | 4-channel video input, 1-channel video output; 1.0Vp-p, 75Ω |
| Dual stream | Support |
| OSD | Time & date, vehicle ID, GPS etc |
| Compression | H.264. Hisilicon high performance processor is applied. |
| Preview function | Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function |
| Video frame rate | PAL: 100 frame/sec, up to 25 frame/sec for single channel
NTSC: 120 frame/sec, up to 30 frame/sec for single channel |
| Video resolution | CIF, HD1, D1,4D1 adaptive |
| Video quality | Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest |
| Video Bit Rate | CIF: 256Kbps ~ 1.5 Mbps, 8 levels of bit rate optional
HD1: 600Kbps ~ 2 Mbps, 8 levels of bit rate optional
D1: 800Kbps ~ 3Mbps, 8 levels of bit rate optional
4D1: 800Kbps ~ 4Mbps, 8 levels of bit rate optional |
| Audio | Audio input/output | 1-channel input; 1-channel output |
| Compression | G.726 |
| Recording | Storage media | H8000 support Hard Disk+SD card, S8000 support only SD card |
| File format/system | ASF/ FAT32 |
| Recording mode | Startup recording by default, support auto,timed, alarm & manual recording |
| Recording search | Search recording video files by time, type, storage device, etc. |
| Recording playback | Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time |
| Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time |
| Alarm | Alarm input | 5-channel I/O alarm input |
| Alarm recording | Pre-recording function, 15 seconds pre-recording of alarm, recording time after alarm can be adjusted in between 30 sec ~ 30 min |
| Alarm output | 2-channel alarm output |
| Storage space | Support the setting of remain storage space alarm function |
| Functional alarm | Overspeed alarm, gsensor alarm, voltage alarm,snapshot alarm, motion detection alarm |
| Communication interface | RS232, RJ45 10M/100M self-adaption Ethernet interface |
| Wireless transmission (optional) | Built-in 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional; Compatible with GPRS, EDGE; Built-in Wi-Fi module for optional; |
| GPS (optional) | Support external GPS module |
| Data remote transmission | Support 3G/Wi-Fi transmission, Wi-Fi priority transmission strategy, remote download; |
| PTZ control | Support PTZ control function by local remote controller or client software; |
| Parameter configuration | Support parameter configuration |
| G-sensor | Built-in |
| System upgrade | Support hard disk and SD card / Remote upgrade |
| Power supply & consumption | Power supply management | ACC startup/shutdown; Hard disk lock startup/shutdown; Delay shutdown; Timing startup/shutdown |
| Input voltage | DC:+8V ~ +36V |
| Output voltage | +12V@4*0.5A;[email protected] |
| Power-off protection | Patent UPS power-off protection technology for optional, ensure the integrality of recording data when accidental power failure occurs |
| Power consumption | Less than 10W in normal working state; less than 0.5W in standby mode |
| Working environment | Temperature | Normal: 0 ~ +60 degree
Hard disk pre-heating: -25 ~ +60 degree |
| Humidity | 10% to 95% |
| Dimension | H8000:142(W) x62(H) x123(D) mm, S8000:142(W) x36(H) x123(D) mm |
| Weight | H8000:net weight:1000g , S8000:net weight:550g |
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
