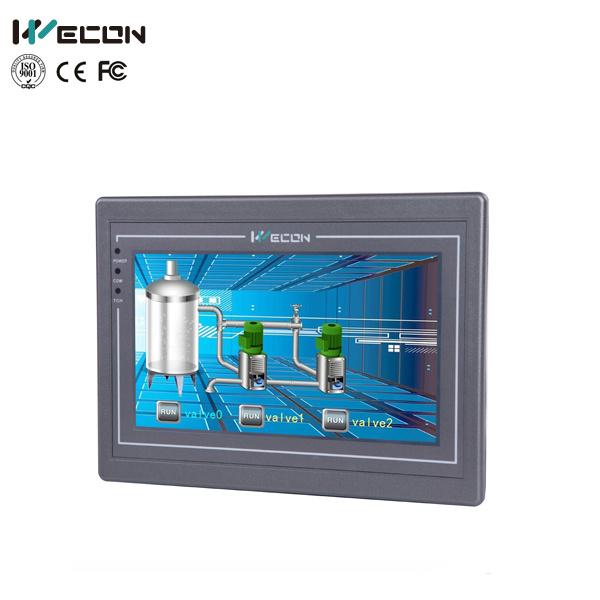

7 Inch Builtin Linux Touch Panel LCD Display with WiFi Supported (PI3070(LINUX))
| Price: |
US $ 186-204/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
PI3070(LINUX) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| CPU: |
Cortex A8 600MHz |
| Platform: |
Linux Qt |
| Storage: |
128m Ddriii/128m |
| Resolution: |
800*480 |
| Colors: |
16, 000 |
| Max.Brightness: |
300nit |
| Certificates: |
CE & FCC |
| Ethernet: |
Supported or WiFi |
| Screen Size: |
6-10'' |
| Touch Screen: |
Touch Screen |
| Installation: |
Wall-Mounted |
| Application: |
Industrial |
| CPU Type: |
Cortex A8 |
Product Description
Item | PI3070 | PI3102 |
OS | Linux QT |
CPU | Cortex A8 600MHz |
Display | Screen Size | 7 Inch | 10.2 Inch |
Resolution | 800 x 480 |
Brightness | 300 cd/m2 |
Contract | 500:1 |
Backlight | LED |
Backlight Life | 50,000 Hours |
ColorS | 16,000k colors (24bit) | 260k colors (18bit) |
Touch Screen | High precision four-wire resistive |
Storage | Flash | 128MB |
RAM | DDRIII 128MB |
SD card | Compatible |
Ports | USB Host | USB 2.0 x 1 |
USB Client | USB 2.0 x 1 |
Serial Port | 2 Serial Ports |
COM1: RS232/RS422/RS485 |
COM2: RS232/RS485 |
Ethernet | Optional |
CAN | N/A |
Power | Power Supply | 24V DC(12-28V DC) |
Power | <10W |
Power Isolation | N/A |
Withstand Voltage | 500V AC >1 minute |
Insulation Resistance | Upon 20MΩ 500VDC |
Seismic resistance | 10 ~ 25 Hz (X, Y, Z direction 2G/30 minutes) |
Dimension | Shell | ABS |
Dimension(mm) | 201.0W*146.6H*36.5D | 272.0W*190.5H*41.4D |
Mounting size(mm) | 192.0W*138.0H | 260.0W*179.0H |
Environment | Protection | IP65 (Front panel) |
Storage Temperature | -30ºC ~ 70ºC |
Working Temperature | -10ºC ~ 60ºC |
Humidity | 10 ~ 90%RH |
CE Certification | EN61000-6-2:2005, EN61000-6- 4:2007 Standard |
FCC Certification | FCC Class A |
Software | PI Studio |

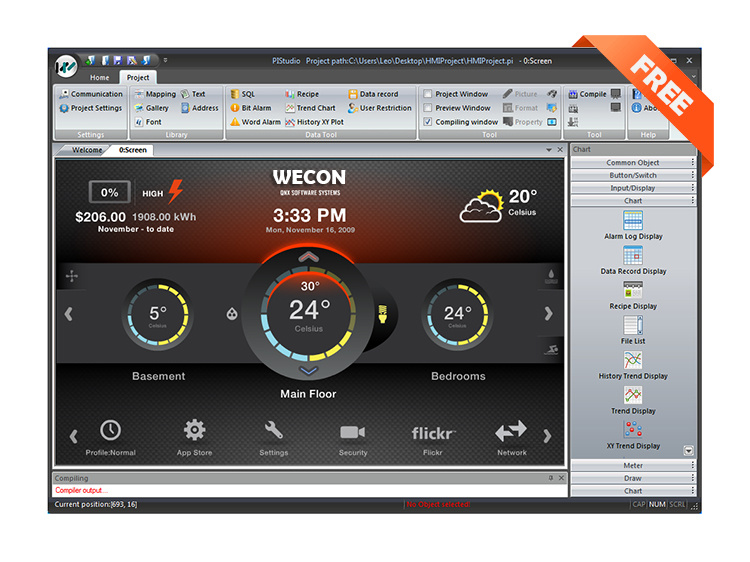

PROGRAMMING SOFTWARE
Wecon PIStudioU- Human Machine Interface (HMI) Programming Software
It has been designed as a programming tool for the Wecon HMI. PIStudioU allows displaying or editing multi language for HMI screen. And it is totally free for all its user.
PLC SUPPORT
Brand | Supported Model / Protocol |
Wecon | LX Series PLC / User-Defined Protocol |
Allen-Bradley | MicroLogix 1000/1200/1400/1500 SLC 5/03 5/04 5/05 PLC-5 DF1 CompactLogix 1769 series |
ABB | PM 571/581/591 |
Yudian | BoTa AIBus Protocol |
CANBus | Open CAN / CAN J1939 |
Crouzet | M3 FBD |
Danfoss | FC Series / GLP-NV |
Delta | DVP EH/ES/SS/EX/EH2/SV/SA/SC/SX Series |
Emerson | DKG2 / EC20 series 984 RTU Slave Modbus |
Fuji | SPB NB |
FB | FB RS484 Protocol |
Fatek | FBs-xx-MA / MC / MN FBe-xx-MC / MA FBn-xx-MCT |
Facon | FB Series RS232 (RS232-RTS) / RS485 Modbus |
IDEC | FC4A-C10R2 |
ICPDCS | I-7000 Series |
Koyo | K / Direct Series |
Keyence | KV Series |
LG | K120S / K300S / KCNet / XGB / LG-Bus ASCII |
Omron | HostLink / CPM1A / CQM1H / C / CP1E / CP1H / CS1 / CV / CJ1M / CS1H / E5 Z |
Panasonic | FP NEWTOCOL |
Mitsubishi | FX1N / FX2N / FX3U / Q02H / QJ71 / MELSEC Q / L02 / |
Shinko | CxT series / DCL / PC-900 |
Schneider | Electric Twido Modbus / Modicon Modbus RTU |
IMD H00 | IMD H00 ModBus RTU Slave |
TECO | TP01 / TP02 / TP03 Series |
Hollysys | LK / LM Modbus Tcp |
Yaskawa | NS600 Modbus / Sepvopack Sgdm Modbus / Memobus / MP Series |
Yokogawa | FA-M3 Series Modbus |
Regin | Regin PLC |
LG | K120S / K300S |
Inovance | Whole Series |
Modbus RTU | Slave / Master |
Modbus ASCII | Slave / Master |
Modbus TCP / IP | Slave / Master |
Vigor | Vigor PLC |

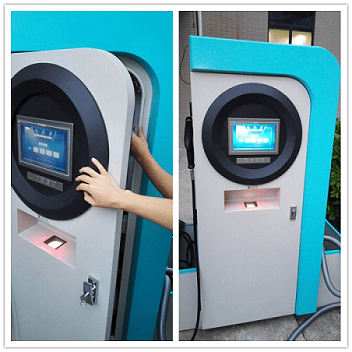

APPLICATIONS
WECON products are widely used in machinery and equipment, metallurgy, chemical, oil and other industries. They are favored by many foreign customers.
FACTORY
Chinese high technology company, headquartered in Fuzhou, Fujian. That independently develops, manufactures, supports and sells human machine interface (HMI), programmable logic controller(PLC).
WARRANTY & SHIPMENT
All of Wecon products are covered 18 month warranty.
Normally we ship out the goods within 5 days after payment received.
WECON Technology Co., Ltd. (commonly referred to as WECON) is a Chinese high technology company, headquartered in Fuzhou, Fujian. That independently develops, manufactures, supports and sells human machine interface, programmable logic controller. WECON products are widely used in machinery and equipment, metallurgy, chemical, oil and other industries. They are favored by many foreign customers.
WECON has attained significant development in human-machine interface products, its independent research and development of programmable controller (PLC) products began in 2010 officially came into the market in June 2012. The emergence of WECON LX series PLC means that the company has again mastered a core technology in the field of automation, indicating that the product lines of WECON began to expand horizontally.
With complete and regular production procurement channels, a rigorous and scientific quality management system, a simple and efficient mechanism for innovative research and development, we provide services to users wholeheartedly, as well as automation technologies and products with better quality, easier application and more reliable technologies.
Since its establishment, the company has gathered a large number of young and vibrant high-tech talents obtained a lot of core technologies in automation industry and product development, accumulated valuable experience in serving users, and formed many effective scientific management systems. All of these are the keys to our success.
