| Prod Model: |
OX-2818W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OS: |
Pure Android 4.4.4 |
| CPU: |
Rk3066 1.6GHz Cortex A9 Dual Core |
| RAM: |
1GB DDR3 |
| Flash: |
8GB |
| Screen: |
Capacitive Touch 800*480 or 1024*600 |
| OSD Language: |
English |
| Digital Media Format: |
Video CD, MP3, MP4, WMA, JPEG |
| Color: |
Black |
| Package Size: |
26*26*16cm/Gift Box |
| Package Gw: |
3.5kg/PCS |
| Combination: |
iPod |
| Placement: |
Headrest |
| Certification: |
SASO |
| Voltage: |
12/24V |
| Audio Output: |
Digital Optical Output |
| Video Output: |
HDMI |
Product Description

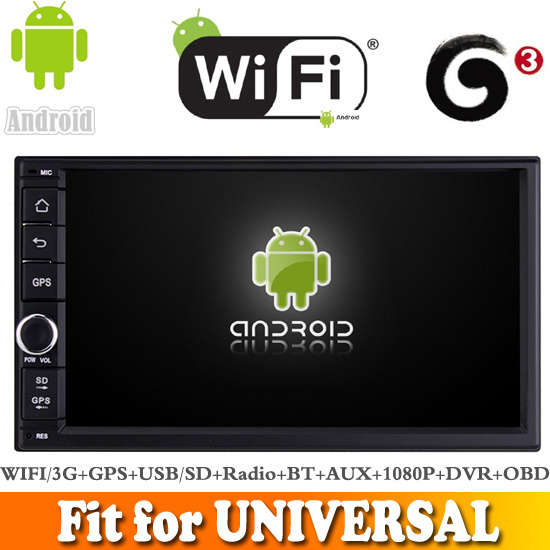

7 inch 2 din Pure Android 4.4 system car radio gps navigation universal car dvd player OX-2818W support GPS/WIFI/3G/OBD/BT/DVR
Description :
1.OS : Pure Android 4.4.4 system
2.CPU : RK3066 1.6GHz Cortex A9 dual Core
3.RAM : 1GB DDR3
4.Flash : 8GB
5.7 inch 2 inch Capacitive Touch screen
6.Screen : Capacitive Touch 800*480 or 1024*600
7. Functions : WIFI/3G+GPS+DVD+Radio+BT+AUX+1080P+USB/SD +DVR +OBD2 +Airplay+External MIC
Specifications:
| OS | Android 4.4.4 system |
| CPU | Rockchip 3066 Cortex A9 dual-core |
| RAM | SAMSUNG DDR3 1GB |
| Flansh | 8GB |
| Radio | FM/AM |
| GPS | SIRF III |
| Screen | Capacitive and multi-touch screen (Original Hanstar Screen ) |
| TFT drive IC | RK3066 |
| Loader | FORYOU DL-30 |
| Pick up | HITACHI 860XH |
| motor drive | MABUCHI |
| Amplifer IC | TOSHIBA 7384 |
| DVD decoder IC | Sunplus 8202VGQ |
| Radio IC | ST TDA7706 |
| Power supply | 4*50W |
| Bluetooth | Free Wing FM3507 |
| Video Decoder | 1080P HW |
| WIFI | Built in |
| DVR | USB Camera (PC Standard) |
| Multi media Parameters |
| Music Format | MP3,WMA,AAC,RM,LFAC etc |
| Video Format | MPEG-1/2/4,H264,H263,VC1,RV,RMVB,DivX, |
| Sorenson SparK,Spark,VP8,AVS Stream |
| Picture Format | JPG/BMP/JEPG/GIF/PNG |
| Radio Parameters |
| Frenqency Range | FM:76.0MHz-108.0MHz |
| Frenqency Range | AM: 522KHz-1620KHz |
| Country | China,Europe,Eastern,Europe,Russia,USA1,USA2,Japan |
| DVD Parameters |
| Vidio output range | 1.0V-1.2V(75Ω) |
| Compatible Disc | DVD/DIVX/MP4/MP3/MP2/VCD |
| Amplifer Parameters |
| Test Voltage | 13.8V |
| Max output power | 4*50W |
| GPS Parameters |
| Operation system | Android 4.4.4 |
| Support Map | Android 4.2.2 Map |
| Main Frenqency | 1.6GHz |
| Map Solution | 1024*600 |
| WIFI Parameters |
| Power supply | Vcc_3.3V |
| Suppoted Protocol/standard | IEEE802.11B/g/n compatible WLAN |
| Interface type | USB2.0 |
| Frequency | 2.4-2.484GHz |
| Modulation | OFDM/DBPSK/DQPSK/CCK |
| RF Power | 15dBM |
Pictures and details :
Option functions :
1. Analog TV
2. External ISDB-T Box
External DVB-T Box
External DVB-T2 Box
3. 3G Dongle
4. IPOD
5. Card with Map
6. DVR
7. OBD2
8. Rearview Camera
