| Prod Model: |
BZTN800871 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Dimension: 218.50*47.60/55.20*1.1mm: |
Tn Positive Transflective |
| Super Wide Temperature Range: |
Anti-UV |
| Application: |
Outdoor |
| Type: |
TN |
| Feature: |
Tn/Positive |
Product Description

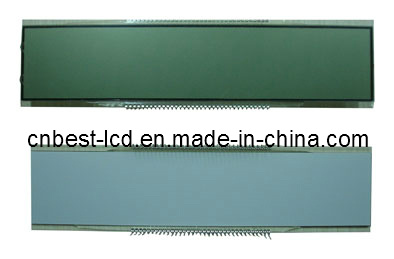

RoHS/REACH 7 Digits LCD Display For Fuel Dispensers(Oiling Machines)
LCD mode: TN/Positive/Transflective
Outline size: 218.50*47.60/55.20*/1.1mm
Viewing size: 211.50*40.60mm
Viewing Angle: 6 Oclock
Driving Method: 1/1duty, 1/1bias
Pitch: 2.54mm
Connector Type: Metal Pin (70)
Operate Temp: -30~80degree
Storage Temp: -40~90degree
Operating Voltage.: 5.0V
TN LCD Display for Fuel Dispenser LCD.
|
Usage |
For Fuel dispenser/ Oiling Machines |
|
LCD mode |
TN/Positive/Transflective Anti-UV |
|
Outline size |
218.50*47.60*55.20/1.1mm |
|
Viewing size |
211.50*40.60mm |
|
Viewing Angle |
6 O’ clock |
|
Driving Method |
1/1Duty 1/1Bias |
|
Pitch |
2.54mm |
|
Connector Type |
Metal Pin |
|
Operate Temp |
-30~80degree |
|
Storage Temp |
-40~90degree |
|
Power supply |
Power supply voltage(5.0V) |
|
RoHS& REACH Compliant Products |
